The IDM OMP4000-8E1-24 physically isolated Gigabit optical terminal utilizes 5G optical fiber transmission bandwidth (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup, offering 24 channels of 64K narrowband user access + 4E1 + 4 physically isolated wire-speed Gigabit Ethernet ports, with dual 2.5G optical fiber parallel transmission. Meanwhile, the IDM OMP4000-8E1-24 physically isolated Gigabit optical terminal features easy installation and is suitable for various application environments.

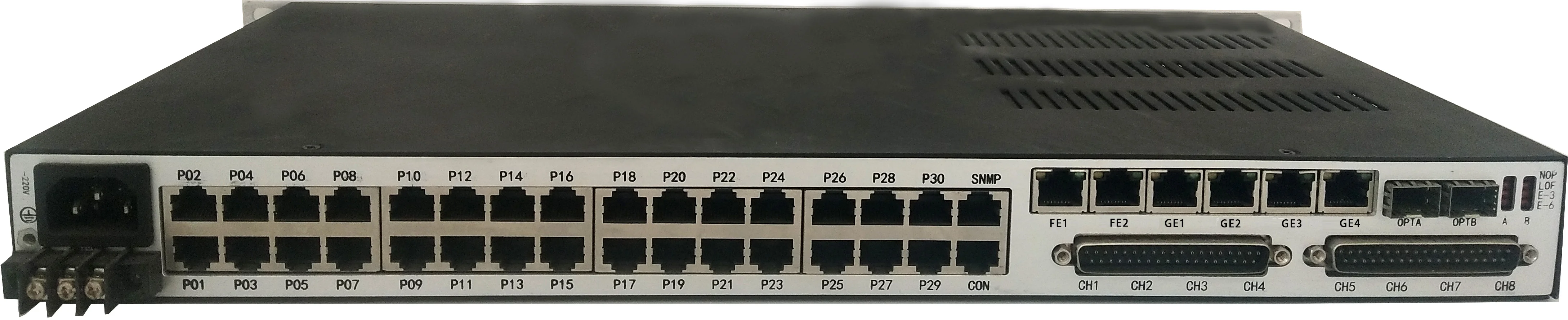

I. Overview
The IDM OMP4000-8E1-24 Ultra-Broadband Integrated Service Optical Multiplexer utilizes 5G optical fiber transmission bandwidth (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup, offering 24 channels of 64K narrowband user access + 4E1 + 4 physically isolated wire-speed Gigabit Ethernet ports, with dual 2.5G optical fiber parallel transmission. It provides a standard SNMP network management interface. Meanwhile, the device features easy installation and is suitable for various application environments.
II. Product Features
Standard 19-inch 1U chassis design for easy installation;
Provides 2 x 5G SFP optical interfaces with 1+1 optical port protection;
Supports up to 24 channels of 64K narrowband user access;
Provides 4 independent 1000M Ethernet interfaces;
Provides 8 groups of E1 interfaces supporting transparent transmission mode;
User interface cards support FXO/FXS, 2/4-wire E&M, RS232/RS422/RS485, 64K Co-directional, Magneto, High-fidelity audio, and X.50 services;
Provides a standard SNMP network management interface;
Equipped with comprehensive function control switches and alarm indication features.
III. Technical Specifications
Optical Interface
Interface Type | SFP | Fiber Mode | Single-mode (Multi-mode optional) |
Fiber Rate | 5Gbps | Wavelength | 1310nm/1550nm |
Optical Output Power | -1~-3dBm | Receiver Sensitivity | Better than-24dBm |
E1 Interface
Line Rate | 2048Kbps | Line Code | HDB3 |
Standard Protocol | SupportsITU-T G.703 | Impedance | 75Ω/120Ω |
Frame Structure | PCM30/31 | Mode | Transparent |
Ethernet
Interface Type | RJ45 | Transmission Rate | 10M/100M/1000M |
Standard Protocol | SupportsIEEE802.3 | Operating Mode | Full/Half Duplex/Auto-Negotiation |
FXO/FXS Interfaces
Audio Frequency Range | 300Hz~3400Hz | Impedance | Three-element Complex Impedance200Ω+560Ω//0.1μF |
Companding Rate | ITU G.711 A-law | Loop Current | 25mA/channel |
Power Supply and Power Consumption
Power Supply | DC-48V / AC 220V / Dual Power Supply | Power Consumption | ≤100W |
Environmental Conditions
Operating Temperature | 0ºC～40ºC | Humidity | ≤90%（non-condensing） |

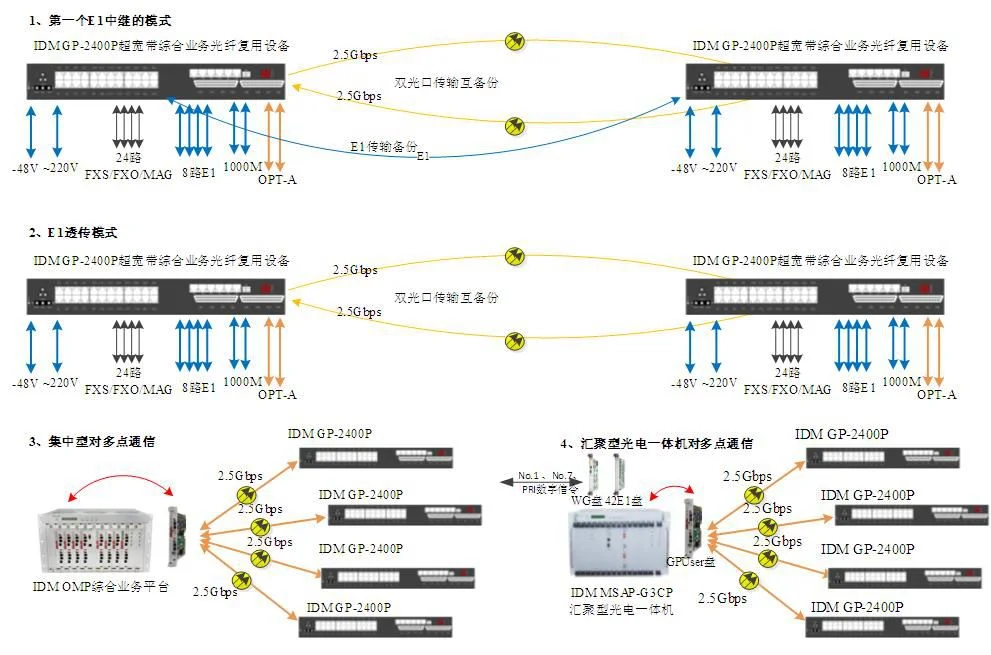

IV. Application Examples
