PCM Equipment
PCM Equipment | Integrated Service Access Device | Time-Slot Cross-Connect Equipment | Ruiguang Jiyuan | Raytrans

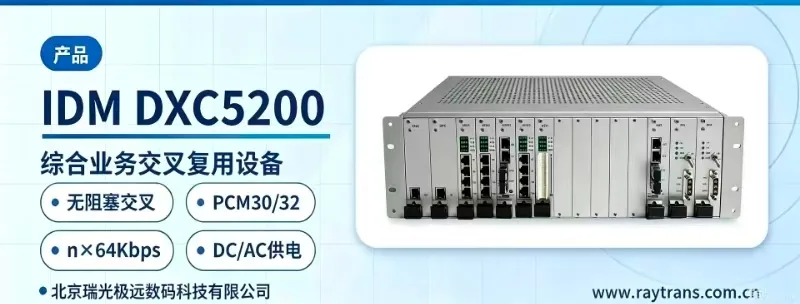

64K time slot non-blocking cross-connection, one unit replacing a PCM unit and a DXC unit
The IDM DXC5200 Integrated Service Cross-Connect Multiplexing Equipment supports E1 time-slot cross-connect and non-blocking cross-connection, provides the PCM30/32 frame structure and channel-associated signaling (CAS), and supports multiple interfaces and service multiplexing.
View Details →
PCM Equipment | Integrated Service Access Device | Ruiguang Jiyuan | Raytrans | Optical Multiplexer Manufacturer
4+1 slots, mixed insertion of voice cards, magneto cards, EM cards and serial port cards
Single E1 interface, adopting a 19-inch 1U standard chassis, 4 slot groups + 1 expansion slot group, optional 220V/-48V dual power supply, supporting FXS/FXO, magneto, EM 2/4-wire, RS232/RS422/RS485 and other services.
View Details →
IDM DXC5200, Timeslot Cross-Connect Device, E1 Interface, PCM30/32 Frame Structure, HDB3 Line Code
IDM DXC5200
The IDM DXC5200 timeslot cross-connect device supports the ITU-T G.703 standard, PCM30/32 frame structure, and HDB3 line code. It provides E1 interfaces, audio interfaces, and data interfaces (V.35/RS232), supports channel associated signaling, and is suitable for timeslot cross-connect applications.
View Details →
IDM DXC5200, Time-Slot Cross-Connect Equipment, DXC5200, 2.048 Mbit/s Cross-Connect Equipment, PCM30/32 Frame Structure Equipment
IDM DXC5200
The IDM DXC5200 time-slot cross-connect equipment supports a 2.048 Mbit/s bit rate, HDB3 (high-density bipolar 3) line coding, the ITU-T G.703 standard protocol, the PCM30/32 frame structure and channel-associated signaling (CAS).
View Details →

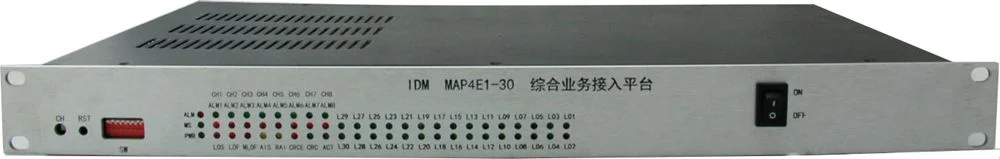

IDM MAP4E1-30 Hardware Voice Conference Device
IDM MAP4E1
The IDM MAP4E1-30 Hardware Voice Conference Device is an integrated service platform that combines 64K narrowband service access, PCM multiplexing, 64K timeslot cross-connection, and a 30-party voice conference room.
View Details →
PCM Equipment IDM-MINI PCM Integrated Service Multiplexer
PCM
The IDM-MINI Integrated Service Multiplexer adopts an independent structure, capable of simultaneously transmitting 8+1 channels of 64K or n×64K voice and data services over one E1 or optical fiber transmission channel. By converting 10Base-T Ethernet, voice channels, V.35, V.24 and other services into E1 data streams for transmission over E1 or fiber channels.
View Details →PCM Device Product List
PCM
PCM Device Product List
View Details →
IDM 120PD-2E1 Dual E1 Channel Mutual Backup Device
IDM 120PD
The IDM 120PD provides mutual backup transmission services for dual E1 interfaces, suitable for applications where critical services are transmitted through two different E1 channels. The IDM 120PD adopts a dual-E1 dual-transmit with best-selection mode to select the output E1, and the device monitors the line status of the two E1 interfaces in real time.
View Details →
IDM DXC5200 Integrated Service Cross-Connect Multiplexing Equipment
IDM DXC5200
The IDM DXC5200 Integrated Service Cross-Connect Multiplexing Equipment is fully configured with 240 groups of standard E1 transmission interfaces. It also features 240 groups of non-blocking 64K time slot cross-connect between E1 interfaces. Additionally, the equipment supports multiple clock modes to meet the clock requirements of various application environments. Key modules such as the main control board and power supply board of the DXC5200 Integrated Service Cross-Connect Multiplexing Equipment adopt dual-board redundancy.
View Details →IDM DXC5200 Timeslot Cross-Connect Equipment
IDM DXC5200
The IDM DXC5200 timeslot cross-connect equipment is fully equipped with 240 standard E1 transmission interfaces. It also provides non-blocking cross-connect capabilities for 64K timeslots among the 240 E1 interfaces. The equipment supports multiple clock modes to meet the clock requirements of various application environments. Key modules such as the main control board and power supply board are configured with dual-board redundancy.
View Details →
IDM DXC8E1 Digital Cross-Connect Equipment
IDM DXC8E1
The IDM DXC8E1 Digital Cross-Connect Equipment is an integrated service platform that combines 64K narrowband service access, PCM multiplexing, and 64K timeslot cross-connection. The IDM DXC8E1 equipment is mainly used for service access and cross-connection at the access layer in data communication networks. It features complete synchronization and timing functions, providing non-blocking cross-connection at the 64K level across 8 E1 channels, and can also provide 30 channels of 64K services, including telephone, magneto telephone, common battery telephone, and V.24 data services.
View Details →
IDM MAP2E1-30 Integrated Service Cross-Connect Multiplexer
IDM MAP2E1
The PCM equipment IDM MAP2E1-30 Integrated Service Cross-Connect Multiplexer adopts 2E1 timeslot extraction or mutual backup, features a 19-inch 1U standard chassis, 15 slot positions, 220V/-48V optional power supply, and supports FXS/FXO, Magneto, 2/4-wire E&M, RS232/RS422/RS485 and other 64K services.
