IDM MAP2E1-30 Integrated Service Cross-Connect Multiplexer

Overview

The IDM MAP2E1-30 Integrated Service Cross-Connect Multiplexer is a comprehensive service platform that integrates 64K narrowband service access, PCM multiplexing, and 64K timeslot cross-connection.

The IDM MAP2E1-30 is primarily used for service access and cross-connection at the access layer of data communication networks. It features complete synchronization and timing functions, providing non-blocking cross-connection at the 64K level across 2 E1 channels, while simultaneously supporting up to 30 channels of 64K services, including telephone, magneto telephone, common battery telephone, and V.24 data services.

IDM MAP2E1-30 Integrated Service Cross-Connect Multiplexer Image

Product Features

Ø 19-inch 1U PCM equipment with 30 channels of voice access;

Ø 2 E1 access ports; the two E1 ports can be configured in mutual backup mode or cascade mode (i.e., timeslot extraction equipment);

Ø The main board provides 15 service card slots, with a maximum of two service channels per card. Voice interfaces can be FXO (central office automatic telephone), FXS (remote automatic telephone), or MAG (magneto telephone); data services include V.24/RS232/RS485/RS422, X.50/X.58, same-direction 64K, Nx64K bandwidth V.35/V.36, and Ethernet bridge;

Ø Supports serial port network management or Ethernet SNMP network management;

Ø Available with AC 220V power supply or DC -48V power supply.

Technical Specifications

1) E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

2) Ethernet (FE)

Interface Type	RJ-45	Transmission Rate	N×VC12（N≤50）
Standard Protocol	SupportsIEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

3) Ethernet (GE)

Interface Type	RJ-45	Transmission Rate	N×VC12（N≤63）
Standard Protocol	SupportsIEEE802.3	Operating Mode	Full/Half Duplex/Auto-negotiation

4) FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression Rate	ITU G.711A-law
Impedance	Triple Complex Impedance200Ω+560Ω//0.1μF	Loop Current	20mA/channel

5) Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant withITU-TG.703 Recommendation

6) EM2/4-line interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	ITU G.711A-law	Return Loss	Not less than18dB

7)        Magneto Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	ITU G.711A-law	Return Loss	Not less than18dB

8) V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Complies withCCITT V.28protocol

9) V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps(n=0～31)	Terminal Interface	Compliant withISO2593Specification

10) Power Supply and Power Consumption

Power Supply Mode

AC220V/DC-48V

Total Power Consumption

≤150W

11) Environmental Conditions

Operating Temperature

-10oC ~+50oC

Relative Humidity

0~95%(non-condensing)

12) Product Dimensions

Length×Depth×Height

482×309×44(mm)

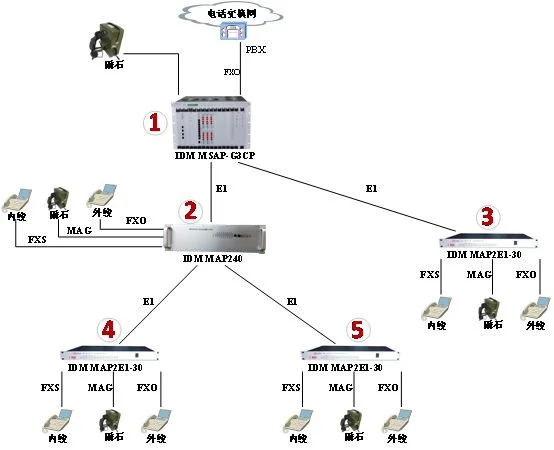

Application Example
