IDM GP2400

I. Overview

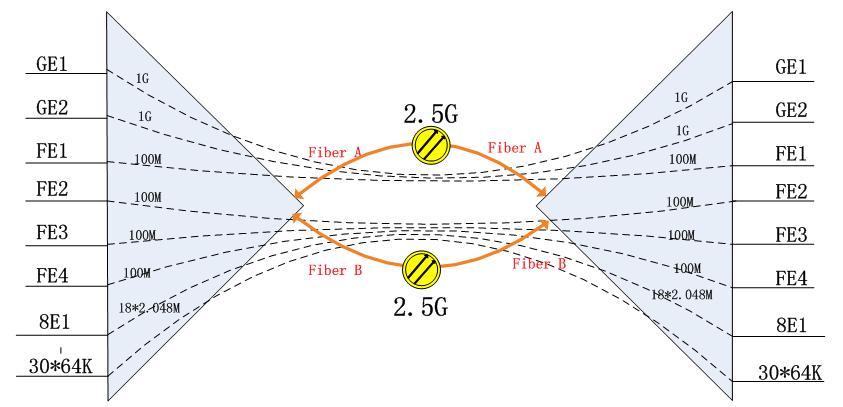

The IDM GP2400-8E1-30 Ultra-Broadband Integrated Service Fiber Multiplexer utilizes 2.5G fiber transmission bandwidth (G.703 standard) with PCM30/31 framing, providing dual-fiber backup. It directly offers telephone service interfaces (up to 30 channels of FXO, FXS, or Magneto), 4 groups of physically isolated wire-speed 100M Ethernet (400M total), 2 groups of physically isolated wire-speed 1000M Ethernet (2000M total), E1 (1-8 E1 channels), HDMI HD video transmission, and various other user interfaces. The device is easy to install and suitable for various application environments.
It provides dual-fiber backup and can be combined with other devices to form multiple physically isolated Ethernet chain networks Telephone Optical Terminal, ring networks Telephone Optical Terminal, and point-to-multipoint star networks Telephone Optical Terminal.

II. Product Features

Ø Standard 19-inch 1U chassis design for easy installation;

Ø Provides 2 2.5G SFP optical interfaces with 1+1 optical port protection;

Ø Provides 30 telephone service interfaces per standard definition;

Ø Provides 2 independent physically isolated wire-speed 1000M Ethernet interfaces;

Ø Provides 4 independent physically isolated wire-speed 100M Ethernet interfaces;

Ø Provides 8 groups of E1 interfaces supporting transparent transmission mode;

Ø Provides a standard SNMP network management interface;

Ø Equipped with comprehensive function control switches and alarm indication features;

Ø Two hot-swappable power modules supporting ~220V and -48V power supply.

III. Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode(Multi-mode optional)
Fiber Rate	2.5G	Wavelength	1310nm/1550nm
Transmit Optical Power	-1~-3dBm	Receiver Sensitivity	Better than-24dBm

E1 Interface

Bit Rate	2048Kbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/31	Mode	Transparent

Ethernet

Interface Type	RJ45	Transmission Rate	10M/100M/1000M
Standard Protocol	SupportsIEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO/FXS Interface

Audio Range	300Hz~3400Hz	Impedance	Triple Complex Impedance200Ω+560Ω//0.1μF
Compression Rate	ITU G.711A-law	Loop Current	25mA/channel

Power Supply and Power Consumption

Power Supply

DC-48V /AC 220V/Dual Power Supply

Power Consumption

≤100W

Environmental Conditions

Operating Temperature

0ºC～40ºC

Humidity

≤90%(non-condensing)

4. Application Examples

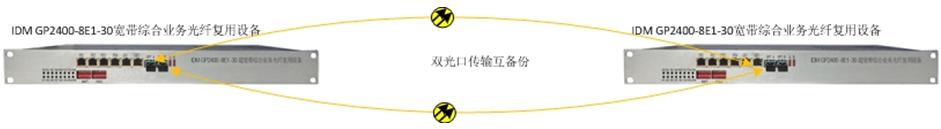

Application 1: Point-to-Point Application Mode

Application 2: Centralized Point-to-Multipoint Application Mode

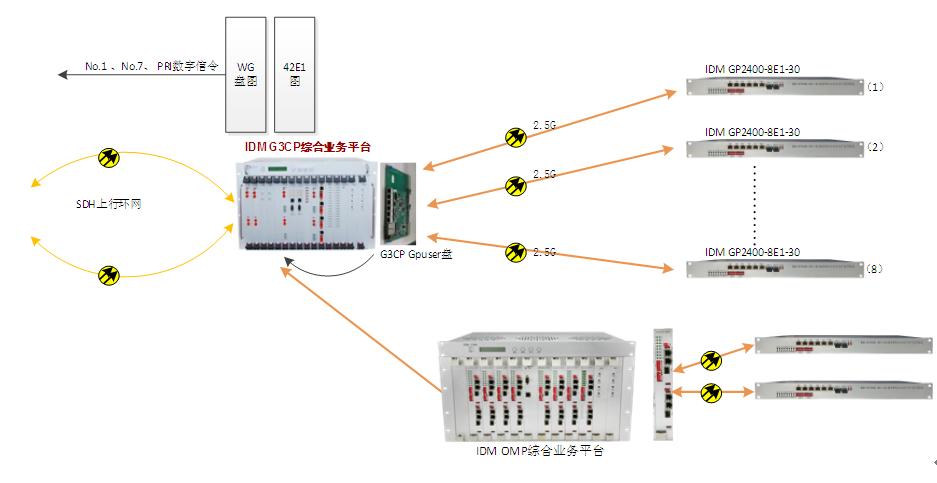

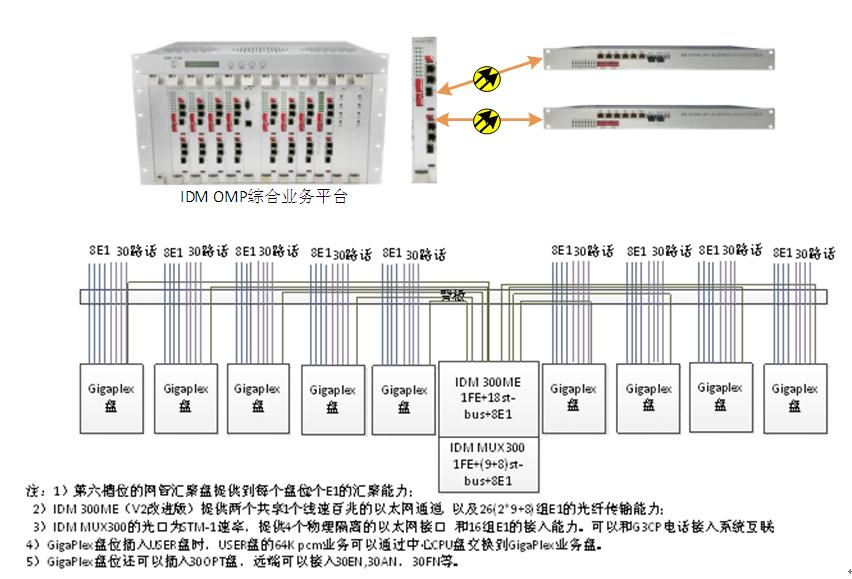

Application 3: Hybrid Mode of IDM OMP and IDM G3CP with Various Broadband Fiber Access Devices
