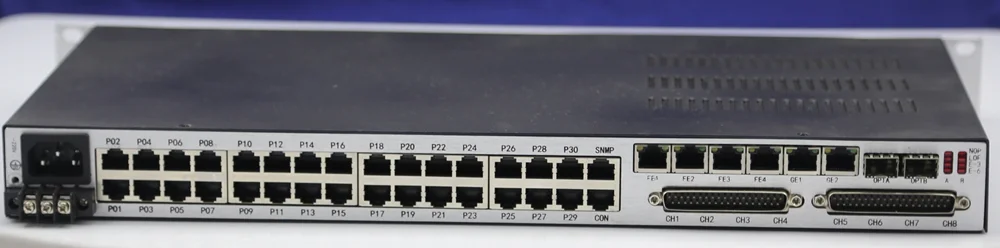

IDM OMP2400-8E1-30 Ultra-Broadband Integrated Service Optical Multiplexer
The IDM OMP2400-8E1-30 multi-service optical terminal utilizes 2.5G optical fiber transmission bandwidth (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup, directly offers 64K service interfaces, 4 groups of physically isolated wire-speed 100M (400M total), and is easy to install, meeting the requirements of various application environments.
Gallery
I. Overview
The IDM OMP2400-8E1-30 ultra-broadband integrated service optical multiplexer utilizes 2.5G optical fiber transmission bandwidth (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup, directly offers 64K service interfaces, 4 groups of physically isolated wire-speed 100M Ethernet (400M total), 2 groups of physically isolated wire-speed 1000M Ethernet (2000M total), E1 (1-4 E1 channels total), HDMI high-definition video transmission, and various other user interfaces. Meanwhile, the device is easy to install and meets the requirements of various application environments. Meanwhile, the device is easy to install and meets the requirements of various application environments.
II. Product Features
Ø Standard 19-inch 1U chassis architecture for easy installation;
Ø Provides 2 x 2.5G SFP optical interfaces with 1+1 optical port protection;
Ø Supports up to 30 channels of integrated service access;
Ø Provides 2 independent 1000M Ethernet interfaces;
Ø Provides 4 independent 100M Ethernet interfaces;
Ø Provides 8 groups of E1 interfaces supporting transparent transmission mode;
Ø User interface cards can provide FXO/FXS, 2/4-wire E&M, RS232/RS422/RS485, same-direction 64K, magneto, high-fidelity, and X.50 services;
Ø Provides a standard SNMP network management interface;
Ø Equipped with comprehensive function control switches and alarm indication features.
III. Technical Specifications
Optical Interface
Interface Type | SFP | Fiber Mode | Single-mode (Multi-mode optional) |
Fiber Rate | 2.5Gbps | Wavelength | 1310nm/1550nm |
Transmit Power | -1~-3dBm | Receiver Sensitivity | Better than -24dBm |
E1 Interface
Line Rate | 2048Kbps | Line Code | HDB3 |
Standard Protocol | SupportsITU-T G.703 | Impedance | 75Ω/120Ω |
Frame Structure | PCM30/31 | Mode | Transparent |
Ethernet
Interface Type | RJ45 | Transmission Rate | 10M/100M/1000M |
Standard Protocol | SupportsIEEE802.3 | Operating Mode | Full/Half Duplex/Auto-Negotiation |
FXO/FXS Interfaces
Audio Frequency Range | 300Hz~3400Hz | Impedance | Three-element Complex Impedance200Ω+560Ω//0.1μF |
Companding Rate | ITU G.711 A-law | Loop Current | 25mA/channel |
Power Supply and Power Consumption
Power Supply | DC-48V / AC 220V / Dual Power Supply | Power Consumption | ≤100W |
Environmental Conditions
Operating Temperature | 0ºC～40ºC | Humidity | ≤90%（non-condensing） |
