IDM OMP2000

I. Overview

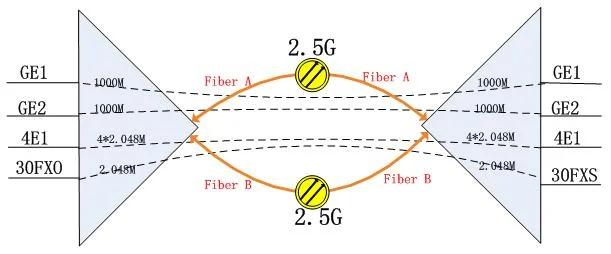

The IDM OMP2000-4E1-30E ultra-broadband integrated service optical multiplexer utilizes 2.5G optical fiber transmission bandwidth (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup, directly offering telephone service interfaces (30 channels of FXO, FXS, or Magneto), 2 groups of physically isolated wire-speed 1000M Ethernet (2000M total), E1 (1-4 E1 channels), HDMI HD video transmission, and various other user interfaces. Additionally, the device features easy installation and is suitable for a wide range of application environments.
It provides dual-fiber mutual backup and can also be combined with other devices to form multiple physically isolated Ethernet chain networks Telephone Optical Terminal, ring networks Telephone Optical Terminal, and point-to-multipoint star networks Telephone Optical Terminal.

II. Product Features
Standard 19-inch 1U chassis architecture for easy installation;
Provides 2 x 2.5Gbps SFP optical interfaces with optical port 1+1 protection;
Provides 30 standard-defined telephone interfaces;
Provides 2 independent 1000M Ethernet interfaces;
Provides 4 groups of E1 interfaces supporting transparent transmission mode;
Provides standard SNMP network management interface;
Features comprehensive function control switches and alarm indication functions.

III. Technical Specifications

Optical Interface

E1 Interface

Ethernet

FXO/FXS****Interfaces

Power Supply and Power Consumption

Environmental Conditions

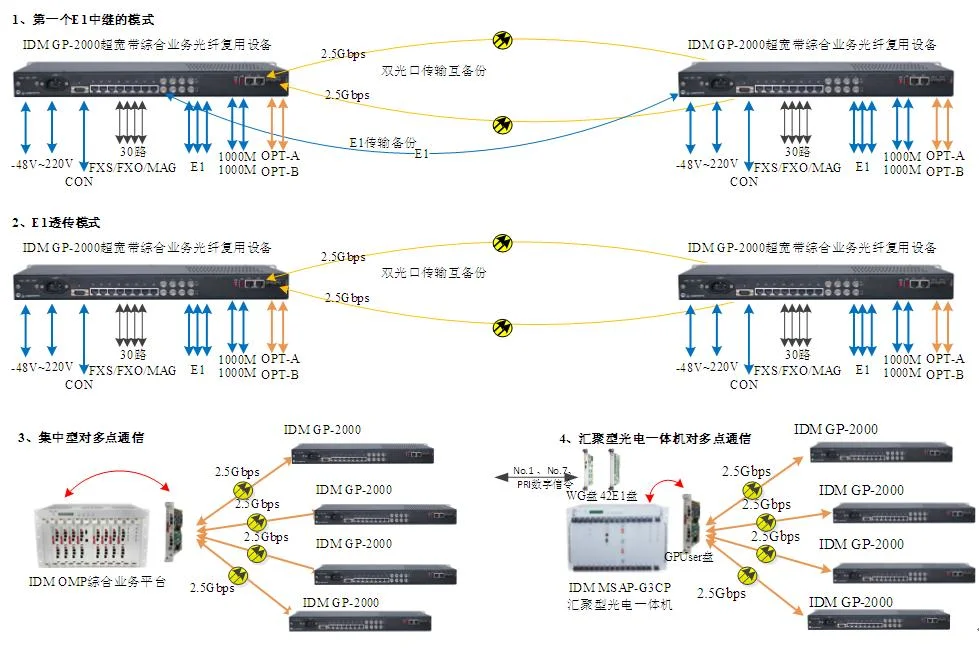

IV. Application Examples
