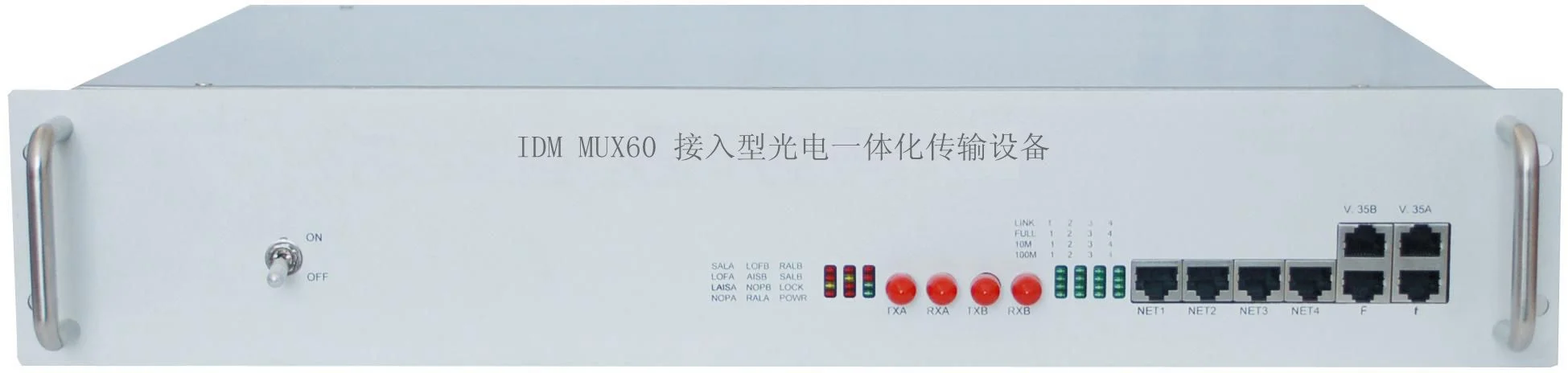

IDM-MUX60 60-Channel SDH Telephone Optical Terminal

Overview

The IDM MUX60 is a multi-service SDH access device with SDH technology at its core and STM-1 level, fully compliant with ITU-T standards. This device provides users with multi-service access and SDH optical transmission, offering two 155.52Mbps optical interfaces (A and B), four 10M/100M Ethernet interfaces, multiple groups of E1 interfaces, and 64K services. It features network element timing per ITU-T G.813 standards, VC-12 cross-connection, and channel protection functions. In addition, the IDM MUX90 is used to build point-to-point, point-to-multipoint chain and ring transmission networks. The IDM MUX60 multi-service access platform can be widely applied in telecommunications data services, power, banking, public security, military and other sectors for public telephone network access or private line information transmission.

Product Features

Ø The chassis structure adopts a 19-inch standard 2U chassis with plug-in card design; provides 6 slots for 3U user plug-in cards;

Ø Integrates SDH transmission, PBX voice switching, PCM service access, and video access technologies into the device;

Ø Provides 252×252 VC-12 level non-blocking cross-connection between TDM interface services, supporting unidirectional, bidirectional, and broadcast services;

Ø Single card provides 64K level cross-connection capability of 512×512 64K non-blocking cross-connection, supporting unidirectional, bidirectional, and broadcast services;

Ø Supports 2 SFP interface STM-1 optical access, capable of forming ring, chain, star and other network topologies;

Ø Provides 4 groups of physically isolated EoS Ethernet, each group with configurable EoS bandwidth of N×VC12 (N=1~50); each group also provides 1 reserved extended Ethernet port; works with the 8FE card to expand the number of extended Ethernet interfaces;

Ø Provides a 5-in-1 2-wire audio card: 3U-8MVOICE; each card provides 8 channels of 2-wire audio; each 2-wire audio channel can be configured as FXO/FXS/hotline/magneto/2100Hz magneto mode;

Ø Clock source can be selected from line clock, external clock (2Mbit/s or 2MHz), and free-running oscillation;

Ø Provides 6 user slots for inserting various service cards, offering PDH, E1, FXO/FXS, V.24/V.28/V.35, EM2/4, hotline telephone, magneto telephone, high-fidelity audio, X.50, 10M/100M Ethernet, and video codec cards for voice and data service access;

Ø Standard model supports non-repeater transmission distance of 40 kilometers; distances beyond this can be customized;

Ø Provides Ethernet management channels based on DCC, E1, N*64K, and TCP/IP, with SNMP simple network management protocol support;

Ø DC -48V and AC 220V power supply, with optional DC+DC, AC+AC, AC+DC dual backup power supplies;

Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode (Multi-mode optional)
TX/RX Rate	155.52Mbps/155.52Mbps	TX/RX Wavelength	1310nm/1550nm
TX Optical Power	-12~-6dBm	RX Sensitivity	Better than -32dBm

E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

Ethernet

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression Rate	A-law per ITU G.711
Impedance	Three-element compound impedance 200Ω+560Ω//0.1μF	Loop Current	20mA/channel

Co-directional 64K interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant withITU G.703 Recommendation

EM2/4 Line Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding	A-law per ITU G.711	Return Loss	≥18dB

Magnetic Ring Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding Law	A-law per ITU G.711	Return Loss	≥18dB

V.24 Interface

Transmission Rate

Asynchronous ≤9600bps; Synchronous 64Kbps

Electrical Characteristics

Complies with CCITT V.28 protocol

V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps (n=0–31)	Terminal Interface	Compliant withISO2593Specification

Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Total Power Consumption

≤90W

Environmental Conditions

Operating Temperature

-20oC ~+50oC

Relative Humidity

0~95% (non-condensing)

Product Dimensions

Length×Depth×Height

440*230*90（mm）

Application Example 1

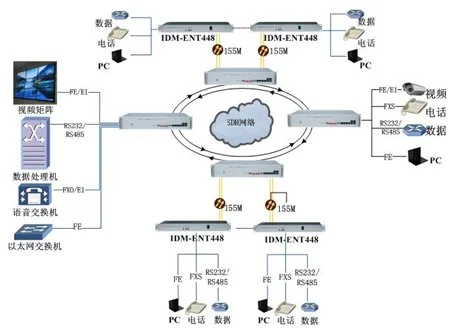

Ring Network Application Diagram

    The IDM-MUX60 can form a ring network, where multiple units are deployed to create a ring topology. The 1+1 channel protection mechanism ensures real-time and accurate transmission of all data and voice services within the ring network.
