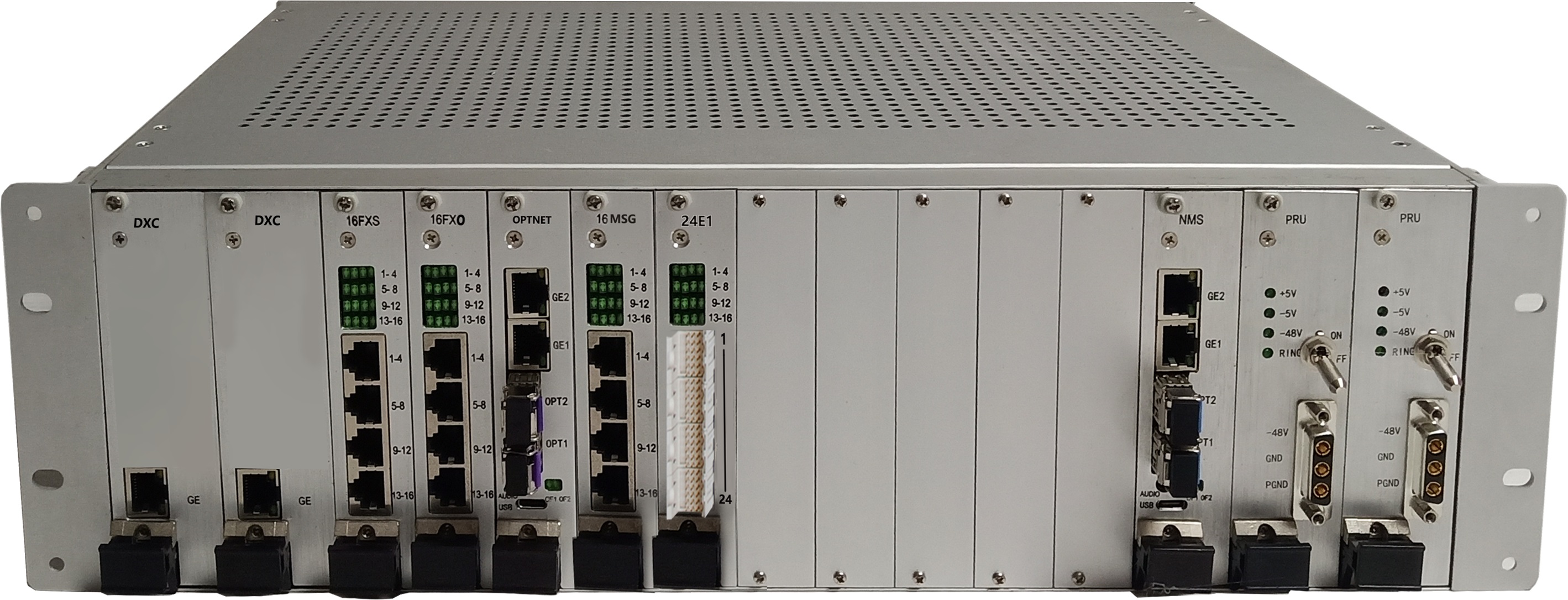

IDM MSTP8200 Integrated Service Transmission Equipment

📅May 12, 2026

Model：IDM MSTP8200|Category：SDH

The MSTP8200 Integrated Service Transmission Equipment provides STM-16/STM-4/STM-1 optical interfaces, Gigabit Ethernet ports based on EOS technology, E1 interfaces, and supports various 64K services including FXS/FXO, V.35/V.24, hotline, and magneto. It can also access video signals for convenient video surveillance system setup.

Overview

The IDM MSTP8200 Integrated Service Transmission Equipment is a new generation access-oriented optical-electrical integrated transmission equipment based on SDH technology, launched by Beijing Raytrans Digital Technology Co., Ltd. It is optimized for large-user access and provides access and transmission of multiple services. It meets the needs of users for broadband and narrowband fiber access, while also satisfying larger capacity requirements and providing more reliable communication protection. The IDM MSTP8200 is designed according to the functional modules defined in Recommendation G.783, providing complete service monitoring, access, protection, and network management functions inherent to SDH equipment, as well as Ethernet access functions required by MSTP equipment.

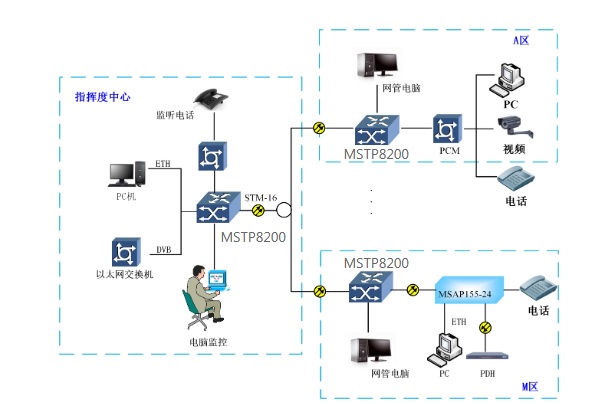

The IDM MSTP8200 Integrated Service Transmission Equipment is an STM-N level multi-service SDH (Synchronous Digital Hierarchy) optical transmission system with SDH and EOS technologies at its core, fully compliant with ITU-T standards. It provides STM-16/STM-4/STM-1 optical interfaces, Gigabit Ethernet ports based on EOS technology, E1 interfaces, and supports various 64K services including FXS/FXO, V.35/V.24, hotline, and magneto. It can also access video signals for convenient video surveillance system setup. The equipment features ITU-T G.813 standard network element timing, VC-12 cross-connect, and channel protection functions. Additionally, the IDM MSTP8200 can serve as an add-drop multiplexer or terminal multiplexer for building point-to-point, point-to-multipoint chain and ring transmission networks. The entire unit adopts a card-insertion structure, allowing configuration of different quantities and types of service cards as needed, reducing initial investment and facilitating future expansion, upgrades, and maintenance.

Product Features

u 19-inch standard 3U chassis, card-insertion design; provides 15 3U user card slots;

u SFP type STM-16/STM-4/STM-1 optical interfaces, supporting SDH ring and chain networks, with 1+1 channel protection for tributaries;

u Provides full cross-connect between TDM interface services:

nVC12 cross-connect capacity: 6174×6174

nVC3 granularity cross-connect capacity: 288*288

nVC4 granularity cross-connect capacity: 128*128

nSupports unidirectional, bidirectional, and broadcast services;

u Supports access of up to 160 channels of 64K timeslot services;

u Provides physically isolated EoS Ethernet, with each EoS group bandwidth:

nVC4 granularity: maximum N×VC4 (N=1~8) configurable;

nVC3 granularity: maximum N×VC3 (N=1~24) configurable;

nVC12 granularity: maximum N×VC12 (N=1~50) configurable;

nEach group provides 1 reserved expansion Ethernet port; used with 8FE card to expand Ethernet interface count;

u Provides 5-in-1 2-wire audio card: 3U-8MVOICE; each card provides 8 channels of 2-wire audio; each channel can be configured as FXO/FXS/hotline/magneto/2100 magneto mode;

u Can insert radar data access card, each card provides 4 radar data service interfaces, supporting synchronous and asynchronous modes. In synchronous mode, transmission rates support 300bps/600bps/1.2kbps/2.4kbps/4.8kbps/9.6kbps/19.2kbps/38.4kbps/57.6kbps/64kbps/115.2kbps/128kbps; in asynchronous mode, maximum rate 38.4kbps, with auto-negotiation below 38.4kbps;

u Clock source selectable: line clock, external clock (2Mbit/s or 2MHz), or free-run;

u Provides 10 user slots for various service cards, supporting access of PDH, E1, FXO/FXS, V.24/V.28/V.35, EM2/4, hotline telephone, magneto telephone, high-fidelity audio, X.50, and 10M/100M Ethernet voice and data services;

u Can insert 3UMPCONV user optical port expansion card and WG300 signaling exchange card;

u Standard model supports repeaterless transmission distance of 40 km; longer distances can be customized;

u Provides Ethernet management channels based on DCC, E1, N*64K, and TCP/IP, with SNMP simple network management protocol;

u DC -48V and AC 220V, optional DC+DC, AC+AC, AC+DC dual backup power supply;

Technical Specifications

1) Optical Interface

Interface Type	STM-16 SFP	Fiber Mode	Single-mode
Tx/Rx Rate	2.5G	Tx/Rx Wavelength	1310nm/1550nm
Output Power	-12~-6dBm	Receiver Sensitivity	Better than -32dBm
Transmission Distance	40 km, optional long-distance optical modules for longer fiber transmission
Interface Type	STM-4 SFP	Fiber Mode	Single-mode
Tx/Rx Rate	622.08Mbps/622.08Mbps	Tx/Rx Wavelength	1310nm/1550nm
Output Power	-12~-6dBm	Receiver Sensitivity	Better than -32dBm
Transmission Distance	40 km, optional long-distance optical modules for longer fiber transmission
Interface Type	STM-1 LC	Fiber Mode	Single-mode
Tx/Rx Rate	155.52Mbps/155.52Mbps	Tx/Rx Wavelength	1310nm/1550nm
Output Power	-12~-6dBm	Receiver Sensitivity	Better than -32dBm
Transmission Distance	40 km, optional long-distance optical modules for longer fiber transmission

2) E1 Interface

Bit Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	Supports ITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel Associated Signaling

3) Ethernet (FE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-negotiation

4) Ethernet (GE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤63)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-negotiation

5) FXO, FXS Interface

Audio Range	300Hz~3400Hz	Compression	ITU G.711 A-law
Impedance	Complex impedance 200Ω+560Ω//0.1μF	Loop Current	20mA per channel

6) Co-directional 64K Interface

Line Code

G.703 standard

Bit Rate

64Kbps

Impedance

Balanced 120Ω

Fully compliant with ITU G.703 recommendation

7) EM2/4 Wire Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced 600Ω
Compression	ITU G.711 A-law	Return Loss	Not less than 18dB

8) Magneto Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced 600Ω
Compression	ITU G.711 A-law	Return Loss	Not less than 18dB

9) V.24 Interface

Transmission Rate

Asynchronous ≤9600bps; Synchronous 64Kbps

Electrical Characteristics

Compliant with CCITT V.28 protocol

10) V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant with ITU-T V.35 recommendation
Transmission Rate	n×64Kbps (n=0～31)	Terminal Interface	Compliant with ISO2593
