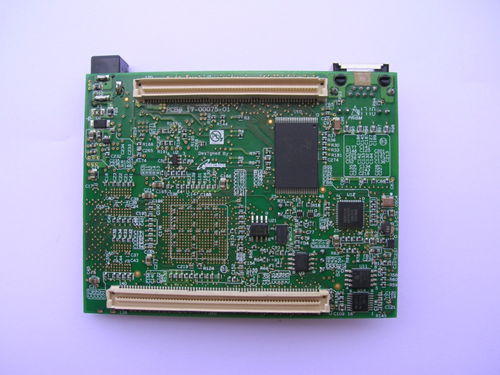

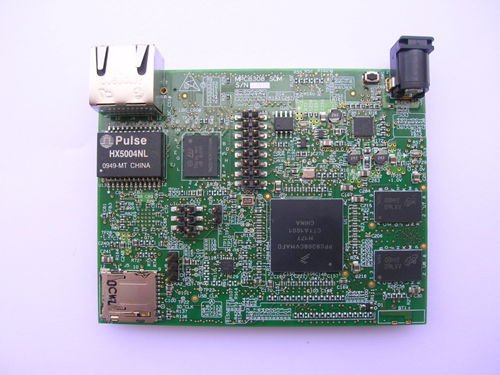

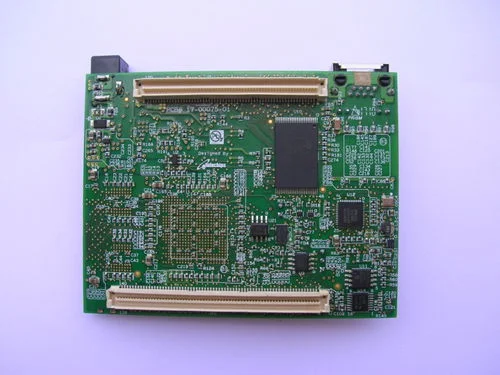

MPC8309 Core Board Module

Available for order on freescale.com
Schematics, Gerber files and user guide provided
Will come with Linux® BSP & drivers
MQX port will be available mid-August 2010

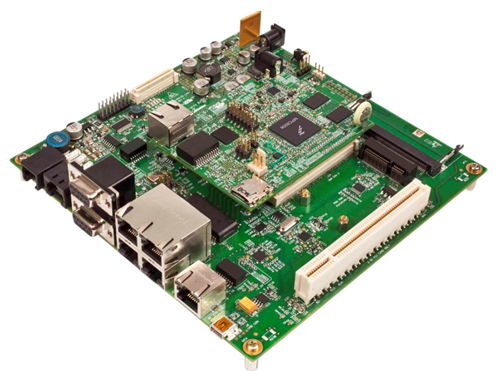

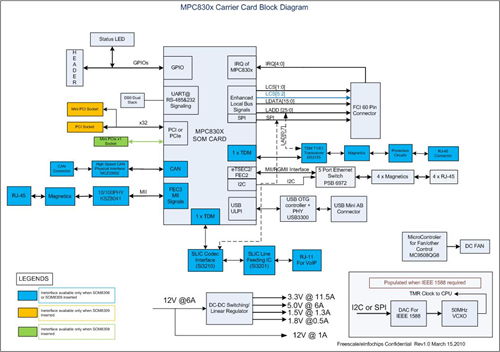

MPC8308, MPC8306 and MPC8309 SOMs all are interchangeable with the carrier card

CPU:
Freescale’s PowerQUICC™ II Pro based SOC MPC8308 (e300 core up to 400MHz)

System Memory:
256MB DDR2 SDRAM, x32 bit interface @266MHz speed

Boot/Program Memory:
Dynamic Boot Mode control through KA2 Microcontroller
8MB NOR flash, x16 interface
1GB NAND Flash, x8 interface
256Kbits (32Kbits x8) I2C EEPROM

Network:
On-board 10/100/1000 Mbps RGMII Ethernet interface
2nd RGMII port available on Board-to-Board connector

2x UART:
On-board RS232 connectivity through 3-Pin Header; RS232 connectivity available on Board-to-Board connector
On-board RS485 Full Duplex Transceiver; connectivity through DB9 on Carrier Card

Storage:
On-board Micro-SD card connector
USB 2.0 Host/Device/OTG connectivity through Carrier Card

Board-to-Board Connectivity
x1 PCIe
Local Bus
USB Host/Device/OTG
Ethernet (eTSEC-2)
GPIO & Interrupt
RS232 & RS485
IEEE1588 Timer Support

Power Supply: 5V @ 1.2A
5V Supply Input either through External adapter or from Carrier Card

Dimension: 90mm x 70mm
