M8000

1 Overview

The M8000 Wired-Wireless Trunking Communication Command System is a voice dispatch system designed for group command, featuring dedicated command, group command, skip-level command, and conference command functions. It also provides standard SDH-based high-bandwidth information transmission expansion capabilities, supports expansion of multiple digital signaling standards for telephone exchanges, and offers a variety of narrowband and broadband voice/data interface capabilities. It can be used for position command in combat, training exercises, counter-terrorism and stability maintenance, as well as emergency rescue and disaster relief.

2 Configuration

 The wired-wireless trunking communication command system consists of a main unit, wiring box, remote command box, and iPad command terminal;
 The unit features a backpack-style structure, supports standard battery connection, and offers one-key convenient operation;
 Supports access of 20 position voice terminals (multi-function magneto telephone sets);
 Supports access of 2 magneto trunk lines for connection to higher-level units;
 Supports access of 2 automatic trunk lines for connection to higher-level units;
 Supports access of 4 groups of amplification terminals, enabling simultaneous voice monitoring of 4 sub-groups;
 Provides 6 radio station interfaces, assignable to 4 groups via configuration;
 Both the command main unit and remote command box are equipped with 2 telephone handsets;
 Features dual STM-1 optical port expansion and E1 signaling (No.1, No.7, PRI, V5.2, etc.) expansion capabilities.

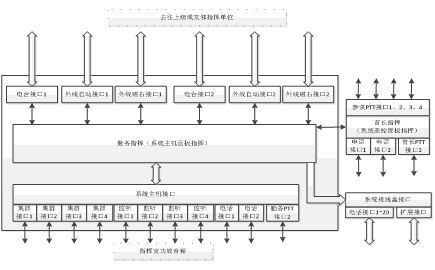

3 System Hardware Interfaces

4 Equipment Images

(For equipment images, please contact 010-51668966)

5 Command Software Control Panel

(For command software control panel images, please contact 010-51668966)

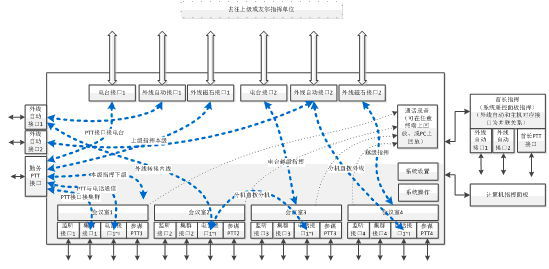

6 Schematic Diagram of Common System Command Functions

7 System Functions and Performance Specifications

7.1 Main Technical Specifications
7.1.1 Connection Method
Microprocessor-controlled, manual connection and automatic connection.
7.1.2 Command Communication Modes
Supports centralized command, group command, dedicated command, and skip-level command communication capabilities.
7.1.3 Port Quantities
Wired user ports: 20;
Wireless user ports: 4 (typically connected to wireless trunking);
Radio station user ports: 2 (typically connected to remote shortwave radio stations);
Automatic trunk ports (FXO): 2;
Superior magneto trunk ports: 2;
Service/command panel telephone ports: 2;
Service/command panel handset ports: 1;
Monitoring speaker ports: 4;
Command panel staff monitoring handset ports: 4.
7.1.4 Configuration Method
Configuration can be performed via PC software, iPad command terminal, or panel buttons, divided into service unit and command unit, where the service unit contains the control and interface modules.
7.1.5 Service Types
Magneto ports, trunk FXO ports, E/M ports, audio ports, etc.
7.1.6 Communication Methods
Three modes: wired, wireless, and radio.
7.1.7 Dialing Methods
Multi-function magneto telephone set dialing, main unit service panel dialing, command box panel dialing, iPad command terminal/PC software dialing, etc. Numbers can be pre-configured via the control unit.
7.1.8 Communication Distance
The magneto interface supports a distance of no less than 20 km when using field twisted-pair cable.
7.1.9 Indicator Light Definitions
User status: The panel uses 7-color indicators to display current user status: idle (off), user in call (green), service/command call (white), ringing (yellow), alarm (red flashing);
Conference room functions: Conference 1 (blue), Conference 2 (cyan), Conference 3 (magenta), Conference 4 (red);
System function keys: These function keys illuminate white when pressed and turn off after confirmation.
7.1.10 Operating Temperature: -20~+55℃
7.1.11 Relative Humidity: (95±3%) (+35℃)
7.1.12 Storage Temperature: -40~+65℃
7.1.13 Power Supply
AC: 220V±10%, frequency 50Hz
Battery: 12V 10A

7.2 Function Description
7.2.1 User Call:
7.2.2 Service Command Call
7.2.3 Called Party Ringing
7.2.4 Conference Room Start/Cancel Conference
7.2.5 Skip-Level
7.2.6 Recording
7.2.7 Monitoring
7.2.8 Settings

8 Application Example
