IDM S316TF
IDM S316TF
Product Overview: The S316TF series 10G core fiber optic Ethernet switch is a switch product developed by our company specifically for application environments such as building automation, security surveillance, smart city, Tianwang system, electronic police, and factory automation; the S316TF provides 15
Product Overview:
The S316TF series 10G core optical Ethernet switch is a switch product developed by our company specifically for building automation, security surveillance, smart city, Tianwang system, electronic police, factory automation and other application environments;
The S316TF provides 15 10G SFP Plus ports, compatible with common 10G SFP Plus modules available on the market;
The S316TF series provides 8 RJ45 10/100/1000BaseT(X) interfaces, supporting 10Mbps/100/1000Mbps auto-negotiation, full-duplex/half-duplex auto-negotiation, and MDI/MDIX polarity auto-negotiation;
The S316TF supports rich Layer 2/Layer 3 network switching functions such as VLAN, STP, QOS, ACL, routing, etc. In large-scale network systems, it can smoothly handle massive data switching, making it an ideal choice for core data switching in large networks;
This product adopts a high-performance network switching chip, and all ports support non-blocking, wire-speed packet forwarding;
This product adopts a metal housing, which is aesthetically pleasing, durable, and has an operating temperature of -20°C to 70°C;
This optical Ethernet switch product meets all indicators of CCC, CE/FCC, EN 61000 and other standards. Its high stability and high reliability performance make it an ideal choice for project applications.
Product Features:
l Ultra-fast 10G network core
l Full support for Layer 3 network switching functions
l Provides 15 10G SFP Plus ports
l Provides 8 1000BaseT(X) RJ45 copper ports
l Compliant with IEEE 802.3 standards
l Non-blocking wire-speed forwarding between all ports
l Supports up to 4096 VLANs, compliant with 802.1Q standard VLAN
l Supports 802.1p QOS data priority transmission services
l Supports 9.6Kbyte jumbo frames
l Access Control List (ACL), supporting Layers 2, 3, 4 and multiple protocols
l Supports STP, RSTP, MSTP spanning tree protocols
l Supports static routing, OSPF, RIP, BGP and other routing protocols
l Broadcast storm suppression, adjustable broadcast, multicast, and unicast
l Operating temperature -20~70°C, operating humidity 5%~95% non-condensing
Technical Specifications:
Item | Specification | Remarks |
Data Ports | ||
Port | 15x 10GSFP+ Port | |
8x GigabitRJ45 Port | ||
Data Rate | 10/100/1000Mbps , 10000Mbps | |
Switching Parameters | ||
Communication Standard | Compliant withIEEE 802.3 standard | |
MAC Address Table | 16Kbps | |
Switching Latency | <1us | |
Packet Buffer | 16Mbps | |
Switching Mechanism | Store-and-Forward | |
LEDIndicator | ||
Power | Power LED | |
Port | Link/Act, Speed | |
Connector Types | ||
Optical Port | SFP： LC | |
Electrical Port | 10/100/1000BaseT(X) RJ45 | |
Power Connector | GB StandardDC Power Jack | |
Optical Port Parameters | ||
Optical Port Type | SFP optical module | |
Transmission Distance | 20KM,40KM,60KM,80KM, 120KM, 200KM | |
Electrical & Mechanical Characteristics | ||
Power Input | AC 90~264V | |
Power Consumption | 80W | |
Enclosure | Metal enclosure | |
Dimensions (W x H x D) | 440mm x 43.6mm x 285m | |
Weight | 5.3KG | |
Mounting Method | Rack Mount | |
Operating Environment | ||
Operating temperature | -20°C ~ 70°C | |
Storage Temperature | -40°C ~ 85°C | |
Operating Humidity | 5% ~95% (Non-condensing) | |
Warranty | ||
Warranty Period | 3 Years | |

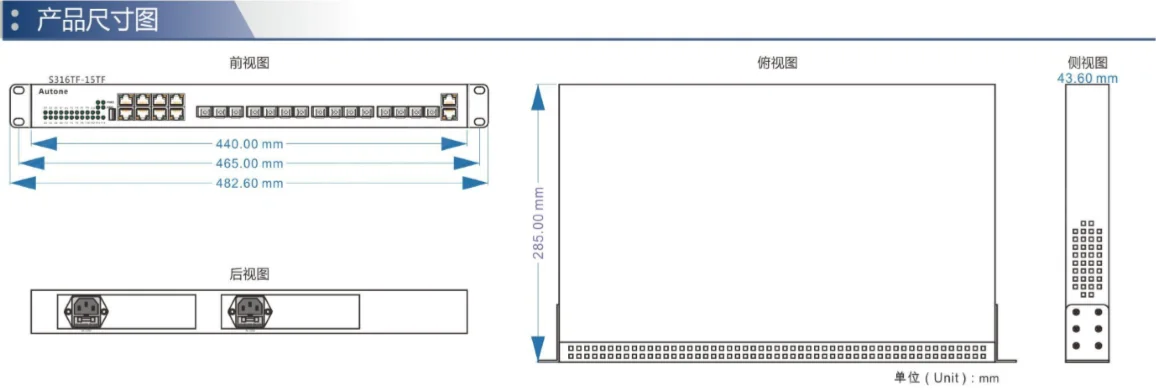

Product Dimensions:
