IDM GP-2400 Network Converter for Public Security and Armed Police
The Network Converter for Public Security and Armed Police transmits 2 groups of physically isolated wire-speed Gigabit Ethernet and 4 groups of wire-speed physically isolated 100M Ethernet over 2.5G fiber. It provides 2 groups of 2.5G fiber hot backup. It can simultaneously provide ~220V and -48V power supplies.
Gallery
Overview
The IDM GP-2400 [Network Converter for Public Security and Armed Police](

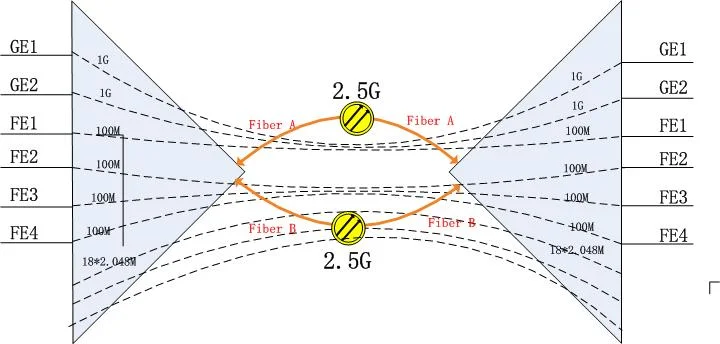

Fiber Multiplexing Principle Block Diagram of the Network Converter for Public Security and Armed Police

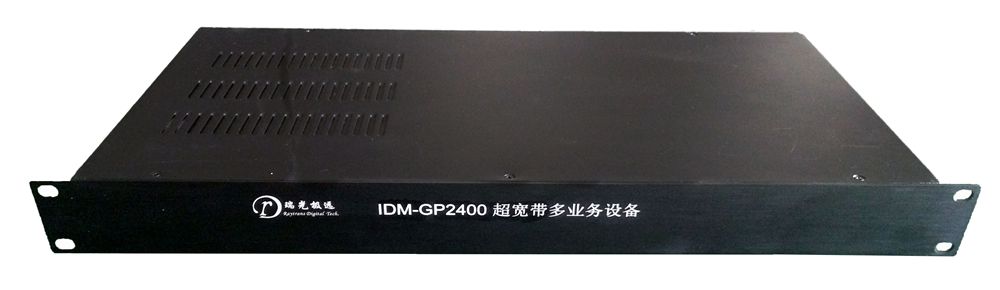

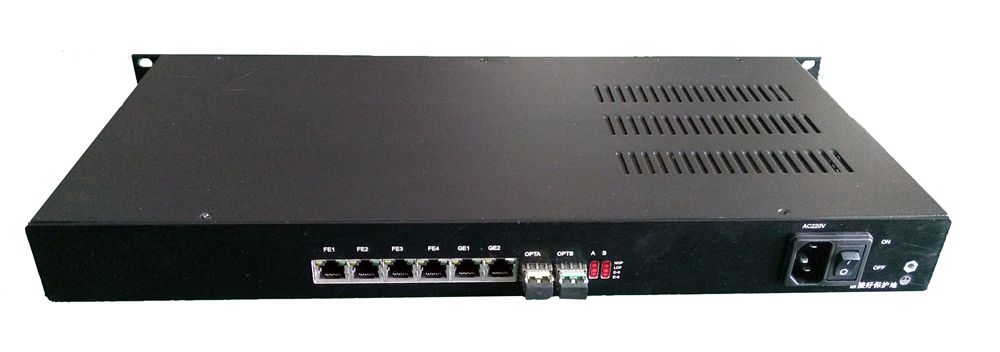

IDM GP-2400 Network Converter for Public Security and Armed Police Image
Product Features
Ø 19-inch standard 1U chassis, modular design;
Ø Adopts large-scale ASIC chip design with high integration
Ø Provides up to 2 SFP 2.5G optical transmission interfaces, supporting point-to-point and 1+1 protection network configurations; transmission distance supports 20KM, 40KM, and 80KM;
Ø Provides 2 groups of physically isolated wire-speed Gigabit Ethernet and 4 groups of wire-speed physically isolated 100M Ethernet;
Ø Adopts proprietary physical isolation technology to provide users with different independent channels over the same fiber, ensuring data security during communication and saving construction and usage costs;
Ø A pair of devices provides 4 groups of independently isolated Ethernet to meet requirements for daily office work, video surveillance, video conferencing, command & dispatch, SIP telephony, wireless extension, internal networking, and more;
Ø Supports DC-48V, AC220V, or dual power supply
Technical Specifications
Optical Interface
Interface Type | SFP | Fiber Mode | Single-mode (multi-mode optional) |
Rate | 2.5Gbps | Wavelength | 1310/1490/1550 |
Transmit Power | -1~-10dB | Receiver Sensitivity | Better than-24dBm |
Ethernet
Transmission Rate | 10M or 100M or 1000M |
|
|
Standard Protocol | Supports IEEE802.3 | Operating Mode | Full/Half Duplex/Auto-Negotiation |
Power Supply and Power Consumption
Power Supply Mode | DC-48V/AC220V | Total Power Consumption | ≤15W |
Environmental Conditions
Operating Temperature | -20oC ~+50oC | Relative Humidity | 0~95% (non-condensing) |
Application Examples

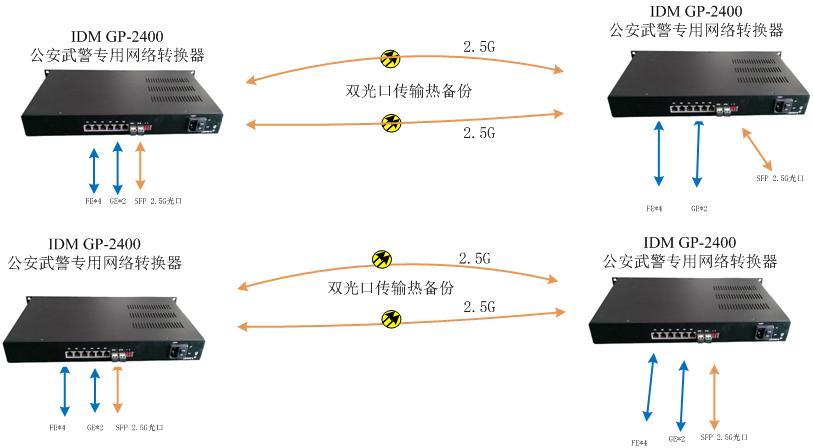

Application 1: Point-to-Point Application Mode

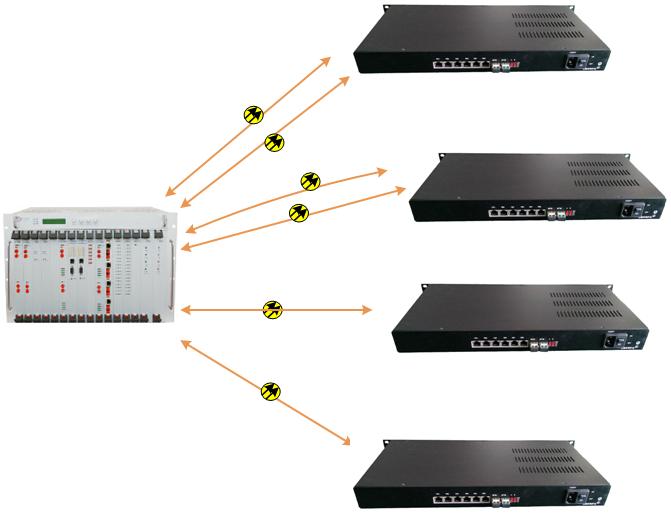

Application 2: Centralized Point-to-Multipoint Application Mode Supports Up to 12 Remote Units
