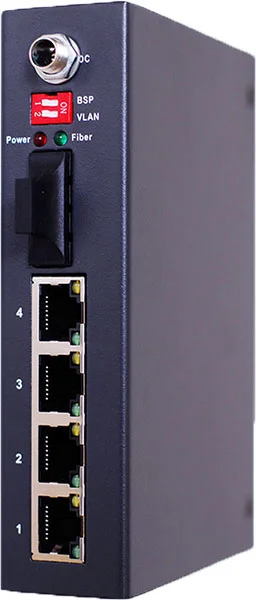

IDM S105A
IDM S105A
Product Overview: The S100A-GS series fiber optic Ethernet switches are developed by our company specifically for applications such as building automation, security surveillance, smart city, Tianwang system, electronic police, and factory automation. The S100A-GS series provides 1
Product Overview:
The S100A-GS series fiber optic Ethernet switches are developed by our company specifically for application environments such as building automation, security surveillance, smart city, public security video surveillance network, electronic police, and factory automation.
The S100A-GS series provides 1 100Mbps FX fiber optic interface with SC connector, available in single-mode/multi-mode and single-fiber/dual-fiber options. The single-mode model comes standard with a 20KM fiber transmission distance, with optional distances of 40KM/60KM/80KM and up to 200KM also available.
The S100A-GS series provides 4 RJ45 10/100BaseT(X) interfaces, supporting 10Mbps/100Mbps auto-negotiation, full-duplex/half-duplex auto-negotiation, and MDI/MDIX polarity auto-sensing.
The S100A-GS series is specifically designed for front-end data acquisition, transmitting data to the central equipment room via gigabit fiber optics, making it an ideal choice for distributed network access.
This product adopts a high-performance network switching chip, and all ports support non-blocking, wire-speed packet forwarding.
The product features a metal housing that is aesthetically pleasing, sturdy, and durable, with an operating temperature range of -20°C to 70°C.
All fiber optic Ethernet switch products comply with CCC, CE/FCC, EN 61000 and other standards. Their high stability and high reliability make them an ideal choice for project applications.
Product Features:
l Gigabit fiber optic access switch
l Provides 1 1000BaseFX SC fiber optic interface
n Single-mode or multi-mode optional
n Single-fiber or dual-fiber optional
n Transmission distance selectable from 20 to 200 kilometers
l Provides 4 100BaseT(X) RJ45 electrical ports
l Provides 4 optional PoE ports
n PoE complies with IEEE 802.11af and IEEE 802.11at standards
n Maximum power supply capability per PoE port >30W
n Non-standard PoE version available as an option
l Complies with IEEE 802.3 standard
l Non-blocking wire-speed forwarding between all ports within the switch
l Supply voltage 5V~30V DC
l Operating temperature -20~70°C, operating humidity 5%~95% non-condensing
Technical Specifications:
Item | Specification | Remarks |
Data Ports | ||
Interface | 1 x 1000Base FX | |
S105A-GS：4 x 10/100MbpsT(X) | ||
Data Rate | 10/100/1000Mbps | |
Switching Parameters | ||
Communication Standard | Complies with IEEE 802.3 standard | |
MAC Address Table | 8K | |
Switching Latency | <1us | |
Packet Buffer | 1Mbit | |
Switching Mechanism | Store-and-Forward | |
LED Indicators | ||
Power | Power LED | |
Interface | Link/Act, Speed | |
Connector Types | ||
Optical Port | SC | |
Electrical Port | 10/100/1000BaseT(X) RJ45 | |
Power Connector | 2.1 x 5.5mm DC Power Jack | |
Optical Port Parameters | ||
Optical Port Type | SFP Optical Module | |
Transmission Distance | 20KM, 40KM, 60KM, 80KM, 120KM, 200KM | |
Electrical & Mechanical Characteristics | ||
Power Input | DC 5V~30V | |
Power Consumption | S105A-GS：2.8W | |
Housing | Metal Housing | |
Dimensions (W x H x D) | S105A-GS：132mm x 32mm x 86mm | |
Weight | S105A-GS：0.42KG | |
Installation Method | Wall-mounted | |
Operating Environment | ||
Operating Temperature | -20°C ~ 70°C | |
Storage Temperature | -40°C ~ 85°C | |
Operating Humidity | 5% ~95% （non-condensing） | |
