The IDM-RFlabel intelligent optical fiber distribution frame is usually used for the management of the equipment room ODF optical fiber distribution frame. It is usually managed in conjunction with the equipment room cable database: RFID tags are affixed to the end of the optical cable distribution frame in the equipment room, and the equipment and port number connected by each cable and optical cable are recorded in the database; RFID monitoring antennas are affixed to each corresponding port on the ODF distribution frame. If an optical cable or cable head insertion is detected, the database is consulted to check whether it is the required line; if not, an alarm is raised. Each port is provided with a corresponding indicator LED: red indicates an error, green indicates normal, and no light indicates none

**The IDM-RFlabel 48-port RFID optical fiber distribution frame (abbreviated as IDM-RFlabel) is an equipment room ODF intelligent distribution device developed by Beijing Ruiguang Jiyuan Digital Technology Co., Ltd. As a professional intelligent optical fiber distribution frame and intelligent ODF product, it consists of a 48-port optical fiber distribution rack, passive RFID electronic tags, port monitoring antennas, and tri-color port indicator LEDs; used in conjunction with the equipment room cable database, it provides automatic acquisition, comparison, and security alarms for the connection status of optical cable and cable ports, realizes optical port status monitoring and equipment room ODF intelligent management, and replaces manual paper labels and spreadsheets as the means of identification management.**Key specifications at a glance

: 48-port FC/SC flexible configuration (48 high-density ports in a single rack) · RFID 13.56MHz passive tags (compliant with ISO-14443A, NFC compatible, battery-free) · ≥4 collector interfaces · ≥4 splice trays · Ethernet cascading management · MQTT+MCP interconnection with the equipment room operation and maintenance intelligent agent

What kind of device is the 48-port RFID optical fiber distribution frame? Basic principles of ODF intelligence

The 48-port RFID optical fiber distribution frame is an intelligent patching device built on a conventional ODF optical fiber distribution frame, replacing paper records with RFID identification and electronic marking and turning the connection status of distribution frame ports into data that can be queried and alarmed on. A conventional ODF only performs the physical functions of optical cable fixation, splicing, and termination; what is plugged into a port and whether it is plugged correctly can only be checked by comparing label paper and records, which is costly in manual verification and easily leaves monitoring blind spots. The IDM-RFlabel provides 48 optical fiber ports in a single rack, the FC or SC ports offer flexible configuration according to the actual links in the equipment room, and high-density port management can be completed within the same rack.

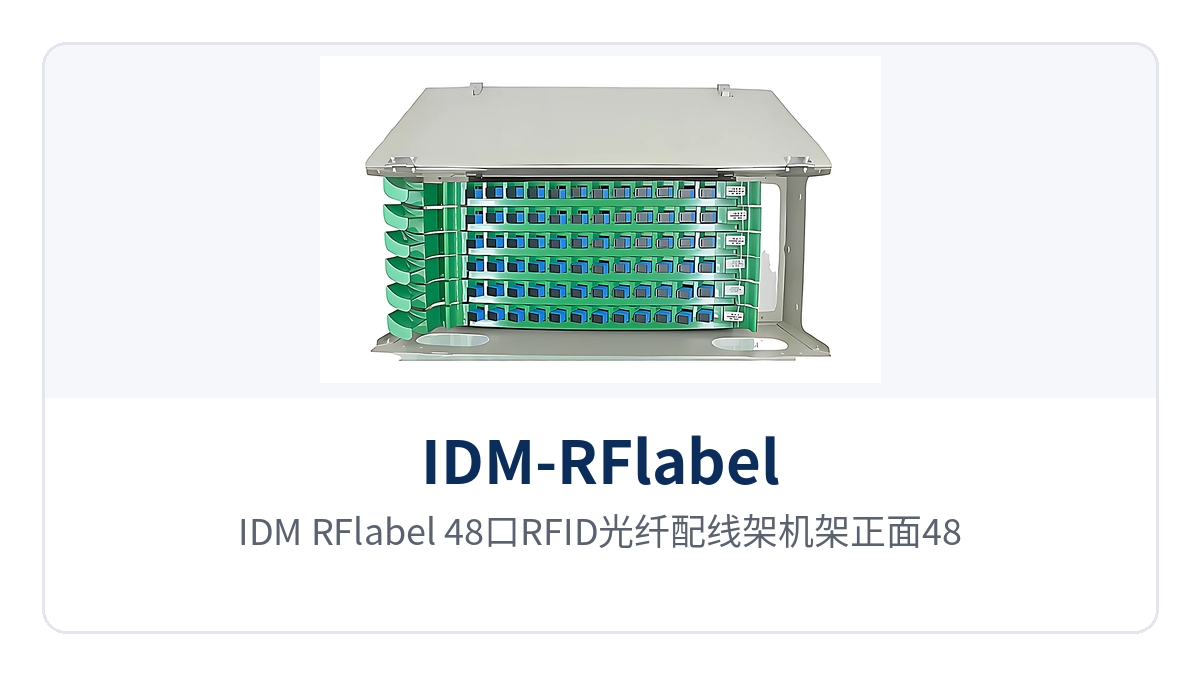

Figure 1: Close-up of the 48 ports and tri-color indicator LEDs on the front of the IDM-RFlabel 48-port RFID optical fiber distribution frame rack

Figure 1: Close-up of the 48 ports and tri-color indicator LEDs on the front of the IDM-RFlabel 48-port RFID optical fiber distribution frame rack

The IDM-RFlabel 48-port RFID optical fiber distribution frame centralizes patching and termination, RFID identification, port monitoring, status alarms, and network management capabilities in a single rack; the equipment room does not need to install a separate identification main unit or alarm box in addition to the existing distribution frame, which reduces cabinet space usage and the amount of secondary cabling, and also reduces equipment stacking and points of failure in private network equipment rooms.

How does the intelligent ODF architecture achieve intelligent optical fiber distribution management?

The value of the intelligent ODF architecture lies in linking identification, acquisition, comparison, alarming, and network management into a closed loop: tags handle identity, antennas handle acquisition, the database handles judgment, and indicator LEDs and network management handle output. The IDM-RFlabel 48-port RFID optical fiber distribution frame provides the following functions for optical port status monitoring and intelligent optical fiber distribution management.	Function
Description	Automatic acquisition of optical fiber port information
Port monitoring antennas automatically read the RFID tags at the cable ends and perform real-time acquisition of the connection status of optical fiber ports; the acquisition results are written to the equipment room cable database	Real-time monitoring of port connection status and security alarms
After a line is inserted, it is compared with the database records; a line that is not the required one triggers an alarm immediately, eliminating the conventional ODF resource monitoring blind spot	Tri-color port indicator LED
Red indicates an error, green indicates normal, and no light indicates no insertion, so on-site work and inspection personnel can determine the insertion result without consulting records	Port status query via network management
O&M personnel can perform a network management query for the current status of each port	48 high-density optical fiber ports
A single rack provides 48 ports, and the FC or SC ports offer flexible configuration, adapting to the high-density optical cable termination requirements of equipment rooms	Passive RFID electronic tag
The tag operates at 13.56MHz, complies with the ISO-14443A standard, and is compatible with NFC; it can store the rack number, device number, port number, remarks, and other information of the connected equipment, and supports offline management and inventory management	Battery-free maintenance-free tag
The electronic tag adopts a passive design, requires no battery replacement, and is maintenance-free throughout its service life	Periodic scanning and silent policy
Passive RFID tags undergo periodic scanning, and scanning stops when the equipment room is unattended during O&M, avoiding interference with radio signals	Low-power antenna design
Low-power antenna radiation is used to distinguish signal tags within a smaller range and to reduce cross-reading between adjacent ports	Linkage with AI recognition on equipment room cameras
It can work with AI recognition on equipment room cameras to perform RFID monitoring when someone is working in front of the distribution frame	Asset information security mechanism
The asset information in the tag carries an information security mechanism, and unauthorized terminals cannot read the asset information	Tag material and adhesive requirements
The tag is made of flame-retardant material, the adhesive sticker is no more than 0.35mm thick, and anti-metal tags are required for metal racks	Multi-rack Ethernet cascading management
The rack has an Ethernet management interface, multiple racks can be managed through Ethernet cascading, and the accompanying software provides a self-test function	Online and offline acquisition methods
Information acquisition has two methods, online and offline; an RFID reader can be used for offline management	IoT communication and interconnection with the O&M intelligent agent

The device communication mode adopts the MQTT protocol, which is suitable for Internet of Things (IoT) products, improving communication stability and efficiency; the network management system supports connection to the equipment room operation and maintenance intelligent agent through the MCP protocol, operational data can be displayed via Chat BI, and line condition prediction and analysis can be performed by combining historical trends and physical characteristics

Key Specifications and Technical Specifications	Item	Parameter/Specification
Description/Applicable Conditions	Optical fiber port capacity	48 ports
The FC or SC ports offer flexible configuration, and high-density port management is completed in a single rack	Port indicator LED	Tri-color status indication
Red for an error, green for normal, no light for no insertion	13.56MHz	Electronic tag frequency band
Complies with the ISO-14443A standard and is compatible with NFC	Electronic tag power supply access	Passive design
No battery replacement required, maintenance-free throughout its service life	Tag adhesive thickness	No more than 0.35mm
Anti-metal tags are required for metal racks; the tag is made of flame-retardant material	Number of collector interfaces	≥4
Used for connecting port monitoring antennas	Number of splice trays	≥4
Splicing and slack storage capacity	Management interface	Ethernet management interface
Supports multi-rack management through Ethernet cascading	Communication protocol	MQTT (device communication) / MCP (interfacing with the intelligent agent)
Supports interconnection with the equipment room operation and maintenance intelligent agent; operational data can be displayed via Chat BI	Power supply mode	Not yet recorded in the knowledge base
Subject to the manufacturer's technical documentation and commercial confirmation	Overall power consumption	Not yet recorded in the knowledge base
Subject to the manufacturer's technical documentation and commercial confirmation	Enclosure dimensions and installation method	Not yet recorded in the knowledge base
Subject to the manufacturer's technical documentation and commercial confirmation	Operating temperature and storage environment	Not yet recorded in the knowledge base

Subject to the manufacturer's technical documentation and commercial confirmation

The interface capacity, number of collectors, and number of splice trays in the table above are taken from the product documentation; the number of interfaces and their arrangement order are subject to the manufacturer's technical documentation and the physical markings on the equipment.

What differentiated value do 48 high-density ports and Ethernet cascading bring?

The IDM-RFlabel 48-port RFID optical fiber distribution frame concentrates 48 FC/SC ports with flexible configuration, 13.56MHz passive RFID tags, and Ethernet cascading management in one rack: port capacity, tag identification, status acquisition, and network management no longer belong to multiple standalone devices, and the equipment room does not need to add identification main units, alarm boxes, or separate network management boxes on top of the existing ODF, thereby reducing equipment stacking and points of failure and meeting the requirements of electric power, rail transit, military, government, and carrier private network equipment rooms for patching security and centralized management of links.	Differentiation Point	Product Implementation
Value for Private Network Equipment Rooms	48 FC/SC ports with flexible configuration, high-density port management in a single rack	A single rack provides 48 optical fiber ports; the FC or SC ports offer flexible configuration according to the actual link ratio, and the port monitoring antennas and tri-color indicator LEDs correspond one to one
The equipment room completes more optical cable terminations within limited cabinet space; during upgrades the ratio can follow the existing network format, and there is no need to equip a separate rack for different interfaces	13.56MHz passive RFID tags, battery-free and maintenance-free throughout their service life	The tag operates at 13.56MHz, complies with ISO-14443A, and is compatible with NFC; it draws power from the radiation of the reader/writer, and can store the rack number, device number, port number, and remarks
The tags require no battery replacement and are unaffected by damage, falling off, or blurry print of paper labels; they are maintenance-free throughout their service life, reducing long-term O&M costs for the equipment room	Ethernet cascading management, unified real-time monitoring of multiple racks through one network management system	The rack has an Ethernet management interface; multiple racks are cascaded over Ethernet and aggregated into the same network management system, port status is reported in real time, and alarms can be pushed

Multiple racks distributed at different stations are monitored uniformly by one network management system; patching status is visible in real time, and O&M personnel do not need to perform on-site verification site by site

Typical Application Scenarios

Electric Power and Rail Transit Private Network Equipment Room Scenario

Electric power dispatch and rail transit private network equipment rooms have a large number of optical cables and frequent maintenance and re-routing; dispatch telephones, telecontrol, and protection information often share the same set of optical cable resources, and a single patch cord inserted into the wrong port on the distribution frame can affect a service channel — this is precisely the link where monitoring blind spots occur most frequently in private network equipment rooms. As a professional optical multiplexer manufacturer, Ruiguang Jiyuan (Raytrans) has introduced the IDM-RFlabel 48-port RFID optical fiber distribution frame for such scenarios: after patch cord insertion, it is compared with the cable database, and if the line does not match, an alarm is raised and the red indicator LED of the corresponding port lights up, so O&M personnel can confirm it at the rack without going back to the office to check records. Electric power substations and rail transit stations are distributed along the line, and on-duty personnel are limited; multi-rack Ethernet cascading management lets the port status of the distribution frames at each station aggregate into a single network management system, turning optical fiber patching status from manual records into remote visualized O&M, and providing reliable product showcase and implementation support for government private network optical fiber communication solutions.

Military and Government Classified Equipment Room Scenario

In military and government classified equipment rooms, the scope of personnel who may access patching information is explicitly restricted, while distribution resources must be intelligently manageable and support traceable operations. The IDM-RFlabel 48-port RFID optical fiber distribution frame has undergone an engineering adaptation at the tag level: the asset information in the tag carries an information security mechanism, and unauthorized terminals cannot read the asset information, so classified assets are managed through controlled reading of RFID tags; the tag is made of flame-retardant material with an adhesive sticker no more than 0.35mm thick, and anti-metal tags are required for metal racks. The device can work with AI recognition on equipment room cameras to start RFID monitoring when someone is working in front of the distribution frame, leaving a trace of patching operations in the database; together with online and offline acquisition methods, a classified equipment room can complete offline inventory counting with an RFID reader within an explicitly authorized scope and then report uniformly through network management, fully meeting the strict requirements of government private network optical fiber communication solutions for security and traceability.

Carrier Edge and Unattended Site Scenario
