IDM_OPTIMUX_SKY Broadband Fiber Optic Multiplexing Module
The IDM_OPTIMUX_SKY is a broadband and narrowband integrated optical fiber multiplexing transmission module, with a data multiplexing bandwidth of up to 250M on the fiber. This module can be customized to industrial-grade standards, with user interfaces using robust connectors. The expansion interfaces can be customized for a variety of services.
Gallery
Overview:
The IDM_OPTIMUX_SKY is a broadband and narrowband integrated optical fiber multiplexing transmission module, with a data multiplexing bandwidth of up to 250M on the fiber. This module can be customized to industrial-grade standards, with user interfaces using robust connectors. The expansion interfaces can be customized for a variety of services.
Product Features:
The basic version of the IDM_OPTIMUX_SKY provides users with 2 channels of Ethernet sharing 100M bandwidth, 2 channels of automatic telephone interfaces, 2 channels of RS422 interfaces, etc.
The 2 telephone interfaces can be optionally configured with FXS for connecting telephones, FXO for connecting to a switchboard, or MAG for connecting magneto telephones, and can also accommodate two-wire audio, etc.
An optional 1-channel HiFi high-fidelity stereo audio channel is also available.
The two expansion interfaces can serve as bidirectional analog video input/output interfaces. They can also be expanded to support up to 4 channels of E1 interfaces, or expanded into 8 channels of I/O input/output components. And more!

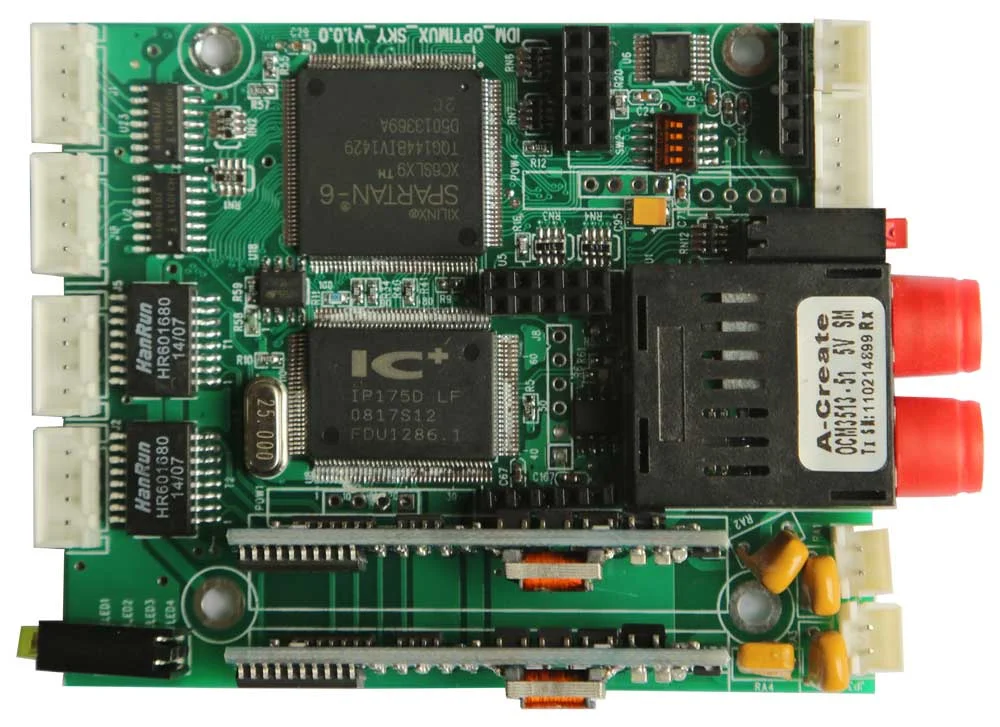

The PCB board dimensions are 86mm*71mm, comparable to the size of a business card (90mm*54mm), making it easy to install into user equipment.
The board operates on +5V power supply with a current of 2A.
The fiber optic interface can be configured as single-fiber or dual-fiber.
It is widely used in aviation, maritime, communication relay, security surveillance, and other fields.

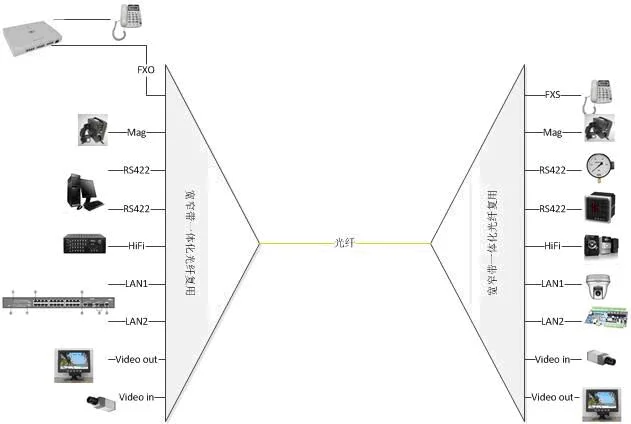

Application Diagram:
