IDM OMP3500
IDM OMP3500
Provides 2.5G optical interfaces, 19-inch 1U standard chassis, (up to 24 groups of E1 + 2 channels of physically isolated wire-speed 1000M Ethernet + 4 channels of physically isolated wire-speed 100M Ethernet + up to 3 PCM service plug-in cards of 8/10 channels each) with standard SNMP network management interface. The IDM OMP3500-30F physically isolated Gigabit optical terminal features easy installation and is suitable for various application environments.
I. Overview

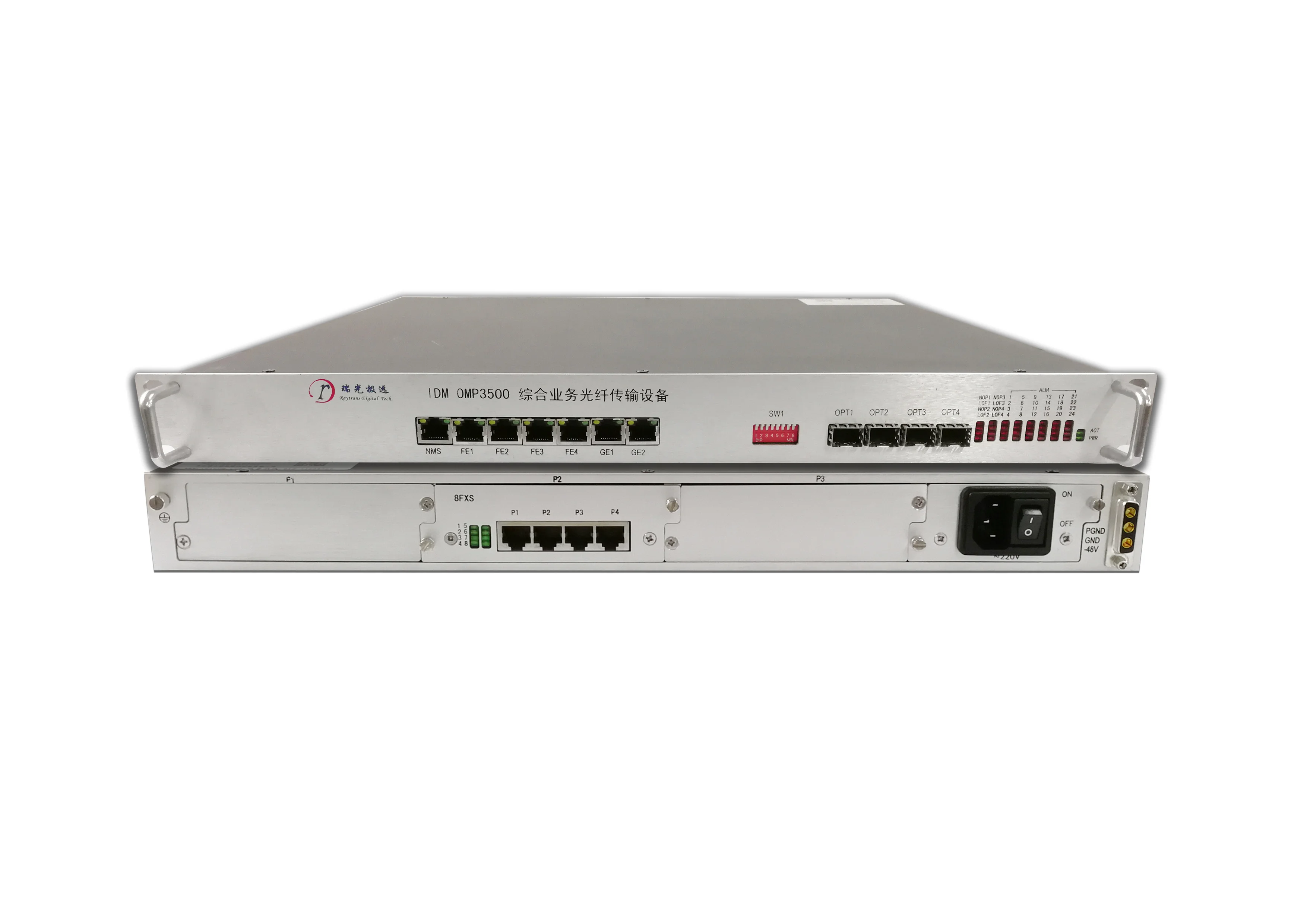

The IDM OMP3500-30 Integrated Service Optical Fiber Transmission Equipment is one of the PCM integrated service transmission equipment series designed by our company using large-scale integrated circuit technology. This equipment utilizes standard optical fiber transmission channels (G.703 standard) and adopts the PCM30/31 format, supporting dual-fiber mutual backup. The IDM OMP3500-30 Integrated Service Optical Fiber Transmission Equipment supports up to 24 groups of E1 + 2 channels of physically isolated wire-speed 1000M Ethernet + 4 channels of physically isolated wire-speed 100M Ethernet + up to 3 PCM service plug-in cards of 8/10 channels each. The IDM OMP3500-30 Integrated Service Optical Fiber Transmission Equipment provides a standard SNMP network management interface. In addition, the IDM OMP3500-30 Integrated Service Optical Fiber Transmission Equipment features easy installation and is suitable for various application environments.
II. Product Features
Standard 19-inch 1U chassis architecture for easy installation;
Provides 2 x 2.5G SFP optical interfaces, supporting optical port 1+1 protection;
Up to 24 groups of E1 + 2 channels of physically isolated wire-speed 1000M Ethernet + 4 channels of physically isolated wire-speed 100M Ethernet + up to 3 PCM service plug-in cards of 8/10 channels each;
Provides 2 independent wire-speed 1000M Ethernet interfaces;
Centralized equipment provides a standard SNMP network management interface;
Equipped with comprehensive function control switches and alarm indication features.
III. Technical Specifications
Optical Interface
Interface Type | SFP | Fiber Mode | Single-mode (Multi-mode optional) |
Fiber Rate | 2.5G | Wavelength | 1310nm/1550nm |
Transmit Power | -1~-3dBm | Receiver Sensitivity | Better than -24dBm |
E1 Interface
Line Rate | 2048Kbps | Line Code | HDB3 |
Standard Protocol | SupportsITU-T G.703 | Impedance | 75Ω |
Frame Structure | PCM30/31 | Mode | Transparent |
Ethernet
Interface Type | RJ45 | Transmission Rate | 10M/100M/1000M |
Standard Protocol | SupportsIEEE802.3 | Operation Mode | Full/Half Duplex/Auto-Negotiation |
FXO/FXS Interfaces
Audio Frequency Range | 300Hz~3400Hz | Impedance | Three-element Complex Impedance200Ω+560Ω//0.1μF |
Companding Law | A-law per ITU G.711 | Loop Current | 25mA/channel |
Power Supply and Power Consumption
Power Supply | DC-48V / AC 220V / Dual Power Supply | Power Consumption | ≤100W |
Environmental Conditions
Operating Temperature | 0ºC～40ºC | Humidity | ≤90% (Non-condensing) |
