Due to the different working principles between five-party intercom telephones and regular telephones, ordinary telephone optical terminals cannot be used. Raytrans' dedicated five-party intercom interface card can match the signaling of five-party intercom units, enabling five-party communication between the central office and the machine room, car, car top, and pit. Five-party intercom optical terminals include the 2-channel IDM NT202(DT), 4-channel IDM NT104(DT), 8-channel IDM ENT448(DT), and 30-channel IDM 30EN(DT), among others. They meet the signal transmission requirements from elevator group machine rooms to the central office monitoring room of various capacities, and are also suitable for fiber access transmission in scenarios such as monitoring room relocation or consolidation.
IDM NTD421 (DT) Elevator Five-party Intercom Optical Terminal Overview
With the expansion of modern residential communities, the distance between the central office monitoring room host duty room and the elevator machine room may exceed the transmission distance of five-party intercom twisted pair cables. As a result, the communication mode between the central office and the elevator machine room has undergone various changes. One approach is to use GSM transmission, which is constrained by GSM's charging model and is not economically reasonable.
Beijing Ruiguang Jiyuan Digital Technology Co., Ltd. provides two solutions based on fiber optic and IP communication networks to meet user needs in different locations.
Elevator five-party intercom telephone optical terminal mode
Due to the different working principles between five-party intercom telephones and regular telephones, ordinary telephone optical terminals cannot be used. Raytrans' dedicated five-party intercom interface card can match the signaling of five-party intercom units, enabling five-party communication between the central office and the machine room, car, car top, and pit.
Five-party intercom optical terminals include the 2-channel IDM NT202(DT) elevator intercom optical terminal, 4-channel IDM NT104(DT) elevator intercom optical terminal, 8-channel IDM ENT448(DT) elevator intercom optical terminal, and 30-channel IDM 30EN(DT) elevator intercom optical terminal, among others. They meet the signal transmission requirements from elevator group machine rooms to the central office monitoring room of various capacities, and are also suitable for fiber access transmission in scenarios such as monitoring room relocation or consolidation.
An independent Ethernet channel is provided. A dedicated power supply is used to connect to the elevator power source.
IDM NTD421 (DT) Elevator Five-party Intercom Optical Terminal Equipment Diagram
IDM NTD421 (DT) Elevator Five-party Intercom Optical Terminal Residential Application Diagram

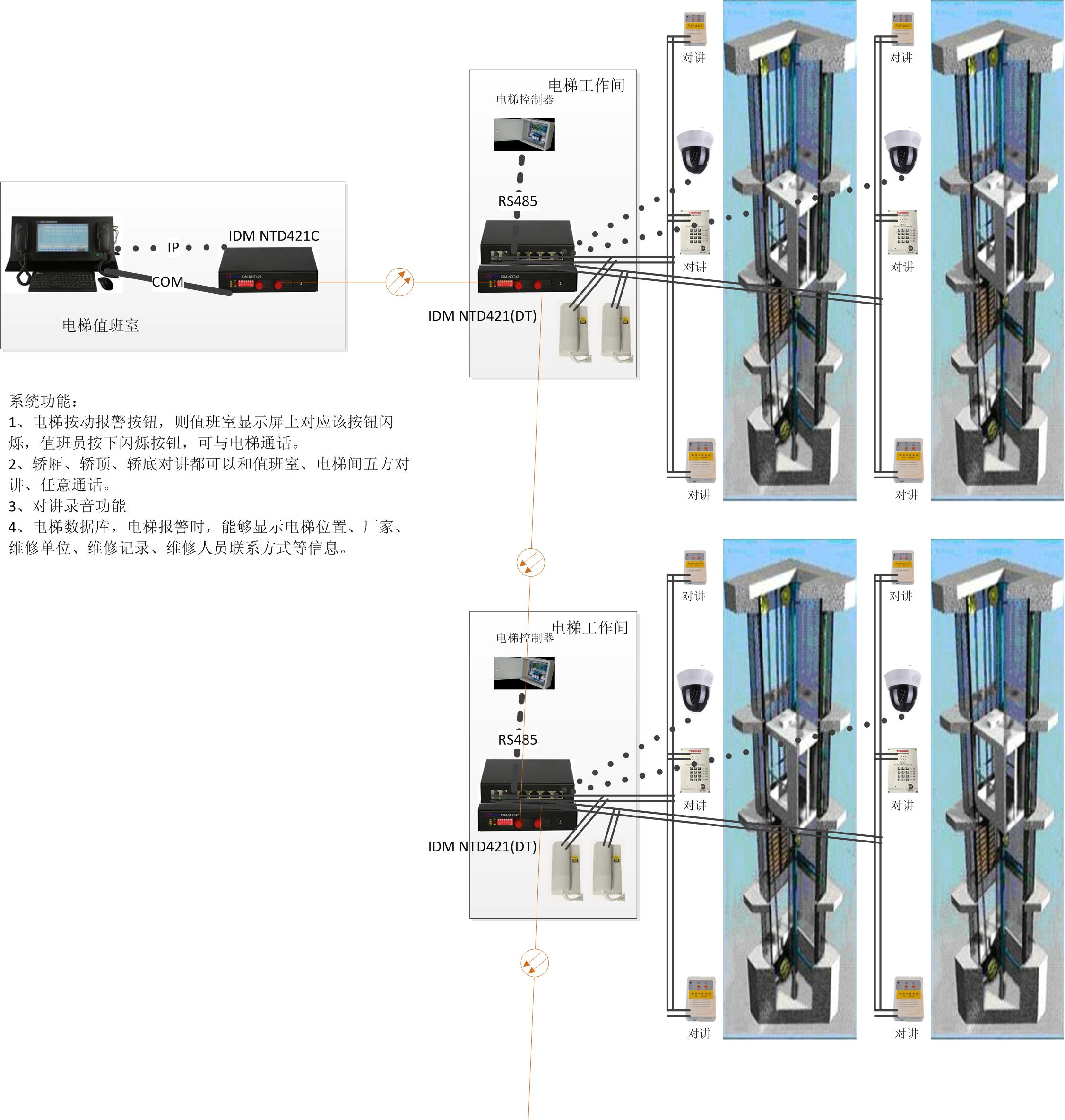

IDM NTD421 (DT) Elevator Intercom Optical Terminal Construction Diagram
