Overview

The IDM MUX180 Optical-Electrical Integrated Transmission Equipment is a new-generation integrated transmission device developed by our company, based on MSTP and PCM technologies. It integrates MSTP transmission and PCM multi-service access functions into one unit, meeting the diverse requirements of users for broadband and narrowband service transmission and access over optical fiber. With SDH ring network protection, it provides more reliable communication protection. The IDM MUX180 integrated unit can directly connect remote telephones, computers, cameras, and other terminals. At the remote end, it can also be extended via optical ports to connect PDH optical terminals, optical modems, and multi-service optical terminals, adapting to various network topologies.

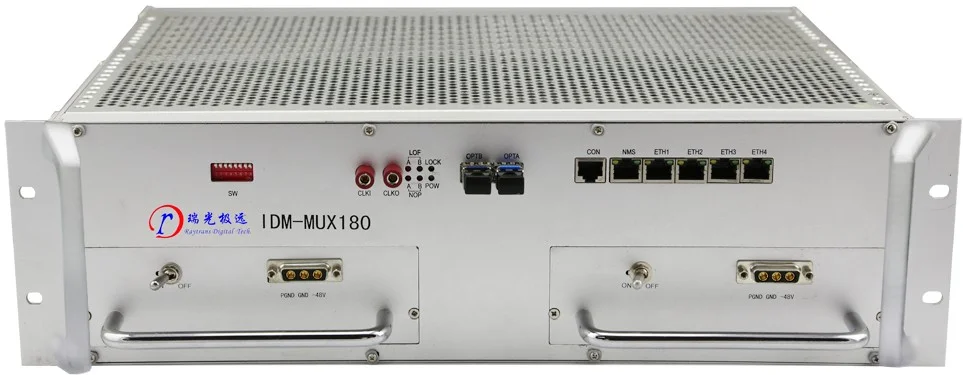

Figure 1 IDM MUX180 Optical-Electrical Integrated Transmission Equipment Front Panel Diagram

Product Features

Ø 19-inch standard 3U chassis with plug-in card design; provides 17 user plug-in card slots;

Ø Two SFP-type STM-1 optical interfaces, supporting SDH ring and chain network topologies, with tributary 1+1 channel protection;

Ø Provides 252×252 VC-12 level non-blocking cross-connection among TDM interface services, supporting unidirectional, bidirectional, and broadcast services;

Ø The IDM MUX180 Optical-Electrical Integrated Transmission Equipment supports access of up to 180 channels of 64K timeslot services;

Ø Provides 4 groups of physically isolated EoS Ethernet interfaces, each with configurable bandwidth of N×VC12 (N=1~50); each group also reserves 1 extended Ethernet port; pairs with the 8FE card to expand the number of Ethernet interfaces;

Ø Provides 5-in-1 2-wire audio card: 3U-8MVOICE; each card provides 8 channels of 2-wire audio; each 2-wire audio channel can be configured as FXO/FXS/hotline/magneto/2100Hz magneto mode;

Ø Clock source can be selected from line clock, external clock (2Mbit/s or 2MHz), and free-running oscillation;

Ø The IDM MUX180 Optical-Electrical Integrated Transmission Equipment provides 17 user slots, accommodating various service cards, supporting access of PDH, E1, FXO/FXS, V.24/V.28/V.35, EM2/4, hotline telephone, magneto telephone, high-fidelity audio, X.50, and 10M/100M Ethernet voice and data services;

Ø The IDM MUX180 Optical-Electrical Integrated Transmission Equipment can accommodate the 3UMPCONV user optical port extension card and the WG300 signaling switching card;

Ø Standard model provides non-repeatered transmission distance of 40 kilometers; customized options are available for distances beyond this range;

Ø Provides Ethernet management channels based on DCC, E1, N*64K, and TCP/IP, with SNMP simple network management protocol support;

Ø DC -48V and AC 220V power supply options, with optional DC+DC, AC+AC, AC+DC dual backup power supplies;

Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode (multi-mode optional)
Tx/Rx Rate	155.52Mbps/155.52Mbps	Tx/Rx Wavelength	1310nm/1550nm
Output Power	-12~-6dBm	Receiver Sensitivity	Better than -32dBm
Transmission Distance	20Km, with optional long-distance optical modules available for extended fiber transmission

E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

Ethernet

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression Rate	A-law per ITU G.711
Impedance	Triple Complex Impedance 200Ω+560Ω//0.1μF	Loop Current	20mA/channel

Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant withITU G.703 Recommendation

EM2/4-Wire Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	A-law per ITU G.711	Return Loss	Not less than 18dB

Magnetic Ring Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding Law	A-law per ITU G.711	Return Loss	Not less than 18dB

V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Compliant withCCITT V.28protocol

V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps（n=0～31）	Terminal Interface	Compliant withISO2593Specification

Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Power Consumption

≤90W

Environmental Conditions

Operating Temperature

-20oC ~+50oC

Relative Humidity

0~95% (non-condensing)

Product Dimensions

Length×Depth×Height

482×309×132(mm)

Application Example 1

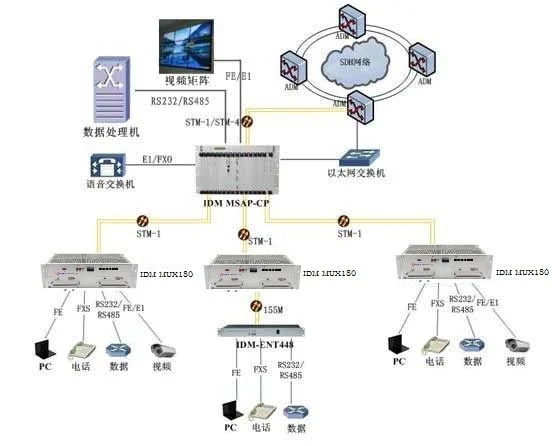

Figure 2 Star Network Application Diagram

The IDM MUX180 can form a star network with other SDH devices to provide users with telephone, data, IP, and video services.

Application Example 2

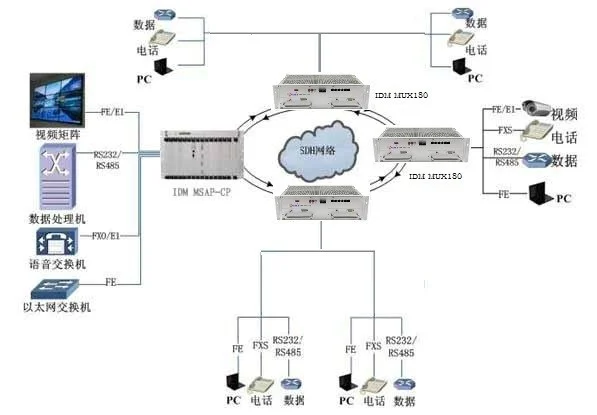

Figure 3 Ring Network Application Diagram

The IDM MUX180 can form a ring network, utilizing the 1+1 channel protection mechanism to ensure reliable communication of telephone, data, IP, and video services to users.
