IDM MUX-3200 Broadband/Narrowband Integrated Service Multiplexing and Demultiplexing Equipment

I. Product Introduction

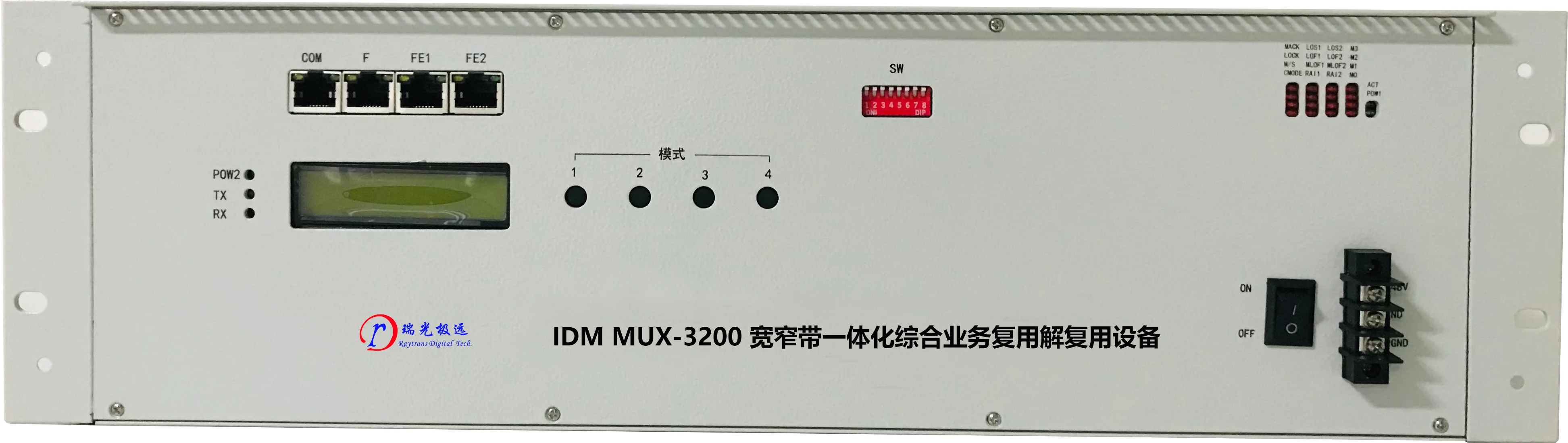

The IDM MUX-3200 is a modular integrated service multiplexing equipment housed in a 19-inch 3U chassis, designed for easy installation in equipment rooms or vehicles. Utilizing TDM multiplexing technology, it features low information latency and fixed transmission delay for data and voice. All access services occupy physically isolated independent channels, ensuring information security and confidentiality. It multiplexes various data, voice, video, network and other broadband and narrowband services into a single high-speed data stream (which can be E1, V.35 transmission bandwidth), then transmits bidirectionally via DDN leased lines, microwave, satellite and other communication links. It is easy to interface with secure communication equipment.

The IDM MUX-3200 trunk transmission interface can adopt either E1 interface or V.35 interface. The V.35 interface supports data rates up to 10Mbps, and with dual V.35 interfaces for mutual backup, it can be applied in high-reliability communication transmission environments.

Available service interfaces include transparent G.703 E1 interfaces, multiple physically isolated bridge interfaces, HDMI audio/video codec interfaces, synchronous/asynchronous EIA-232/EIA-422/EIA-429 interfaces, as well as telephone interfaces including FXO, FXS, standard magneto interface, 2100Hz magneto interface, and E&M 2-wire/4-wire audio interfaces.

The equipment features built-in hardware echo cancellation circuitry supporting G.168 protocol, capable of eliminating transmission delay echo within 800ms.

The product comes with a built-in service telephone dispatch system. Each unit provides 2 service telephone interfaces, supporting dialing between service telephones, as well as dispatch operations from the dispatch console including forced release, barge-in, and call transfer for service telephones.

It provides point-to-point bidirectional transmission of data, network, video, and voice, supporting bidirectional subscriber line provisioning.

It can be used for public security satellite communication, firefighting satellite communication, military satellite communication, microwave communication, etc. It is suitable for satellite communication vehicle and microwave communication vehicle retrofitting.

II. Performance Features

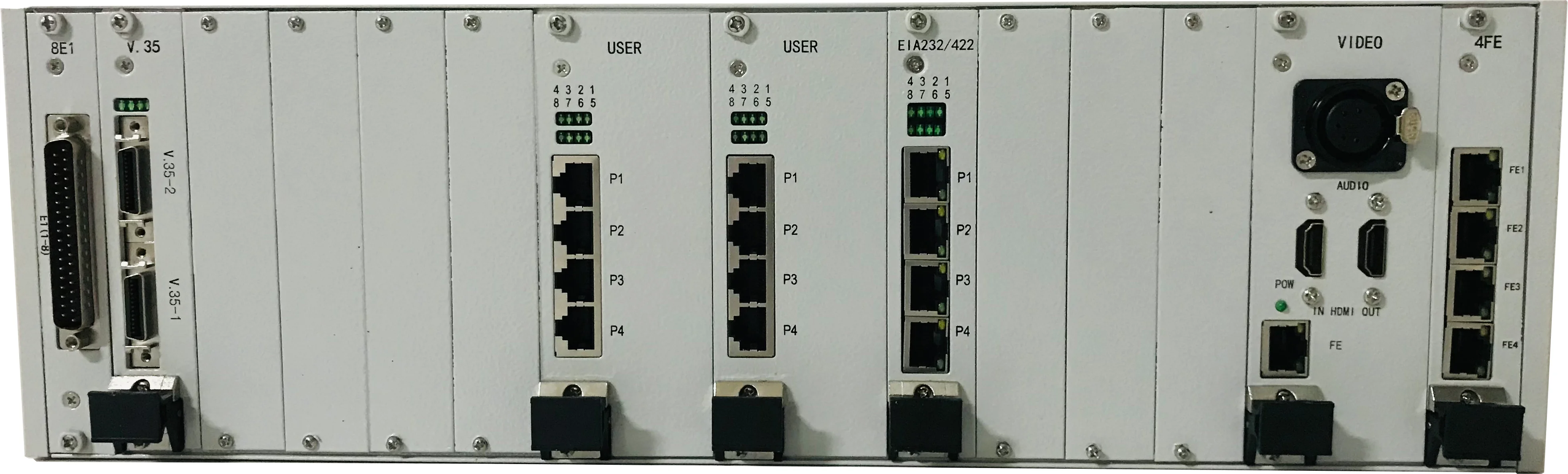

(1). Modular design, 19-inch 3U chassis, supports up to 15 service plug-in cards;

(2). Provides 2 V.35 high-speed serial trunk interfaces, 1 primary and 1 backup, with data rates up to 10Mbps; when the trunk primary/backup protection function is not enabled, the backup V.35 interface can also be used as a service interface;

(3). Provides optional E1 trunk interface for interfacing with traditional PDH, SDH optical terminals, etc.;

(4). System clock supports DTE, DCE, local clock, external clock, user port clock and other clock modes;

(5). Provides service communication dispatch system, supporting dialing and voice consultation between service telephones; supports voice dispatch services from the dispatch console including one-key direct calling, broadcast, forced release, barge-in, transfer, roll call, polling, intercom, etc. for service telephones;

(6). Equipment supports network management system based on SNMP interface;

(7). E1 card provides 8 G.703 E1 interfaces for E1 trunk transmission or transparent E1 interface pass-through;

(8). Audio card provides 4 E&M 2-wire/4-wire interfaces;

(9). Bridge card supports 4 groups of physically isolated 10/100M Ethernet interfaces, supporting end-to-end bridging;

(10). Video card provides 1 HDMI input and 1 HDMI output; video is encoded/decoded in H.264 format and then connected to the network port;

(11). Serial port card provides 4 serial interfaces, supporting HDLC, transparent synchronous data and asynchronous data, with data rates up to 115200bps;

(12). Voice card provides RJ45 connectors, supporting 8 channels of analog telephone FXO/FXS;

(13). LTE gateway access card, supporting 2~4 channels of 4G LTE access;

(14). Front panel provides input keyboard, LCD display and LCD device status indication;

(15). Multi-level lightning protection for power supply/interfaces, suitable for harsh application environments.

III. Typical Networking Diagram

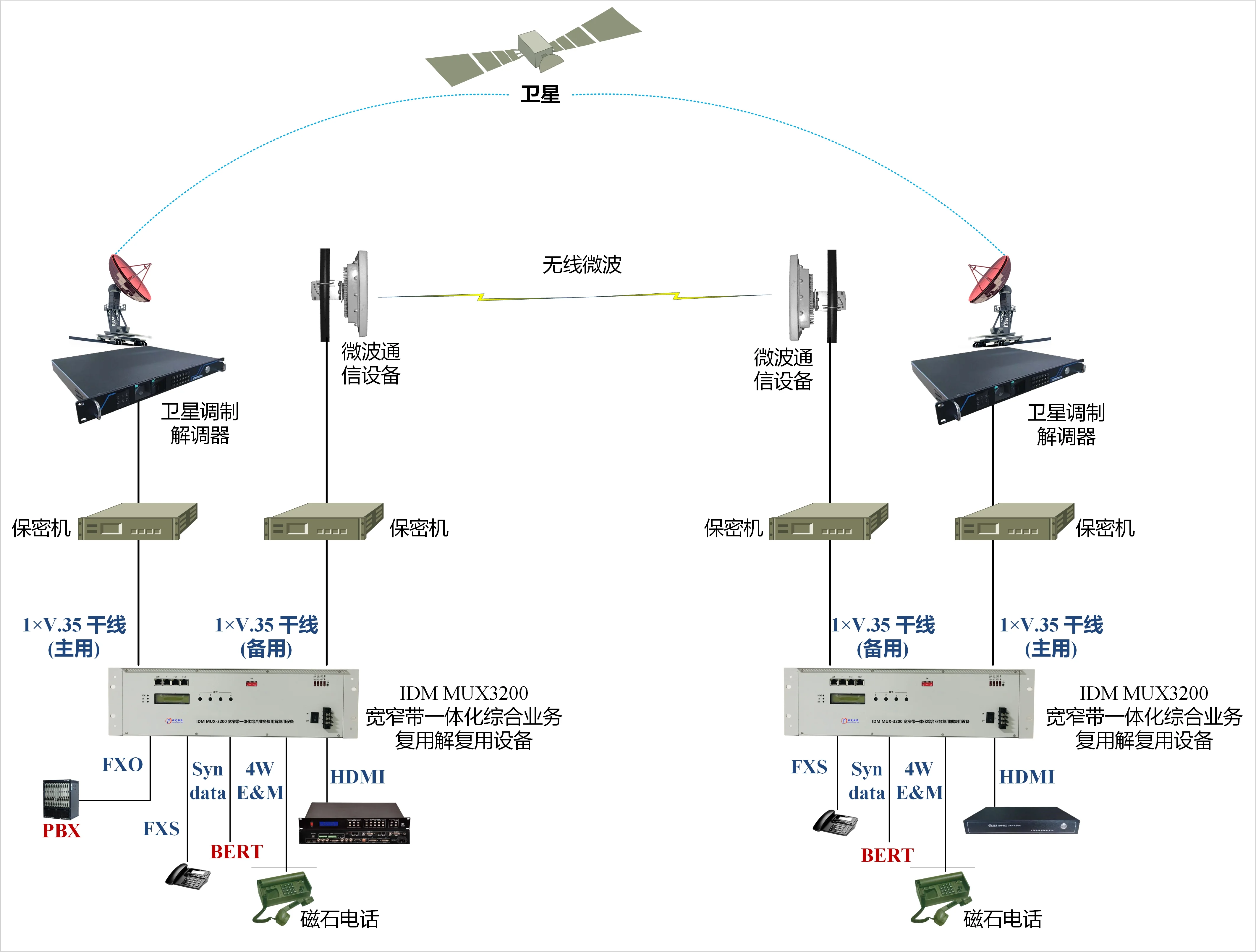

The equipment supports multiplexing of data, voice, and LAN communication services into a single high-speed data stream, then transmitting bidirectionally via DDN leased lines, microwave, satellite and other communication links.

IV. Technical Specifications

4.1 Trunk Serial Interface

• Interface Standard: V.35, supports dual-port mutual backup;
• Connector Type: V.26, provides DB25 conversion cable;
• Data Rate: For rates below 2.048M, the rate step is 64Kbps; for rates above 2.048M, the rate step is 256kbps, up to 10Mbps;
• Quantity: 2

4.2 E1 Interface

• Interface Standard: G.703 / G.704
• Connector Type: DB37, provides DB37 to micro-coaxial head converter
• Data Rate: 2.048Mbps
• Quantity per Card: 8 E1 interfaces/module (supports up to two card slots)

4.3 Serial Interface

• Interface Standard: EIA-422/EIA-232;
• Connector Type: 4 RJ45 physical interfaces, provides DB25 conversion cable, provides 4 DB25 interfaces;
• Asynchronous Interface Rate: Configurable to 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;
• Synchronous Interface Rate: Configurable to 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps.
• Quantity: 4.

4.4 Analog Voice Interface

• Connector Type: RJ45
• Interface Type: FXS, FXO, E&MVOC, MSG
• Coding Protocol: G.711(64k)
• Compression Rate: A-law in ITU G.711
• Audio Range: 300Hz―3400Hz
• Impedance: Balanced 600Ω
• Quantity: 8 voice channels/card

4.5 LTE Gateway Access Card

• Purpose: Used for seamless connection between LTE mobile networks and VoIP voice networks, suitable for FDD/TDD 4G mobile networks, and inherits SMS send/receive and USSD interaction functions of mobile terminals. Adopts standard SIP protocol, capable of interfacing with various SIP-based softswitches, realizing signaling interaction and voice call functions between mobile networks and VoIP voice networks;
• Capacity: Supports 2~4 channels of 4G LTE access;
• Protocol: SIP v2.0, RFC3261;
• Call Types: Mobile network to VoIP, VoIP to mobile network;
• Network Support: NAT traversal, Dynamic NAT, Static NAT, STUN, SMPP (Point-to-Point Short Message Protocol);
• DTMF Method: Signal/RFC2833.

4.6 Universal Voice Card

• Provides 4 audio module interfaces (occupying 2 card slots), each module can provide up to 2 audio modules with the same function, such as 2*FXS, 2*FXO, 2*MSG (magneto), 2*2100HZ (2100Hz carrier magneto);
• Connector Type: RJ45.

4.7 Ethernet Interface

• Network Connection Mode: End-to-end bridging
• Standard: IEEE802.3
• Connector Type: RJ45
• Data Rate: 10/100Mbps
• Number of Interfaces: 2 groups, each group provides 2 RJ45 interfaces, with mutual isolation between groups. Layer 2 data switching is provided between interfaces within the same group. The bandwidth of each Ethernet channel is configurable as N*64Kbps (N=1~128).

4.8 HDMI Interface

• Audio Encoding
  • Sampling Rate: 16k, 32k, 44.1k, 48k
  • Bitrate Range: Arbitrarily settable, recommended 64k~256kbps
  • Encoding Format: AAC, PCMA, MP3, MP2
  • Gain Adjustment: -24db ~ +24db, default 0: no gain adjustment
• Video Encoding
  • Bitrate Range: 256K-4Mbps
  • Bitrate Control: CBR, VBR, AVBR, FIXQP
  • Encoding Format: H.264, H.265
  • Encoding Protocol: H.265 Main Profile Level 5.0, H.264 Baseline/Main/High Profile Level 5.1
  • Smart Encoding: SmartP, DualP, ROI
• HDMI Input Capability: 4K30
• Encoding Capability: 4K30x3 or 1080P30x12
• Frame Type: I/P
• Decoding Capability: 1080P30x8

4.9 Media Gateway Card

• Purpose: Used for transmitting voice services over IP channels;
• Supported Audio Interface Types: Including FXO/FXS, GSM/CDMA/WCDMA, trunking interface/vehicle radio/handheld radio, PTT interface, audio/shortwave/ultra-shortwave, E&M interface, magneto interface;
• Total Number of Supported Audio Interfaces: 32 channels;
• VoIP Protocol: SIP and IMS;
• Voice Codec: Codec: G.711 U-Law and A-Law, G.711 Appendix 1, G.729 Annex A and Annex B;
• Fax Protocol: T30, T38, transparent transmission;
• Network Protocol: IP, NAT, ICMP, ARP, HTTP, BOOTP, FTP, TFTP, DHCP, PPPOE, SNMP, Diff-Serv;
• Voice Processing Technology: Voice Activity Detection (VAD), Comfort Noise Generation (CNG), Echo Cancellation G.168, etc.

4.10 Audio Dispatch Server Card

• Purpose: Used for audio interface registration, automatic service switching, priority management, etc.;
• Capacity: Default supports 50 IP user registrations, customizable;
• Service Types: Supports transmission and switching of voice, video, and short messages; supports auto attendant; supports voice conference groups; video calls;
• Voice Service Functions: Monitoring, blind transfer, attended transfer, call forwarding, call waiting, ring group, recording, forced release, barge-in, roll call, polling, etc.
• Total Concurrent Voice Channels: 25;
• Protocol: SIP (RFC3261), IAX2;
• Transport Protocol: UDP, TCP, TLS, SRTP;
• Codec: G711 (alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM, iLBC, H263, H263P, H264, MPEG4; DTMF In-band, RFC4733, RFC2833, SIP INFO;
• Network Support: Static IP, DHCP, VPN, Firewall, VLAN, DDNS, PPPoE, QoS, Static NAT, STUN;
• Firewall: Supported;
• T.38 Fax: Supported.
