IDM MSTP155

Overview:

The IDM MSTP155-24 Multi-Service Transport Platform is a new generation of products based on SDH/MSTP technology launched by our company in response to market demand. It can meet the needs of users for broadband and narrowband multi-service fiber optic transmission and access, while also satisfying higher-capacity user requirements and providing more reliable communication protection. The IDM MSTP155-24 can directly interface with remote PDH optical terminals, optical modems, and multi-service optical terminals, adapting to various network topologies. It can serve as a compact MSTP device integrating multi-service access, SDH transmission, and PDH optical access functions. The concise and comprehensive network management functions enable configuration, fault query, and data statistics for this series of equipment, with real-time monitoring of network operation status. Additionally, industrial-grade components and comprehensive EMC and interface protection designs are adopted throughout.

Product Features:

 Standard 19-inch 1U chassis structure, easy to install;
 Two STM-1 optical interfaces, providing 1+1 channel protection;
 2 channels of n×64K (n=1~31) V.35/V.11 interfaces;
 Integrates SDH optical transmission, PCM multiplexing, and Ethernet access in one multi-service platform;
 Supports up to 4 physically isolated Ethernet channels, enabling N×E1 bandwidth bundling with flexible allocation;
 Provides 3 service card slots, optional 8E1 interface card, USER card, 8-channel telephone interface card, 8-channel RS232/RS485/RS422 interface card;
 Adopts plug-in card design, providing multiple voice and data services through interface cards with strong upgradeability;
 Supports point-to-point, chain, and ring networking topologies, and can also be jointly networked with centralized MSTP systems;
 Compliant with ITU-T G.813 standard, fully meeting requirements for timing accuracy, pull-in/pull-out, noise generation, noise tolerance, transfer characteristics, and long/short-term phase response holdover mode;
 Features comprehensive network management functions with online real-time monitoring.

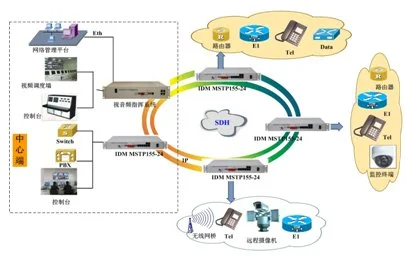

Application Networking Diagram:

                         **IDM MSTP155-24 Application Diagram in the [Command & Dispatch](/en/solution/) System**
