IDM MSAP-G2CP SDH Multi-Service Access Platform

Overview:

The IDM MSAP-G2CP Multi-Service Access Platform is a new generation product based on SDH technology launched by our company in response to market demand. It supports access to multiple services, providing up to 12 STM-1 uplink interfaces upward and 36 optical interfaces downward. The plug-in card types include: E1-USER card, ETH-USER card, PD card, Gigabit Optical Switching card, ODXC card, CP-21/42E1 card, EOSEOP card, 64K-USER card, etc. The entire unit adopts a plug-in card structure, allowing configuration of different quantities and types of tributary optical cards as needed, which not only reduces initial investment but also facilitates future expansion, upgrades, and maintenance.

Product Features:

Can be used as an ADM or TM device

Provides up to 48 STM-1 rate optical interfaces

The two ODXC cards on the backplane provide Ethernet network management and serial port network management aggregation functions, with hot-standby capability, serving as primary and standby cards with automatic or manual switching

The ODXC card provides full cross-connect capability for 16 STM-1 services, along with alarm reporting and logging capabilities

Each PD card provides 4 Ethernet interfaces and 20 groups of E1 interfaces

Provides channelized E1 and Ethernet service access

Supports full VC-12 cross-connection

The SGX signaling gateway card provides full cross-connect capacity for 63 E1 channels

Supports Synchronous Equipment Timing Source (SETS), with optional tracking of optical line timing source or external synchronization input, provides external synchronization output, and supports automatic timing source switching based on faults or SSM

Supports path protection and subnetwork connection protection, with protection switching times superior to international standards

Application Example:

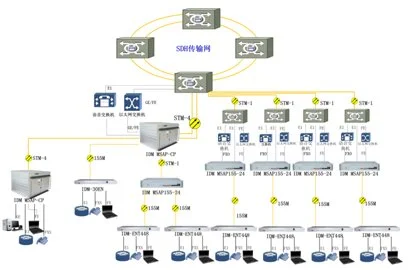

Star Network Application Diagram

The IDM MSAP-G2CP forms a star network with other models of MSAP equipment. The MSAP-G2CP serves as the central node, aggregating services from remote sites. It enables the aggregation and transmission of multiple services including voice, data, video, E1, and data. The star network is suitable for networks with numerous and dispersed remote nodes, offering strong aggregation capabilities and network stability.
