Overview

The IDM GP-2400 Network Converter dedicated for Public Security and Armed Police applications transmits 2 groups of physically isolated wire-speed Gigabit Ethernet and 4 groups of wire-speed physically isolated 100M Ethernet over 2.5G fiber. It provides 2 groups of 2.5G fiber hot backup. It can simultaneously provide ~220V or -48V power supplies.

Product Features

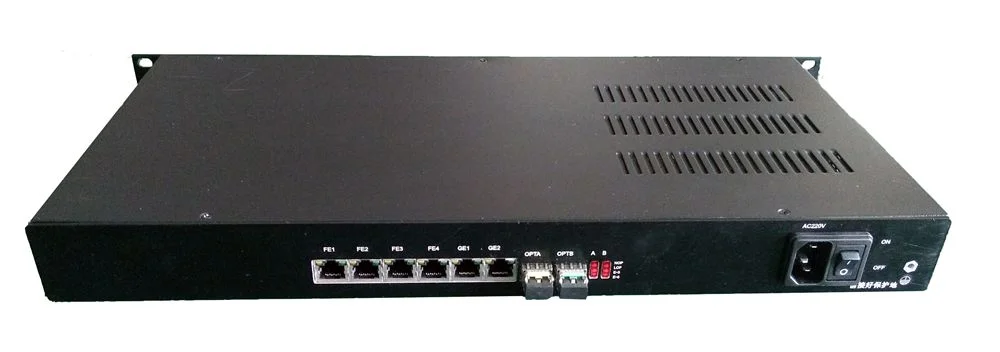

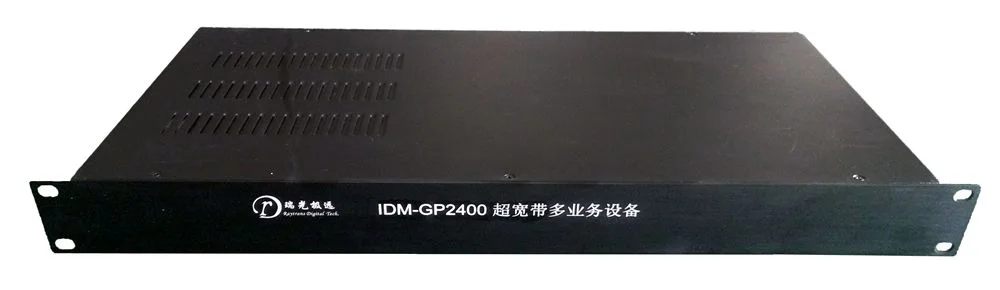

19-inch standard 1U chassis, modular design;

Adopts large-scale ASIC chip design with high integration;

Provides up to 2 SFP 2.5G optical transmission interfaces, supporting point-to-point and 1+1 protection network configurations; transmission distances support 20KM, 40KM, and 80KM;

Provides 2 groups of physically isolated wire-speed Gigabit Ethernet and 4 groups of wire-speed physically isolated 100M Ethernet;

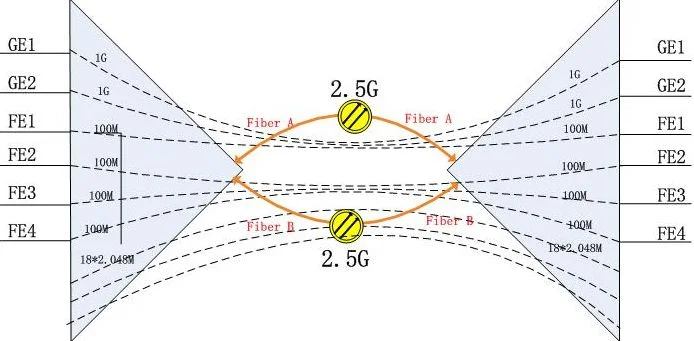

Adopts proprietary physical isolation technology to provide users with different independent channels over the same fiber, ensuring data communication security while saving construction and operational costs;

A pair of devices provides 4 groups of independently isolated Ethernet ports to meet requirements for daily office work, video surveillance, video conferencing, command & dispatch, SIP telephony, wireless extension, internal networking, and more;

Supports DC-48V, AC220V, or dual power supply

Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode (Multi-mode optional)
Rate	2.5Gbps	Wavelength	1310/1490/1550
Transmit Power	-1~-10dB	Receiver Sensitivity	Better than-24dBm

Ethernet

Transmission Rate	10M or 100M or 1000M
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

Power Supply and Power Consumption

Power Supply Mode

DC-48V/AC220V

Total Power Consumption

≤15W

Environmental Conditions

Operating Temperature

-20oC ~+50oC

Relative Humidity

0~95% (non-condensing)

Application Examples

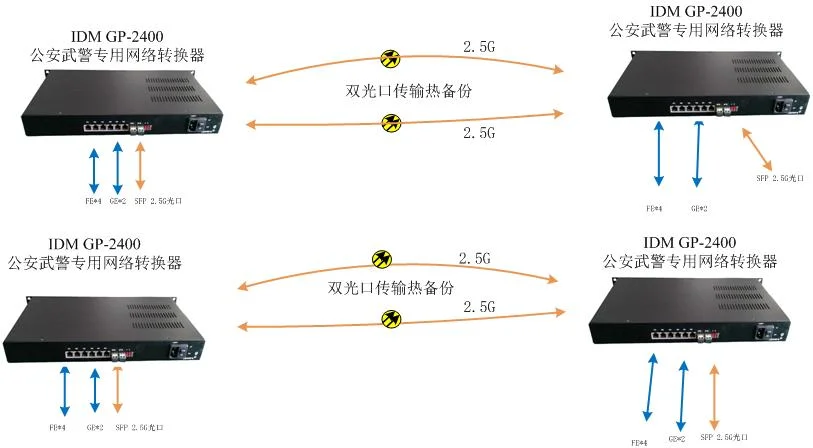

Application 1: Point-to-Point Application Mode

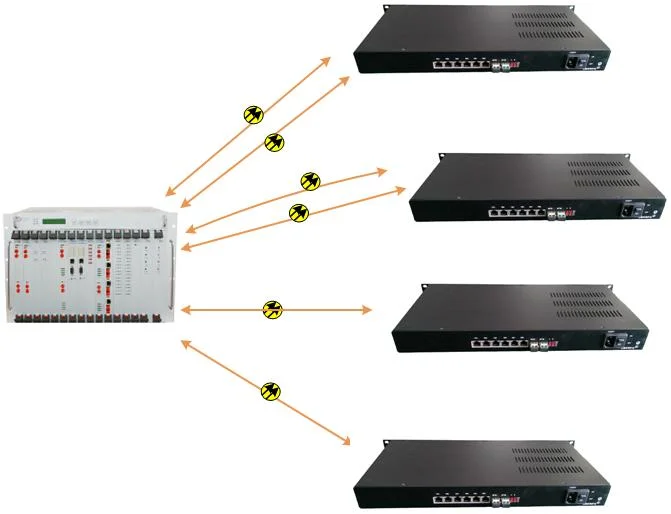

Application 2: Centralized Point-to-Multipoint Application Mode, Supporting Up to 12 Remote Units
