IDM 10G/2.5G SDH Intelligent Multi-Service Optical Transmission Equipment

Flexible Device Configuration

u STM-64/16/4/1 compatible equipment;

u Supports online upgrade of the equipment from 155M to 10G.

Large-Capacity Cross-Connect Capability

u 200×200 VC4, 600×600 VC3, 12600×12600 VC12 and 22400×22400 64K cross-connect capability;

u Large-capacity cross-connect capability provides intelligent optical distribution, intelligent digital distribution and intelligent audio distribution functions;

u 64K timeslot cross-connect supports cross-connect with signaling, cross-connect without signaling and signaling modification cross-connect.

Multi-Service Provision

u Supports SDH standard or concatenated services, providing STM-1/4/16/64 optical interfaces;

u Supports PDH services, providing E1 interfaces;

u Supports Ethernet services, providing GE and FE interfaces;

u Supports N×64K services, providing E1/V.35 interfaces;

u Supports PCM services, providing FXO/FXS, EM, V.24, magneto telephone and other PCM voice and data interfaces.

High Integration

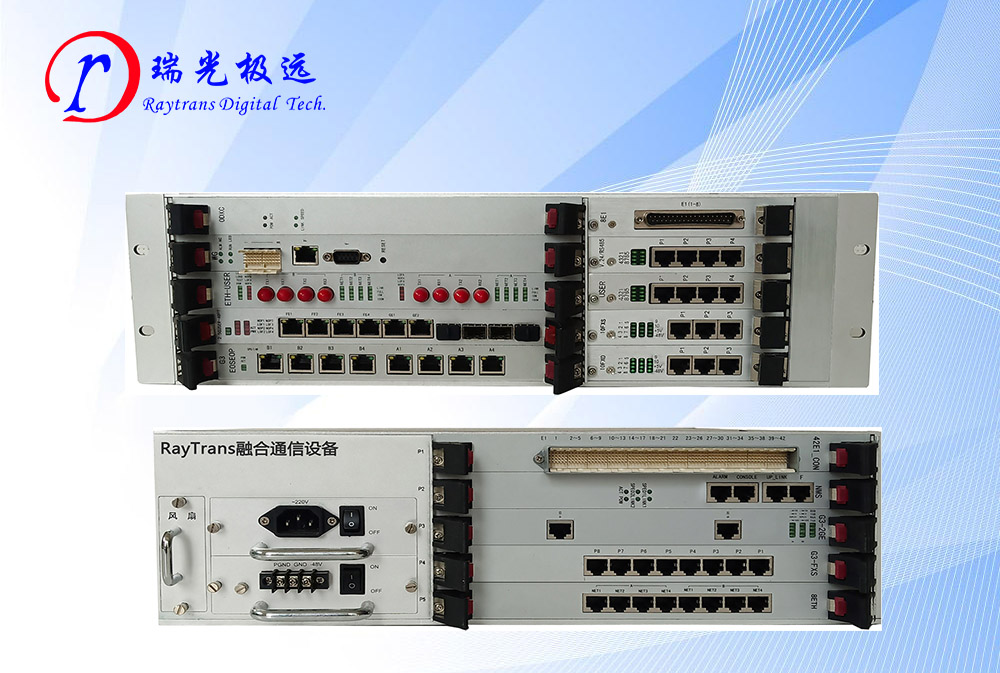

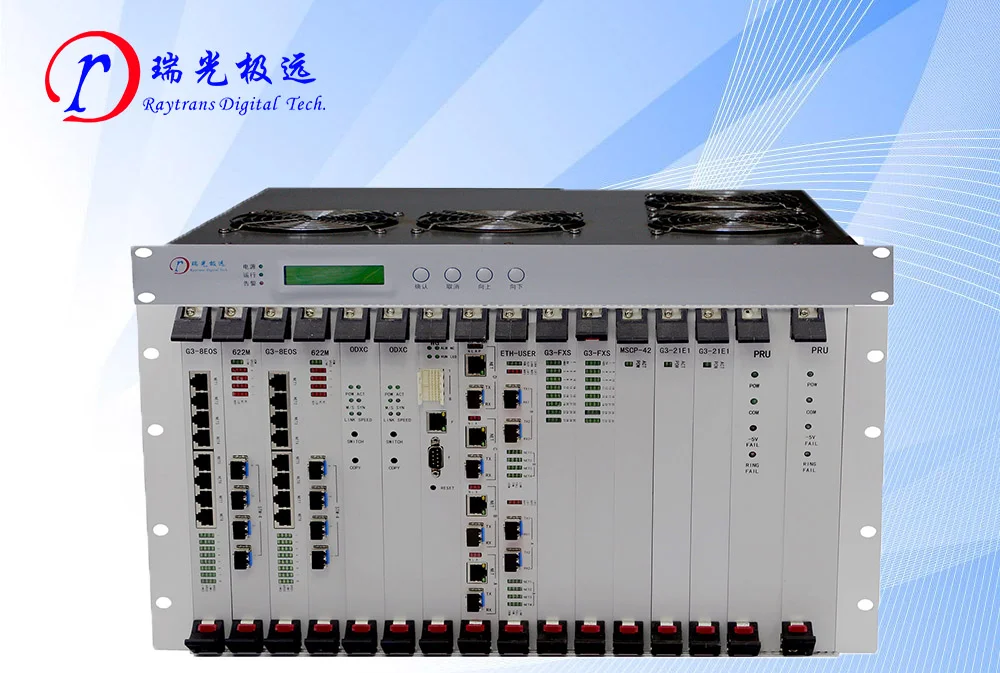

u MSAP-G3CP: 7U chassis, 12 6U service slots;

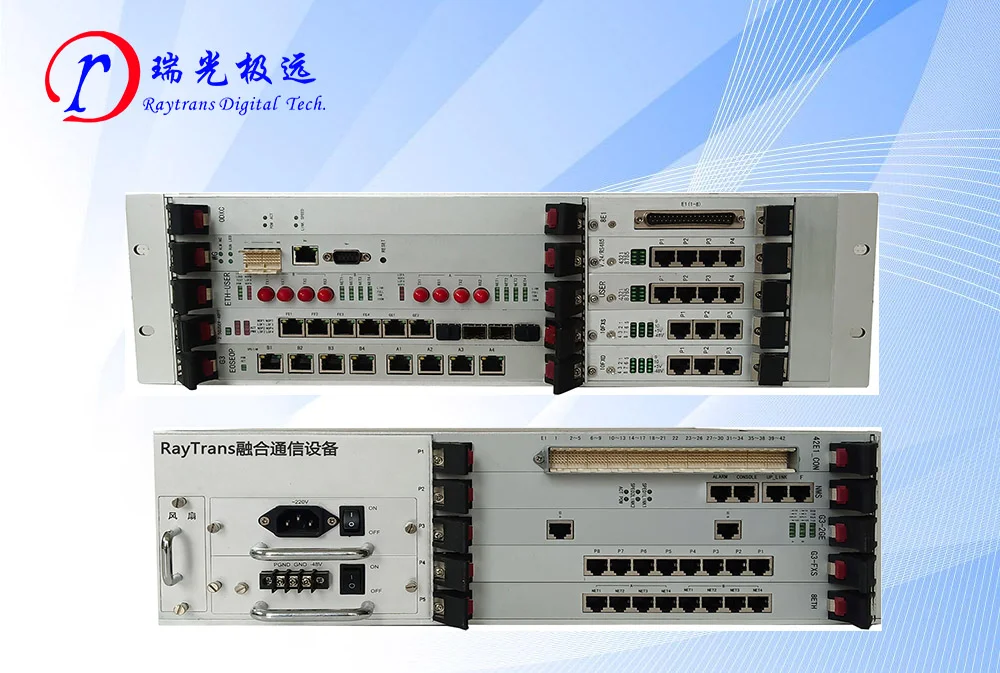

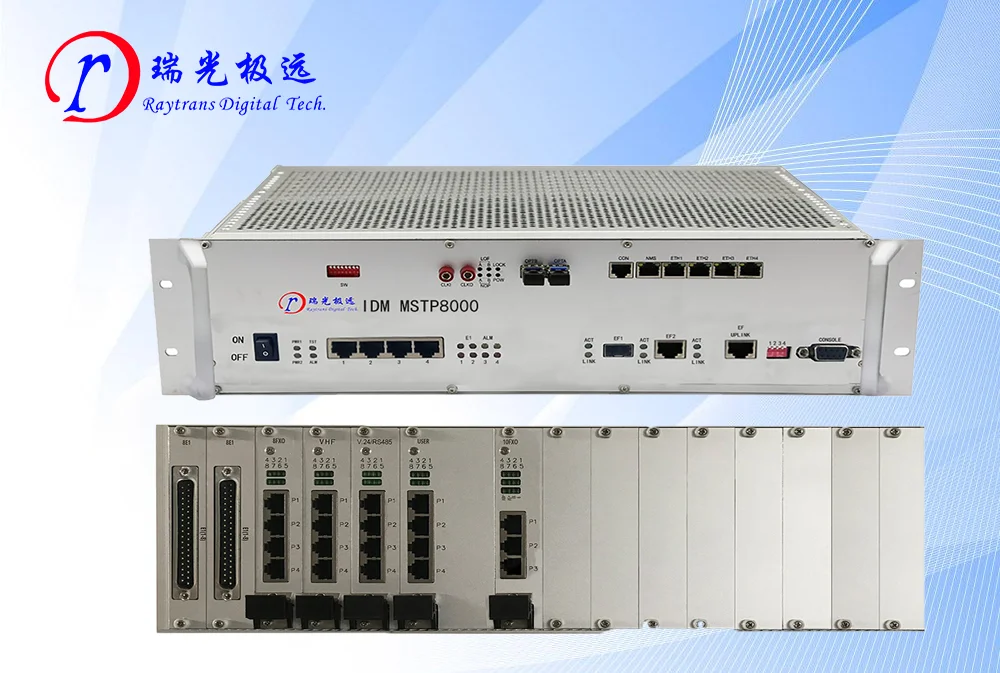

u MSTP8000: 3U chassis, 17 3U service slots;

u MINICP: 3U chassis, 4 6U slots + 5 3U slots.

Strong Networking Capability

u Supports online upgrade and expansion at any rate;

u Supports ring, chain, star, tangent ring, mesh and other SDH networking topologies;

u A single chassis can implement STM-4/16/64 two-fiber ring or four-fiber ring.

Comprehensive Network Survivability Mechanism

u Supports 2F/4F MSP, optical port 1+1 and other SDH protection mechanisms.

Comprehensive Equipment Protection Mechanism

u Intelligent Control Unit Protection

Supports 1+1 hot standby protection for the main control unit.

u Key Unit Protection

Supports 1+1 hot standby protection for key units such as cross-connect and clock.

u Power Protection

Supports 1+1 hot standby protection for power supply.

Comprehensive NMS Software Platform

Supports SNMP protocol, providing complete standard management functions such as management, configuration, monitoring and statistics.

Rich Communication Convergence Extension Services

u Supports physically isolated Gigabit EOS extension board and Fast Ethernet EOS extension board;

u Supports 10GE, 2GE+8FE all-optical switching board for Ethernet aggregation, switching and service termination;

u Supports 4G LTE access board, including SMS, mobile phone and mobile broadband access;

u Supports command & dispatch server board, providing audio/video converged communication services;

u Supports large-capacity 64K audio and data service access board;

u Supports SIP voice trunk board and digital trunk board access, converging the transmission system and voice dispatch system;

u Supports 1.25G/2.5G/5G/10G PDH optical access board;

u Supports ordinary magneto telephone and 2100Hz carrier magneto service access;

u Supports optically isolated IO extension board access;

u Supports single E1/multi-E1 bridge service board.

Rich Equipment Monitoring and Testing Functions

u Supports line-side and equipment loopback testing for optical ports, EOS Ethernet, E1 services and other ports;

u Supports online bit error rate testing for E1 services and other ports;

u Supports standard audio testing functions;

u Supports optical power and receive sensitivity monitoring of optical transmission interfaces.

Product Specifications

Performance Parameters	Product Specifications
	IDM MSAP-G3CP	IDM MSTP8000	IDM MINICP
Device Dimensions	19-inch 7U	19-inch 3U	19-inch 3U
Number of Service Slots	12	17	9 (4×6U slots+5×3U slots)
Equipment Rate	STM-64/16/4/1
Cross-connect Capability	200×200 VC4, 600×600 VC3, 12600× 12600 VC12 and 22400×22400 64K cross-connect capability	160×160 VC4, 480×480 VC3, 1440× 1440 VC12 and 2240×2240 64K cross-connect capability	160×160 VC4, 480×480 VC3, 1440×1440 VC12 and 2240×2240 64K cross-connect capacity
STM-64 standard or concatenated	4	4	4
STM-16Standard or concatenated	40	4	4
STM-4Standard or concatenated	40	4	4
STM-1Services	56	10	4
E1Services	504	24	252
Fast Ethernet(FE)	40	28	16
Gigabit Ethernet(GE)	40	16	16
Clock Characteristics	Master clock, external clock(2.048MHZ, 2.048MBPS), clock extracted from optical port
64K Audio PCM Services	FXS, FXO, EM2/4 audio, magneto with associated signaling, 2100Hz magneto
64K DataPCMServices	RS232/RS485/RS422, X.50/X.58, Co-directional 64K, CANBus
64K IPPacketPCMService	n*64KBridge,N*E1Bridge

Typical Applications

u Intelligent Wiring

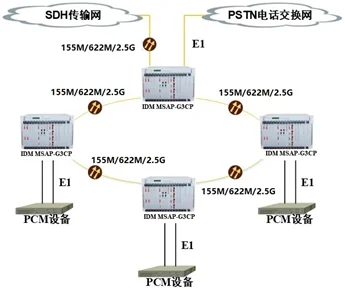

Through the space-division and time-division cross-connect functions supported by the equipment, large-capacity 2M timeslot software cross-connect (intelligent digital distribution) and 64K timeslot software cross-connect (intelligent audio distribution) are realized, fully replacing traditional physical digital distribution frames and audio distribution frames. This greatly reduces distribution equipment and wiring workload, with a single unit supporting up to 12,600×12,600 2M digital distribution channels and 22,400×22,400 64K audio distribution channels.

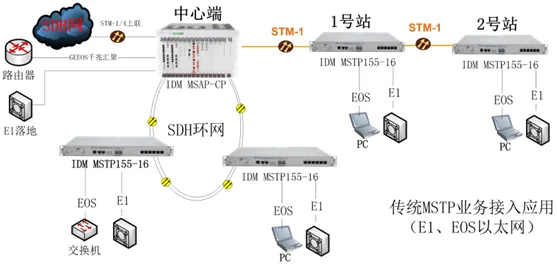

u EOS Service Access
