Audio/Video Command & Dispatch System

1. Introduction

The IDM Multimedia Dispatch Switch MSAP-CP is a PBX/IPPBX-based converged communication equipment developed and designed by Beijing Ruiguang Jiyuan Digital Technology Co., Ltd. It is widely applied and meticulously crafted for telecom operators, government agencies, industries, and large/medium-sized enterprise users, delivering powerful functionality. The product is designed using advanced digital integrated circuits, highly integrated optimized structures, SDH/PDH optical transmission technology, and PBX/IPPBX communication technology. It can be deployed on the enterprise side or in carrier equipment rooms, providing users with a comprehensive integrated audio/video convergence solution.

The system adopts a modular design with a card-slot assembly approach, integrating traditional TDM PBX switch E1 trunk access and analog extension user functions. It supports various signaling methods including PRI, NO.1, NO.7, and SIP/H.323, and can connect to traditional PSTN networks and carrier VoIP softswitch platforms. It enables voice, fax, and data transmission over both TDM and IP networks, achieving secure and efficient enterprise internal audio/video converged communications.

The IDM Multimedia Dispatch Switch MSAP-CP integrates SDH optical transmission, E1 access, various 64K Z-interfaces, IP communications, and various wireless communication access methods into one platform, providing multimedia communication services including video, audio, fax, and data.

The IDM Multimedia Dispatch Switch MSAP-CP is built on a multi-bus system incorporating Telecom BUS, IP bus, and ST-BUS bus architectures, supporting digital trunk, IP trunk, and analog trunk modes. It can simultaneously connect multiple touchscreen integrated Dispatch Consoles. It also supports seamless integration with voice recording/voicemail servers, network management servers, fax/SMS/email servers, audio/video recording servers, GIS servers, and GPS/GPRS servers.

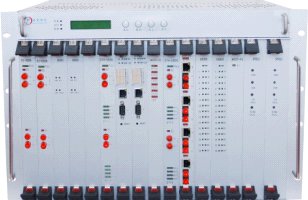

IDM Multimedia Dispatch Switch MSAP-CP IDM Multimedia Command Dispatch Console IDM Portable Command Dispatch Console

2. Features

• 19-inch 7U standard chassis structure with a plug-in card design for flexible configuration, providing 16 slots that can accommodate various service cards based on business requirements;
• Supports AC 220V/DC -48V dual power supply with mutual backup;
• Integrates SDH, PDH, PCM, IP, IPPBX, and TDM OVER IP functions into one platform;
• Supports pluggable SDH transmission cards with STM-1 (155Mbit/s) and STM-4 (622Mbit/s) rates, which can be used to build the backbone SDH optical transmission network within the audio/video dispatch system, or to interconnect with existing SDH transmission networks, fully utilizing existing network transmission resources;
• The ODXC card supported by this equipment provides non-blocking full cross-connect capabilities of 64*64 VC4 and 2096*2096 VC12 timeslots, with dual-card mutual backup support;
• Supports pluggable PBX/IPPBX cards, which serve as the core module for dispatch and switching, implementing switching functions between TDM services and IP services, as well as interworking between E1 digital signaling (PRI, NO.1, NO.7, V5.2), FXO analog trunk signaling, and SIP/H.323 signaling; this service card supports non-blocking full cross-connect of 4096*4096 64K timeslots;
• Supports pluggable Gigabit all-optical Ethernet switch card OSW_10GE and 100M Ethernet switch card ESW_8FE, enabling the establishment of IP switching networks or direct access to local IP switching networks via GE/FE ports, facilitating the access of various audio, video, and data services from the local switching network to the dispatch system;
• Supports pluggable PDH tributary cards for PDH optical tributary access, enabling audio and video transmission and access over PDH optical links;
• Supports pluggable 64K service interface cards, configurable with FXO/FXS, 2/4-wire E&M, 2/4-wire audio, RS232, RS422/RS485, and other N*64K services based on business requirements. It can also be configured with video access cards, high-fidelity voice cards, GSM service cards, and GPS/GPRS service cards to meet the access requirements for audio, video, and various wireless services in current audio/video Command & Dispatch systems;
• Supports pluggable MSCP-21E1/42E1 interface cards, providing termination capabilities for 21/42 E1 services, used to provide E1 digital trunk interfaces to program-controlled switches, or as E1 transparent transmission channels to interface with our company's audio/video terminals and the wired/wireless dispatch gateway IDM 60N;
• All slots in this equipment support hot-swapping, and critical card positions support dual-card mutual backup;
• The equipment supports multiple clock source acquisition methods including line clock extraction, internal clock, and external clock, with clock source protection switching capability;
• The equipment supports rich networking topologies, including optical fiber ring, star, and tree configurations;
• Provides F and f network management interfaces, along with accompanying network management software for service configuration and online network monitoring;
• Provides equipment ambient temperature monitoring, with real-time temperature control for fan activation and deactivation. Environmental monitoring also contributes to power consumption savings.

Our company's IDM Multimedia Dispatch Switch MSAP-CP possesses powerful access capabilities, enabling access to various transmission equipment, trunk equipment, switching equipment, and audio/video terminals through multiple pathways including optical channels (SDH/PDH), IP (FE/GE), and E1. The terminal access capabilities and functions of this equipment are illustrated in the figures below.

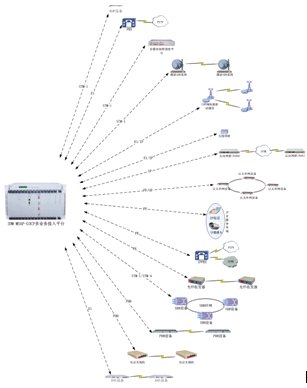

IDM Multimedia Dispatch Switch MSAP-CP Terminal Access Diagram

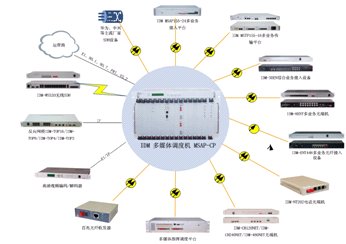

IDM Multimedia Dispatch Switch MSAP-CP Functional Diagram
