Telephone Optical Terminal Classification

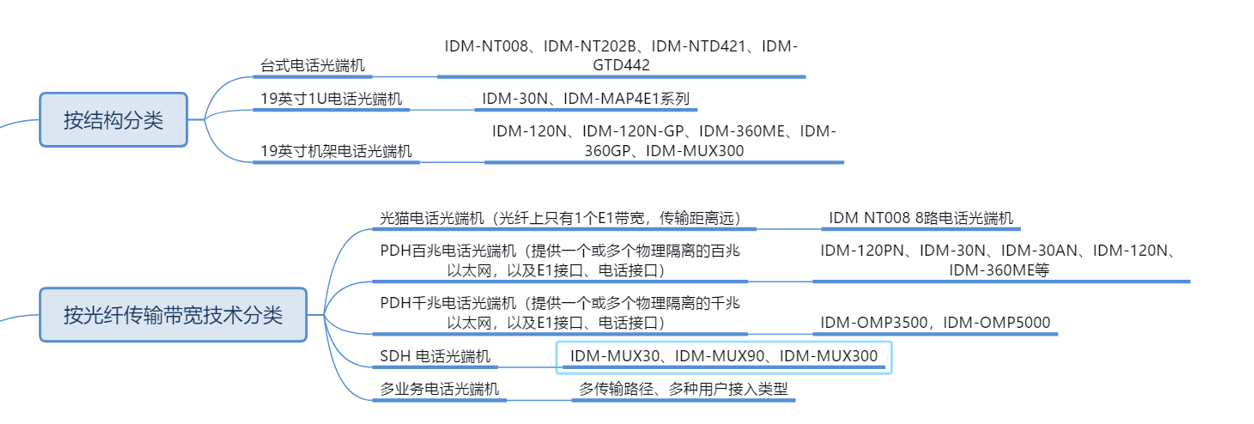

1. Classification by Structure

1.1. Desktop Telephone Optical Terminal

1.1.1. IDM-NT008、IDM-NT202B、IDM-NTD421、IDM-GTD442

1.2. 19-inch 1U Telephone Optical Terminal

1.2.1. IDM-30N（IDM-30AN）（IDM-30EN）、IDM-MAP4E1 Series

1.3. 19-inch Rack-Mount Telephone Optical Terminal

1.3.1. IDM-120N、IDM-120N-GP、IDM-360ME、IDM-360GP、IDM-MUX300

2. Classification by Optical Fiber Transmission Bandwidth Technology

2.1. Optical Modem Telephone Optical Terminal (Only 1 E1 bandwidth on the optical fiber, long transmission distance)

2.1.1. IDM NT008 8-Channel Telephone Optical Terminal

2.2. PDH 100M Telephone Optical Terminal (Provides one or more physically isolated 100M Ethernet ports, as well as E1 interfaces and telephone interfaces)

2.2.1. IDM-120PN、IDM-30N、IDM-30AN、IDM-120N、IDM-360ME etc.

2.3. PDH Gigabit Telephone Optical Terminal (Provides one or more physically isolated Gigabit Ethernet ports, as well as E1 interfaces and telephone interfaces)

2.3.1. IDM-OMP3500，IDM-OMP5000

2.4. SDH Telephone Optical Terminal

2.4.1. IDM-MUX30、IDM-MUX90、IDM-MUX300

2.5. Multi-Service Telephone Optical Terminal

2.5.1. Multiple transmission paths, multiple user access types

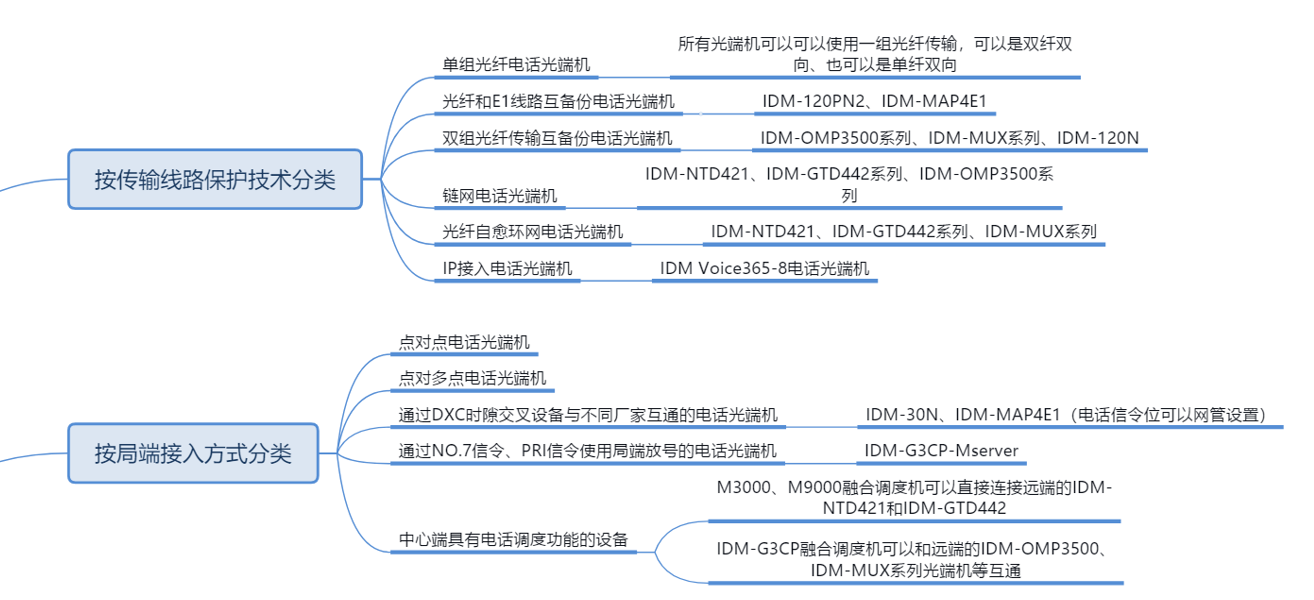

3. Classification by Transmission Line Protection Technology

3.1. Single-Fiber Pair Telephone Optical Terminal

3.1.1. All optical terminals can use one fiber pair for transmission, either dual-fiber bidirectional or single-fiber bidirectional

3.2. Fiber and E1 Line Mutual Backup Telephone Optical Terminal

3.2.1. IDM-MAP4E1

3.3. Dual-Fiber Pair Transmission Mutual Backup Telephone Optical Terminal

3.3.1. IDM-OMP3500 Series、IDM-MUX Series、IDM-120N

3.4. Chain Network Telephone Optical Terminal

3.4.1. IDM-NTD421、IDM-GTD442 Series、IDM-OMP3500 Series

3.5. Optical Fiber Self-Healing Ring Network Telephone Optical Terminal

3.5.1. IDM-NTD421、IDM-GTD442 Series、IDM-MUX Series

3.6. IP Access Telephone Optical Terminal

3.6.1. IDM Voice365-8 Telephone Optical Terminal

4. Classification by Central Office Access Mode

4.1. Point-to-Point Telephone Optical Terminal

4.2. Point-to-Multipoint Telephone Optical Terminal

4.3. Telephone Optical Terminal Interconnecting with Different Manufacturers via DXC Timeslot Cross-Connect Equipment

4.3.1. IDM-30N、IDM-MAP4E1 (Telephone signaling bits can be configured via network management)

4.4. Telephone Optical Terminal Using NO.7 Signaling and PRI Signaling for Central Office Line Provisioning

4.4.1. IDM-G3CP-Mserver

4.5. Equipment with Telephone Dispatch Functionality at the Central Office End

4.5.1. M3000、M9000 Converged Dispatch Switch can directly connect to remote IDM-NTD421 and IDM-GTD442

4.5.2. IDM-G3CP Converged Dispatch Switch can interoperate with remote IDM-OMP3500、IDM-MUX Series optical terminals, etc.

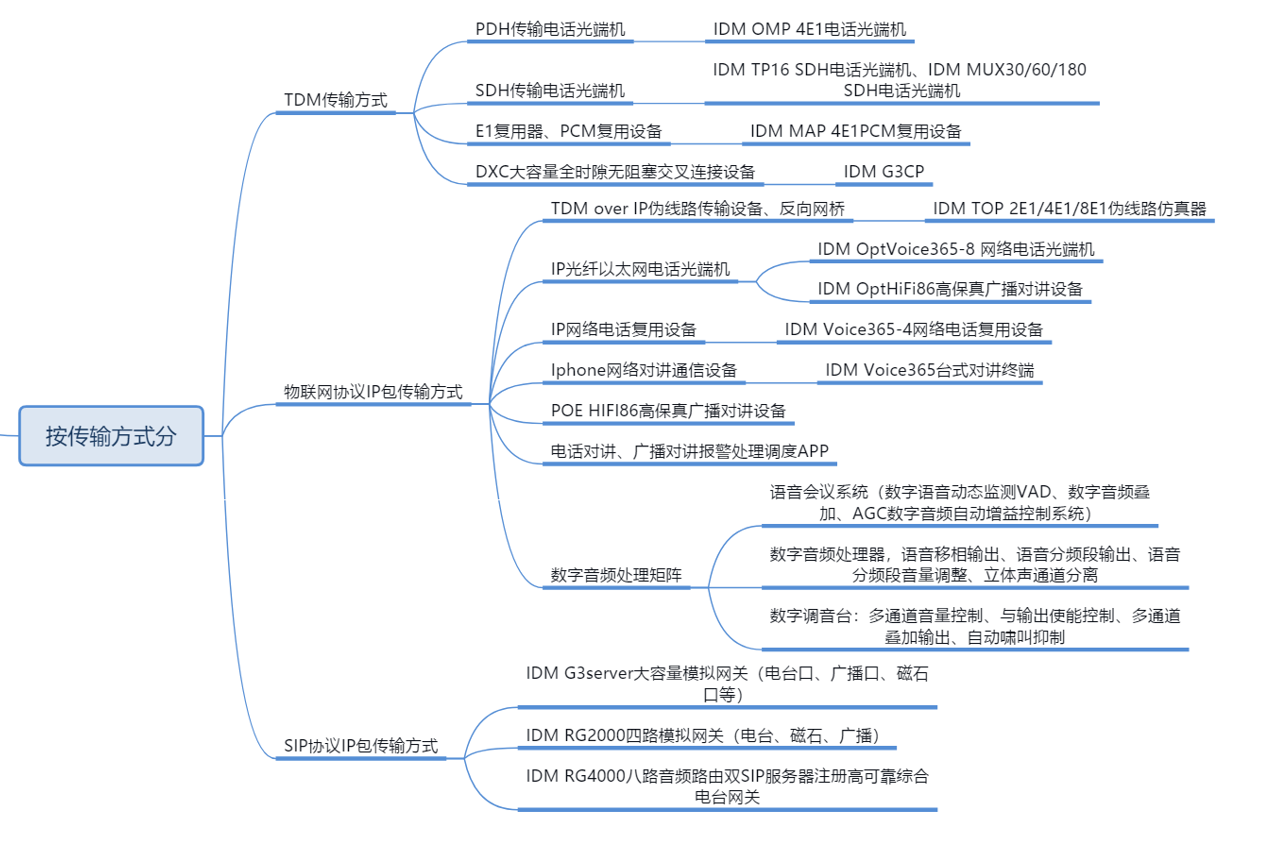

5. Classification by Transmission Mode

5.1. TDM Transmission Mode

5.1.1. PDH Transmission Telephone Optical Terminal

· IDM OMP 4E1Telephone Optical Terminal

5.1.2. SDH Transmission Telephone Optical Terminal

· IDM TP16 SDH Telephone Optical Terminal、IDM MUX30/60/180 SDHTelephone Optical Terminal

5.1.3. E1 Multiplexer, PCM Multiplexing Equipment

· IDM MAP4E1 PCM Multiplexing Equipment

5.1.4. DXC Large-Capacity Full-Timeslot Non-Blocking Cross-Connect Equipment

· IDM G3CP

5.2. IoT Protocol IP Packet Transmission Mode

5.2.1. TDM over IP Pseudo-Wire Transmission Equipment, Reverse Bridge

· IDM TOP 2E1/4E1/8E1 Pseudo-Wire Emulator

5.2.2. IP Fiber Optic Ethernet Telephone Optical Terminal

· IDM OptVoice365-8 Network Telephone Optical Terminal

· IDM OptHiFi86 High-Fidelity Broadcast/Intercom Equipment

5.2.3. IP Network Telephone Multiplexing Equipment

· IDM Voice365-4 Network Telephone Multiplexing Equipment

5.2.4. IP Network Intercom Communication Equipment

· IDM Voice365 Desktop Intercom Terminal

5.2.5. POE HIFI86 High-Fidelity Broadcast/Intercom Equipment

5.2.6. Telephone Intercom, Broadcast/Intercom Alarm Processing and Dispatch APP

5.2.7. Digital Audio Processing Matrix

· Voice Conference System (Digital Voice Activity Detection VAD, Digital Audio Superposition, AGC Digital Audio Automatic Gain Control System)

· Digital Audio Processor, Voice Phase-Shift Output, Voice Frequency-Band Split Output, Voice Frequency-Band Volume Adjustment, Stereo Channel Separation

· Digital Mixing Console: Multi-Channel Volume Control, Output Enable Control, Multi-Channel Superposition Output, Automatic Howling Suppression

5.3. SIP Protocol IP Packet Transmission Mode

5.3.1. IDM G3server Large-Capacity Analog Gateway (Radio Port, Broadcast Port, Magneto Port, etc.)

5.3.2. IDM RG2000 Four-Channel Analog Gateway (Radio, Magneto, Broadcast)

5.3.3. IDM RG4000 Eight-Channel Audio Routing Dual SIP Server Registration High-Reliability Integrated Radio Gateway

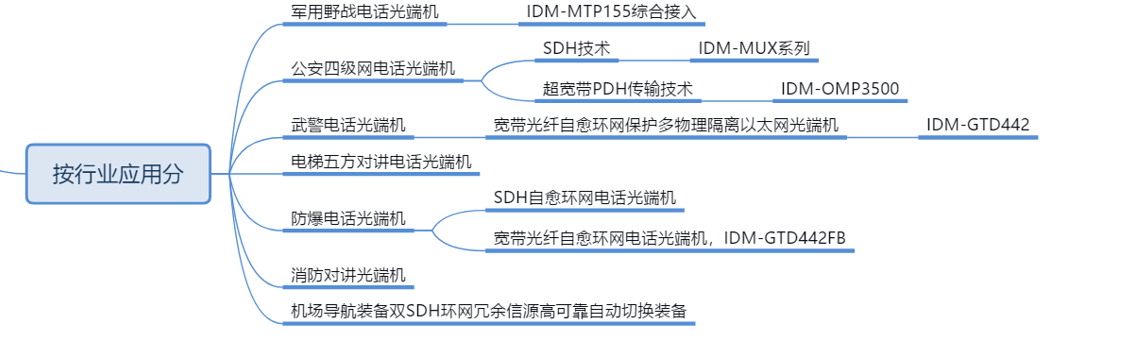

6. Classification by Industry Application

6.1. Military Field Telephone Optical Terminal

6.1.1. IDM-MTP155 Integrated Access

6.2. Public Security Four-Level Network Telephone Optical Terminal

6.2.1. SDH Technology

· IDM-MUX Series

6.2.2. Ultra-Broadband PDH Transmission Technology

· IDM-OMP3500

6.3. Armed Police Telephone Optical Terminal

6.3.1. Broadband Fiber Self-Healing Ring Network Protection Multi Physically Isolated Ethernet Optical Terminal

· IDM-GTD442

6.4. Elevator Five-Party Intercom Telephone Optical Terminal

6.5. Explosion-Proof Telephone Optical Terminal

6.5.1. SDH Self-Healing Ring Network Telephone Optical Terminal

6.5.2. Broadband Fiber Self-Healing Ring Network Telephone Optical Terminal，IDM-GTD442FB

6.6. Fire Protection Intercom Optical Terminal

6.7. Airport Navigation Equipment Dual SDH Ring Network Redundant Signal Source High-Reliability Automatic Switching Equipment
