PCM

Overview:

The IDM-MINI centralized integrated service multiplexer adopts a standalone structure and can simultaneously transmit 8+1 channels of 64K or n×64K voice and data services over one group of E1 or fiber transmission links. It converts services such as 10Base-T Ethernet, voice channels, V.35, and V.24 into E1 data streams for transmission over E1 or fiber channels. It is suitable for extending the working distance of interfaces via fiber, microwave, DDN private network channels, etc., and can also serve as a telephone optical terminal. It can be combined with other series of multiplexers to form various network topologies, such as chain networks, star networks, tree networks, and other integrated networks.

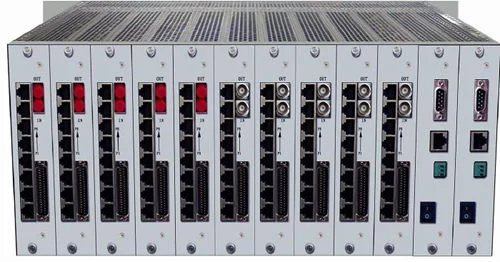

Product Image:

Derivative Models:

The IDM-MINIO integrated service multiplexer is based on the IDM-MINI but converts E1 transmission to fiber transmission, making it suitable for voice and data access over self-owned fiber line channels in private networks, such as public security, military, power systems, mining communication, hydrological monitoring, banking private networks, broadcasting, airports, highways, and other industries. The IDM-MINI centralized model can be configured with 10 user card slots, and each card supports services corresponding to those of the IDM-MINI single-board model.

Key Features:

• E1 transmission and fiber transmission options available;
• Rich user interfaces, providing 8 channels of 64K voice, data, and 1 channel of N*64K service access;
• More than 20 types of service interface cards available for flexible configuration;
• Can be deployed in networking applications with IDM series products;
• Provides powerful audible and visual alarm indication for line operation status;

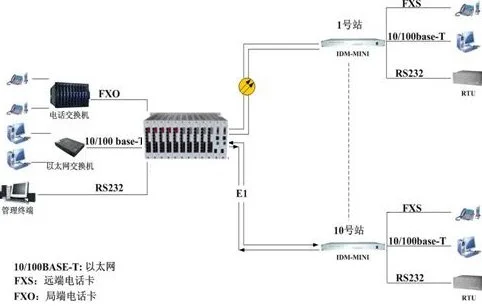

Typical Application:

For more detailed information, please call: 010-51668966
