PCM设备 IDM MAP64综合业务复用设备

---

title: "PCM Equipment IDM MAP64 Integrated Service Multiplexer"
model: "PCM"
category: "PCM"
tags:

• "64-channel PCM Equipment"
• "Integrated PCM Equipment"
• "E1 Primary Multiplexing Equipment"
• "PCM Primary Multiplexing Equipment"
• "Voice PCM Equipment"
• "PCM Equipment Interface Card"
• "PCM Equipment Quotation"
• "PCM Equipment Manufacturer"
  description: "The IDM MAP64 Integrated Service Multiplexer adopts a 19-inch 2U standard chassis, implementing non-blocking full cross-connect multiplexing of 64 channels of 64K services over 8 groups of E1. It features a pluggable structure for convenient maintenance and management. A single 2U chassis can provide 64 user interfaces with over 20 optional service types."
  cover: "/images/imports/img-ffb62280.webp"
  images:
• "/images/imports/img-ffb62280.webp"
• "/images/imports/img-0d8d5709.webp"
  keywords: "64-channel PCM equipment,integrated PCM equipment,E1 primary multiplexing equipment,PCM primary multiplexing equipment,voice PCM equipment,PCM equipment interface card,PCM equipment quotation,PCM equipment manufacturer"
  slug: "pcm-idm-map64"
  publishDate: "2026-05-12"

Overview:

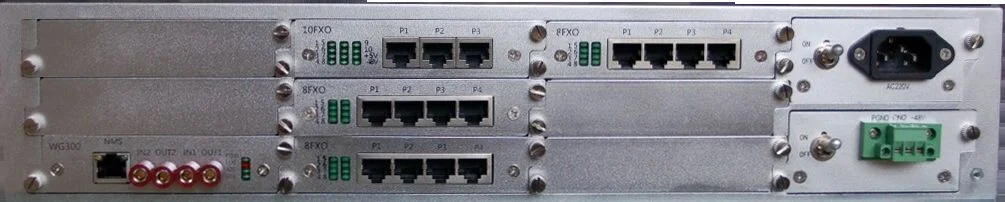

The IDM MAP64 Integrated Service Multiplexer adopts a 19-inch 2U standard chassis, implementing non-blocking full cross-connect multiplexing of 64 channels of 64K services over 8 groups of E1. It features a pluggable structure for convenient maintenance and management.

The entire unit can be configured with:
1 E1 Central Management Unit (CMU) card (mandatory), 8 voice cards (FXO/FXS), and a DC power card or AC power card. The CMU card provides 8 groups of E1 interfaces and manages/controls the E1 interfaces and USER cards. Either the DC power card or AC power card can be selected, or dual power supply (DC and AC) can be configured. Each voice card provides 8 user interfaces, and the transmit/receive gain of each voice channel can be adjusted externally on the user card front panel, supporting hot-swap. Unified network management across the entire network is supported, with both serial and Ethernet network management interfaces available.

Product Features:

Ø Adopts 19-inch 2U standard chassis;
Ø Modular structure with low power consumption and high reliability;
Ø Provides 8 E1 transmission interfaces;
Ø Provides 64 channels of 64K service interfaces, with optional FXO, FXS, V.24, magneto, common battery, and EM service cards;
Ø Supports wide-range voltage input: DC-48V or ~220V, or dual power supply;

Technical Specifications

1) E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	Supports ITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/32	Signaling	Channel-Associated Signaling

2) Ethernet (FE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤50)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

3) Ethernet (GE)

Interface Type	RJ-45	Transmission Rate	N×VC12 (N≤63)
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

4) FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression	A-law per ITU G.711
Impedance	Triple complex impedance 200Ω+560Ω//0.1μF	Loop Current	20mA/channel

5) Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced 120Ω	Fully compliant with ITU G.703 Recommendation

6) EM2/4-Wire Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding	ITU G.711 A-law	Return Loss	≥18dB

7) Magnetic Ring Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding	ITU G.711 A-law	Return Loss	≥18dB

8) V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Compliant withCCITT V.28protocol

9) V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps（n=0～31）	Terminal Interface	Compliant withISO2593Specification

10) Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Power Consumption

≤150W

11) Environmental Conditions

Operating Temperature

-10oC ~+50oC

Relative Humidity

0~95% (non-condensing)
