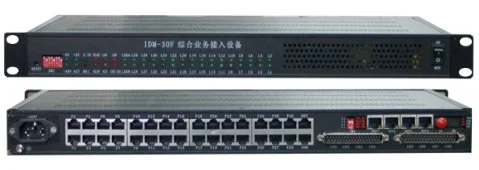

PCM设备 IDM-30F/30FN2综合业务复用设备

---

title: "PCM Equipment IDM-30F/30FN2 Integrated Service Multiplexer"
model: "PCM"
category: "PCM"
tags: [
"30-channel multi-service telephone optical terminal",
"30-channel multi-service telephone optical terminal price",
"30-channel multi-service telephone optical terminal manufacturer",
"Telephone optical terminal",
"30-channel telephone optical terminal",
"Card-type telephone optical terminal",
"Multi-service telephone optical terminal"
]
description: "The IDM-30F series integrated service multiplexer adopts a 19-inch 1U standard chassis with a transmission rate of 155M. It supports 4 shared line-rate 100M Ethernet channels with VLAN partitioning and 8 groups of transparent E1 channels, while allowing flexible configuration of 20+ types of interface cards."
cover: "/images/imports/img-6656c96f.webp"
images: [
"/images/imports/img-6656c96f.webp",
"/images/imports/img-fa99765d.webp"
]
specs: {
"Transmission Distance": "20Km, optional long-distance optical modules are available for extended fiber transmission."
}
keywords: "30-channel multi-service telephone optical terminal,30-channel multi-service telephone optical terminal price,30-channel multi-service telephone optical terminal manufacturer,telephone optical terminal,30-channel telephone optical terminal,card-type telephone optical terminal,multi-service telephone optical terminal",
slug: "pcm-idm-30f-30fn2",
publishDate: "2026-05-12"

Overview:

The IDM-30F series integrated service multiplexer adopts a 19-inch 1U standard chassis with a transmission rate of 155M. It supports 4 shared line-rate 100M Ethernet channels with VLAN partitioning and 8 groups of transparent E1 channels, while allowing flexible configuration of 20+ types of service interface cards.

The IDM-30FN2 provides 2 groups of optical interfaces, suitable for point-to-point and chain network topologies. With a single fiber optic line resource, it can provide voice and data services for 8 user nodes. Each node can be configured with 30 channels of 64K services, deployed in bus or point-to-point topology. All nodes on the entire fiber link share the line-rate 100M Ethernet interface.

Product Features:

• Supports multiple voice, data, and video service access;
• RJ45 user interface design for easy installation and maintenance;
• Nyquist frequency signal system sampling;
• Powerful audible and visual alarm functions;
• Comprehensive monitoring functions for timely line status diagnosis;
• Provides 4 groups of shared line-rate 100M Ethernet interfaces and 8 groups of transparent E1 interfaces;
• Supports access of 30 channels of 64K or N×64K voice, data, and video user interfaces.

Technical Specifications:

Optical Interface

Interface Type	FC (SC etc. customizable)	Fiber Mode	Single-mode (multi-mode optional)
Tx/Rx Rate	155M/155M	Tx/Rx Wavelength	1310nm/1550nm
Optical Output Power	-2~-11dBm	Receiver Sensitivity	Better than -36dBm
Transmission Distance	20Km, optional long-distance optical modules are available for extended fiber transmission.

E1 Interface

Line Rate	2048Kbps	Line Code	HDB3
Standard Protocol	Supports ITU-T G.703	Impedance	75Ω
Frame Structure	PCM30/31	Signaling	Channel-associated signaling

Ethernet

Interface Type	RJ-45	Transmission Rate	N×2.048Kbps (N≤30)
Standard Protocol	Supports IEEE802.3u	Operating Mode	Full/Half duplex/Auto-negotiation

FXO, FXS Interface

Audio Range	300Hz~3400Hz	Compression Rate	ITU G.711 A-law
Impedance	Three-element complex impedance 200Ω+560Ω//0.1μF	Loop Current	25mA/channel

EM2/4-Wire Interface

Audio Range	300Hz~3400Hz	Impedance	Balanced 600Ω
Compression Rate	ITU G.711 A-law	Return Loss	≥18dB

V.24 Interface

Transmission Rate

Asynchronous ≤9600bps; Synchronous 64Kbps

Electrical Characteristics

Compliant with CCITT V.28 protocol

V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant with ITU-T V.35 recommendation
Transmission Rate	N×64Kbps (N=0~31)	Terminal Interface	Compliant with ISO2593

Power Supply and Consumption

Power Supply Mode

AC220V/DC-48V

Total Power Consumption

≤50W

Environmental Conditions

Operating Temperature

0ºC--40ºC

Relative Humidity

≤90% (non-condensing)

Product Dimensions

Length*Depth*Height

495Í307Í47(mm)
