MA5626

Media Converter·📅UpdatedMay 12, 2026·✍️管理员

Huawei MA5626 Specifications Port Interface Type 1 EPON/GPON Optical Interface

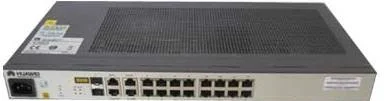

Huawei MA5626 Specifications

Huawei MA5626 Specifications

Ports	Interface Type	1 EPON/GPON optical interface 8 FE electrical interfaces 16 FE electrical interfaces 24 FE electrical interfaces
Others	Other Functions	As an MDU device in the GPON/EPON system, the Huawei MA5626 optical access unit works in conjunction with the central office OLT equipment to provide GPON/EPON access services, meeting networking requirements such as FTTB (Fiber to the Building). The Huawei MA5626 adopts a fixed design and supports only FE electrical interfaces as service interfaces. Based on capacity, it is available in 24/16/8 port specifications. The Huawei MA5626 supports startup in low-temperature environments down to -40℃ through an externally attached heating device.
Others	Environment	Operating Temperature: 0-45℃ Operating Humidity: 20%-85% (Non-condensing) Storage Humidity: 5%-95% (Non-condensing)
Physical Specifications	Dimensions	482.6mm × 220mm × 85.2mm

The MA5626 is the earliest natural heat dissipation LAN access MDU device launched by Huawei, supporting five specifications: 24-port, 16-port, 8-port, 8-port with forward PoE, and 8-port with reverse PoE. The product is applied in FTTB+LAN deployment scenarios, providing broadband Internet access and voice services for residential users or small and medium-sized enterprise users. It is suitable for various installation scenarios including desktops, building corridors, and cabinets.

Product Features

Wide temperature range, low power consumption, and natural heat dissipation silent design significantly reduce system energy consumption while improving system reliability, providing you with a comfortable and quiet application environment.

Supports remote configuration delivery. Once the device is powered on and successfully registered, the management channel and service channel are established automatically without manual on-site operation — plug-and-play. It supports comprehensive management, maintenance, and monitoring functions, facilitating daily operations management and fault diagnosis.

Supports GPON/EPON/GE tri-mode auto-negotiation to meet different FTTx network access requirements. It also supports both SIP and H.248 protocols for convenient integration with softswitch systems.

Supports 6KV high lightning protection capability and Type C dual PON port protection, ensuring device reliability.

Supports forward PoE power supply to address the power supply issue for Wi-Fi terminals in FTTW deployments; supports reverse PoE power supply to solve the difficulty of power sourcing in building corridors during FTTB deployments.

Product Applications and Customer Benefits

The MA5626 device is plug-and-play, improving service provisioning efficiency and reducing deployment costs. Service simulation and remote fault location functions reduce operation and maintenance costs. The green energy-saving design enhances energy efficiency and network profitability. Currently, the MA5626 has been widely deployed in the FTTO market, serving multiple operators worldwide.
