IDM-VNT8416 Multi-service Video Optical Terminal
Overview: The IDM-VNT8416 Multi-service Video Optical Terminal from Beijing Raytrans Digital Technology Co., Ltd. employs advanced international digital video fiber-optic transmission technology to multiplex video signals, voice or data services at 64K, E1, high-fidelity audio, and 100M Ethernet onto a single fiber for high-quality transmission. It supports high-resolution transmission of both moving and static images. Its plug-and-play design ensures easy installation without on-site adjustments. The optical modules and core circuits use standard components, ensuring high stability. All optical and electrical interfaces comply with international standards, making it suitable for diverse operating environments.
Gallery
Overview:
The IDM-VNT8416 Multi-service Video Optical Terminal from Beijing Raytrans Digital Technology Co., Ltd. utilizes advanced international digital video fiber-optic transmission technology to multiplex video signals, voice or data services at 64K, E1, high-fidelity audio, and 100M Ethernet onto a single fiber for high-quality transmission. It is a cost-effective solution supporting high-resolution transmission of both moving and static images. Its plug-and-play design ensures simple installation without on-site adjustments. The optical modules and core circuits use standard components, ensuring high stability. All optical and electrical interfaces comply with international standards, making it suitable for diverse operating environments.
@@IMG0@@ @@IMG1@@
Product Features:
Supports 8 video channels;
4 groups of high-fidelity audio services;
Powerful network management function with real-time online monitoring;
4 transparent E1 channels, 4 shared 100M Ethernet ports;
Compatible with PAL, NTSC, SECAM, and other video standards;
No crosstalk interference from analog FM, PM, or AM optical terminals;
Immune to electromagnetic interference (EMI) and radio frequency interference (RFI);
High expandability—supports optional voice interface cards such as FXS, FXO, hotline phone cards, magneto telephone cards, EM2/4 cards, etc.; data service cards such as V.24, V.35, etc.;
Can be integrated with centralized equipment to form a star network topology with one-to-many connections.
Technical Specifications:
Optical Interface
Interface Type | FC (customizable to SC, etc.) | Fiber Mode | Single-mode (optional multi-mode) |
Receiver/Transmitter Rate | 1.5Gbps/1.5Gbps | Receiver/Transmitter Wavelength | 1310nm/1550nm |
Transmitter/Receiver Rate | 1.5Gbps/1.5Gbps | Transmitter/Receiver Wavelength | 1550nm/1310nm |
Transmit Power | -9～-1dBm | Receiver Sensitivity | Better than -21dBm |
Transmission Distance | 20Km, optional long-distance optical modules available for extended fiber transmission. | ||
Video
Interface Type | BNC | Luminance Nonlinearity | <3% |
Video Sampling Bit Width | 8bit | Video Bandwidth | 0Hz～6.5MHz |
Differential Phase (DP) | <0.7o | Differential Gain (DG) | <0.7% |
Input Overload Voltage | 1.5VP-P (typical) | Input/Output Voltage | 1VP-P (typical) |
Input/Output Impedance | 75Ω (unbalanced) | Video Signal-to-Noise Ratio | ≥70dB (weighted) |
Ethernet
Interface Type | RJ-45 | Transmission Rate | 10M/100M auto-adaptive |
Standard Protocol | Supports IEEE802.3 | Operating Mode | Full/Half-duplex / Auto-adaptive |
FXO/FXS Interface
Audio Range | 300Hz～3400Hz | Compression Rate | ITU G.711 A-law |
Impedance | Three-element complex impedance: 200Ω + 560Ω//0.1μF | Loop Current | 25mA per channel |
High-fidelity Audio
Interface Type | RJ45 | Audio Sampling Bit Width | 24bit |
Input/Output Impedance | ADC: 100KΩ / DAC: 10KΩ | Input/Output Voltage | 1.5VP-P (typical) |
Audio Sampling Frequency | 32KHz | Audio Signal-to-Noise Ratio | ≥90dB |
Audio Bandwidth | 20Hz～20KHz | Total Harmonic Distortion | <1% |
Data
Interface Type | RJ-45 |
Data Type | RS-232, RS422 (4-wire), RS485 (2-wire) |
Power Supply and Power Consumption
Power Supply Method | AC220V / DC-48V / DC 9V | Total Power Consumption | ≤40W |
Environmental Conditions
Operating Temperature | -15oC～+65oC | Storage Temperature | -25oC～+75oC |
Industrial Grade | -40oC～+85oC | Relative Humidity | 0～95% (no condensation) |
Product Dimensions
Length × Depth × Height | 440 × 230 × 45 (mm) |

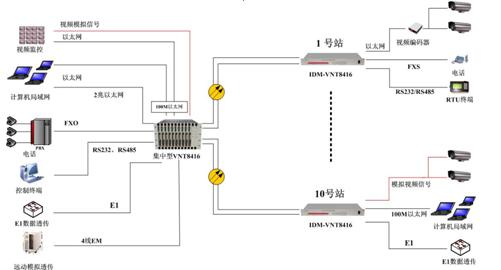

Application Example:
@@IMG2@@
