HDMI over IP Ethernet Extender

The Ethernet Extender is a high-bandwidth, high-definition video transmitter developed by our company using internationally advanced image processing chips. It is capable of transmitting HDMI, DVI, VGA, SDI, and CVBS video signals across multiple layers of switches.

The IDM-HD680X-DT/R is a product that extends HD video signals over Ethernet. This device converts HD video signals into high-bandwidth IP data, which is then restored to HD video signals through image processing chips. This transmission mode enables HD images to be transmitted across multiple layers of switches and supports one-to-many transmission within the same VLAN. When integrated with our distributed IP matrix, it enables arbitrary switching of thousands of video channels. It is suitable for various long-distance transmission applications such as HD cameras, digital signage, education, and video conference halls.

Product Features:

Ø HD (HDMI, DVI, VGA, SDI) image quality up to 1080P

Ø Compatible with multiple formats including 720P, 1080i, and 1080P

Ø Supports independent audio, data (RS232/485), and IR

Ø High-speed transmission over Ethernet with latency less than 200ms

Ø Supports hybrid transmission over Ethernet and fiber optic

Ø Supports multi-layer switch transmission within the same LAN

Ø Supports one-to-many transmission; multiple receivers can play simultaneously within the same VLAN

Ø Industrial-grade design, supports long-term uninterrupted operation, suitable for various complex environments

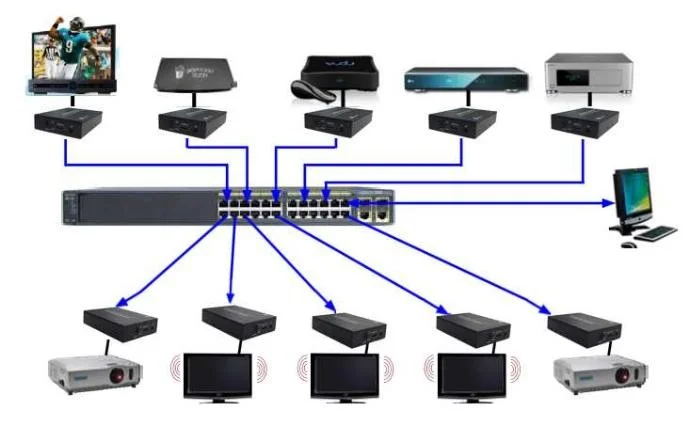

Application Diagram:
