IDM-TDO台式2路电话+2路数据光端机（不带以太网）
IDM-TDO台式多业务光端机主要提供2路电话接口； IDM-TDO台式多业务光端机将话音业务延伸到各用户区域，起到代替偏远小局，实现越界放号，缓解交换局的作用；或者在市区内解决双绞线在频带与传输距离的制约，使交换局的服务范围加大。
Gallery
title: "IDM-TDO Desktop 2-Channel Telephone + 2-Channel Data Optical Terminal (Without Ethernet)"
model: "IDM-TDO"
category: "Telephone Optical Terminal"
tags: [
"Single-Channel Telephone Optical Terminal",
"Dual-Channel Telephone Optical Terminal",
"Dual-Channel Telephone Optical Terminal Price",
"Dual-Channel Telephone Optical Terminal Manufacturer",
"Two-Channel Telephone Optical Terminal",
"2-Channel Telephone Optical Terminal - Raytrans"
]
description: "The IDM-TDO desktop multi-service optical terminal primarily provides 2 telephone interfaces; The IDM-TDO desktop multi-service optical terminal extends voice services to various subscriber areas, serving as a replacement for remote small exchanges, enabling cross-boundary subscriber provisioning, and alleviating the load on switching offices; Alternatively, it resolves the limitations of twisted pair in terms of bandwidth and transmission distance within urban areas, thereby expanding the service coverage of the switching office."
cover: "/images/imports/img-c7421792.webp"
images: [
"/images/imports/img-c7421792.webp",
"/images/imports/img-b9d3bfef.webp",
"/images/imports/img-e3883d8f.webp"
]
keywords: "Single-Channel Telephone Optical Terminal,Dual-Channel Telephone Optical Terminal,Dual-Channel Telephone Optical Terminal Price,Dual-Channel Telephone Optical Terminal Manufacturer,Two-Channel Telephone Optical Terminal,2-Channel Telephone Optical Terminal-Raytrans"
slug: "idm-tdots2ldh-2lsjgdj-bdytw"
publishDate: "2026-05-12"
Overview:
The IDM-TDO Telephone Optical Terminal primarily provides 2 telephone interfaces.
The IDM-TDO Telephone Optical Terminal extends voice services to various subscriber areas, serving as a replacement for remote small exchanges, enabling cross-boundary subscriber provisioning, and alleviating the load on switching offices; Alternatively, it resolves the limitations of twisted pair in terms of bandwidth and transmission distance within urban areas, thereby expanding the service coverage of the switching office. This optical terminal equipment can be widely applied in the telecommunications, electric power, banking, public security, military, education, and highway sectors for public switched telephone network (PSTN) access and dedicated line information transmission.
Product Features:
- Adopts a desktop chassis structure design, featuring high integration and compact size;
- 1 channel dual-fiber (single-fiber) optical path;
- Provides 2 standard telephone interfaces with Caller ID (CID) functionality;
- Equipped with comprehensive alarm indication functions;
Technical Specifications:
Optical Interface
Connector Type | FC (SC, etc. customizable) | Fiber Mode | Single-mode (Multi-mode optional) |
Optical Line Rate | 155Mbps±50ppm | Wavelength | 1310nm |
Transmit Power | -2～-11dBm | Receiver Sensitivity | Better than -36dBm |
FXO/FXS Interface
Audio Range | 300Hz~3400Hz | Impedance | Three-element compound impedance 200Ω+560Ω//0.1μF |
Compression Rate | A-law per ITU G.711 | Loop Current | 25mA/channel |
Power Supply and Consumption
Power Supply | DC5 or AC 220V | Total Power Consumption | 15W |
Environmental Conditions
Operating Temperature | 0°C ~ +50oC | Humidity | 95% non-condensing |

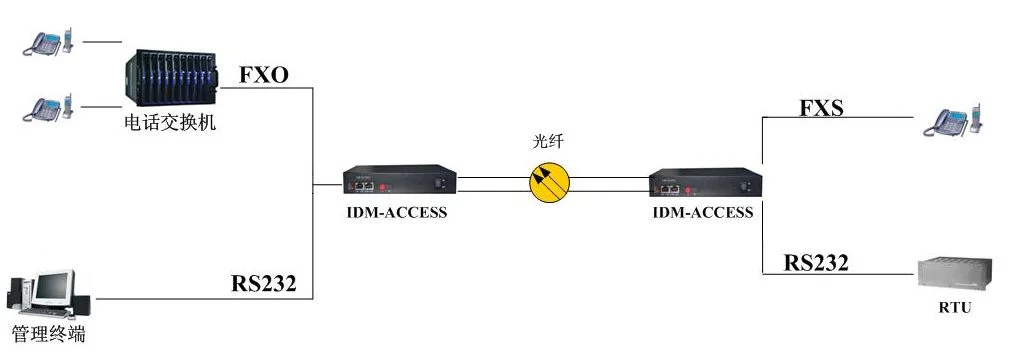

Application Example:
