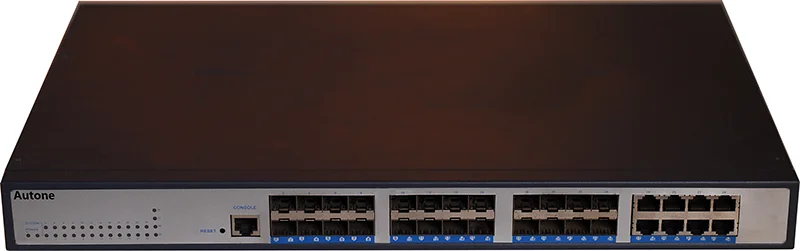

IDM S328GF
IDM S328GF
The S328GF series fiber optic Ethernet switch is developed by our company specifically for building automation, security surveillance, smart city, Tianwang system, electronic police, factory automation and other application environments; The S328GF fiber optic Ethernet switch provides 1~4 10G SFP Plus ports, offering maximum convenience for high-speed uplink and stacking; The S328GF fiber optic Ethernet switch series provides 24 1000Mbps SFP fiber ports, with single-mode/multi-mode, single-fiber/dual-fiber options available. The single-mode model comes standard with 20KM fiber transmission distance, and also offers optional 40KM/60KM/80KM and up to 200KM fiber transmission distances;
Product Overview:
The S328GF series fiber optic Ethernet switch is developed by our company specifically for building automation, security surveillance, smart city, Tianwang system, electronic police, factory automation and other application environments;
The S328GF fiber optic Ethernet switch provides 1~4 10G SFP Plus ports, offering maximum convenience for high-speed uplink and stacking;
The S328GF fiber optic Ethernet switch series provides 24 1000Mbps SFP fiber ports, with single-mode/multi-mode, single-fiber/dual-fiber options available. The single-mode model comes standard with 20KM fiber transmission distance, and also offers optional 40KM/60KM/80KM and up to 200KM fiber transmission distances;
The S328GF fiber optic Ethernet switch series provides 8 RJ45 10/100/1000BaseT(X) ports, supporting 10Mbps/100/1000Mbps auto-negotiation, full-duplex/half-duplex auto-negotiation, and MDI/MDIX polarity auto-sensing;
The S328GF fiber optic Ethernet switch series is dedicated to fiber aggregation in the central equipment room, supporting rich Layer 2/Layer 3 network switching functions such as VLAN, STP, QOS, ACL, routing, etc., making it an ideal choice for distributed networks accessing the central equipment room;
This product adopts a high-performance network switching chip, and all ports support non-blocking, wire-speed packet forwarding;
This product adopts a metal housing, which is aesthetically pleasing, sturdy and durable, with an operating temperature of -20°C to 70°C;
This fiber optic Ethernet switch product meets all indicators of CCC, CE/FCC, EN 61000 and other standards. Its high stability and high reliability performance make it an ideal choice for project applications.
Product Features:
l 10G uplink gigabit fiber aggregation switch
l Full support for Layer 3 network switching functions
l Provides 4 10G SFP Plus ports
l Provides 24 gigabit SFP fiber ports
l Provides 8 gigabit Combo SFP + RJ45 electrical ports
l Complies with IEEE 802.3 standards
l Non-blocking wire-speed forwarding between all ports
l Supports up to 4096 VLANs, supports IEEE 802.1Q standard VLAN
l Supports 802.1p QOS data priority transmission service
l Supports 9.6Kbyte jumbo frames
l Access Control List (ACL), supports Layer 2, 3, 4 and multiple protocols
l Supports STP, RSTP, MSTP spanning tree protocols
l Supports routing functions
l Broadcast storm suppression, broadcast/multicast/unicast adjustable
l Operating temperature -20~70°C, operating humidity 5%~95% non-condensing
Technical Specifications:
Item | Specification | Remarks |
Data Ports | ||
Ports | 1~4x 10GSFP+ Port | |
24x GigabitSFP Port | ||
8x GigabitRJ45 Port | ||
Data Rate | 10/100/1000Mbps , 10000Mbps | |
Switching Parameters | ||
Communication Standard | Compliant withIEEE 802.3 standard | |
MAC Address Table | 32Kbps | |
Switching Latency | <1us | |
Packet Buffer | 32Mbps | |
Switching Mechanism | Store-and-Forward | |
LEDIndicator | ||
Power | Power LED | |
Ports | Link/Act, Speed | |
Connector Types | ||
Optical Port | SFP： SC， LC | |
Electrical Port | 10/100/1000BaseT(X) RJ45 | |
Power Connector | GB StandardDC Power Jack | |
Optical Port Parameters | ||
Optical Port Type | SFP Optical Module | |
Transmission Distance | 20KM,40KM,60KM,80KM, 120KM, 200KM | |
Electrical & Mechanical Characteristics | ||
Power Input | AC 90~264V | |
Power Consumption | 70W | |
Overload Protection | Supported | |
Enclosure | Metal Enclosure | |
Dimensions (W x H x D) | 440mm x 43.6mm x 285m | |
Weight | 4.6KG | |
Mounting Method | Rack Mount | |
Operating Environment | ||
Operating temperature | -20°C ~ 70°C | |
Storage Temperature | -40°C ~ 85°C | |
Operating Humidity | 5% ~95% (Non-condensing) | |
Warranty | ||
Warranty Period | 3 Years | |

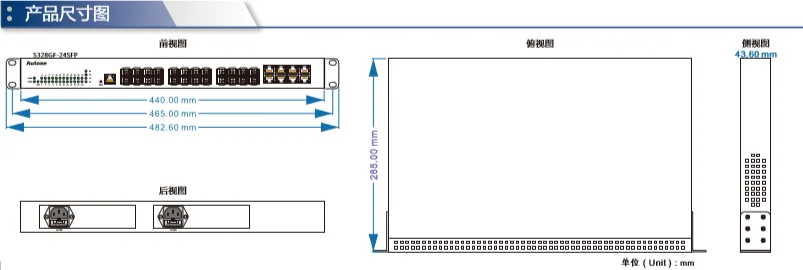

Product Dimensions:
