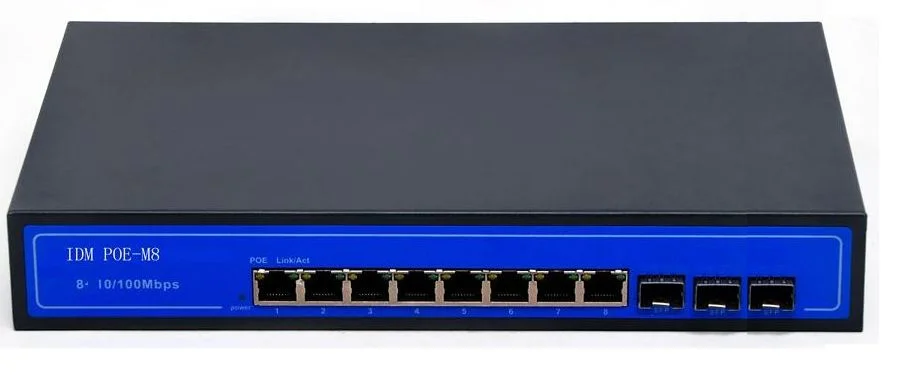

IDM POE-M8 POE Gigabit Optical Fiber Ethernet Switch

The IDM POE-M8 POE Gigabit Optical Fiber Ethernet Switch features 8 POE-powered RJ45 ports and 3 1000M SFP fiber module expansion slots, supporting gigabit optical ports for daisy-chain and tree network topologies. All 8 RJ45 ports support IEEE 802.3af/at standard PoE power supply, with VLAN isolation or shared gigabit connectivity. Maximum power output per port reaches 30W, with a total device capacity of 150W. It automatically detects and identifies powered devices compliant with IEEE 802.3af/at standards and delivers power through the network cable with priority mechanism.

Performance Features

Provides 8 10/100M auto-negotiation RJ45 ports with high-speed forwarding and zero packet loss.

Provides 3 1000Mbps SFP ports for seamless integration with optical fiber networks, enabling convenient connection to fiber backbone networks.

Each port supports MDI/MDIX auto-crossover and auto-negotiation.

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control. Superior PoE power delivery performance with intelligent power management. Ports 1-8 feature PoE detection; if the powered device's power requirement exceeds the IEEE 802.3af standard, the system automatically activates the IEEE 802.3at standard with priority-based port powering.

Compliant with IEEE 802.3af/at standards, automatically detects and identifies PD devices compliant with IEEE 802.3af/at standards and supplies power to them. Single-port power delivery up to 30W.

Flexible Expansion Capability

The IDM POE-M8 POE Gigabit Optical Fiber Ethernet Switch is simple and convenient to use — no configuration required, plug-and-play, with strong compatibility, no device damage risk, high-speed transmission, zero packet loss, and flexible expansion. The network is not constrained by power supply wiring layouts, saving user costs. It meets the requirements of network environments with high-density PoE power demands, making it ideal for financial institutions, government agencies, hotels, shopping malls, campuses, hospitals, and small-to-medium enterprises to build cost-effective and efficient networks.

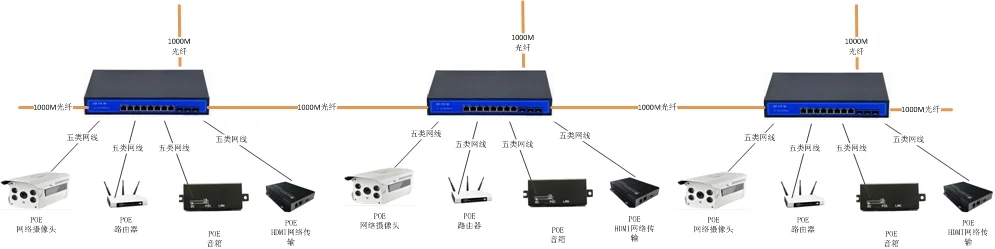

It is widely applied in POE network camera surveillance, POE Wi-Fi coverage, POE network broadcasting systems, POE IP distributed video wall systems, POE IoT smart sensors, and more.

Technical Specifications

Ports 1 to 8 support IEEE 802.3af/at

PoE port output power: 15.4W/30W IEEE 802.3af/at

PoE power transmission wire pairs: 1/2+, 3/6- (optional 4/5+, 7/8- wire pairs)

Total PoE power: ≤150W

PoE connection standard: IEEE 802.3af/IEEE 802.3at

PoE type: End-span

POE power transmission distance: ≤200 meters

Network standards: IEEE 802.3, IEEE 802.3u, 802.3x, 802.3af/at

Network signal transmission distance: ≤100 meters

Forwarding mode: Store-and-forward

Forwarding rate: 10BASE-T: 14880 PPS/port

MAC address: 1K MAC address table

Port functions: Power priority mechanism, fast forwarding, MAC auto-learning and aging

IEEE 802.3X full-duplex flow control and Backpressure half-duplex flow control

LED indicators: Each port has 1 LINK/ACT indicator

LED indicators: POE Status indicator, device power indicator

Operating environment: Operating temperature: -10°C to 55°C

Input power: AC100-240V 50/60Hz

Device power: Maximum 150W (when powering)

Weight: 1.7kg

Dimensions: 270mm*180mm*44mm (L*W*H)
