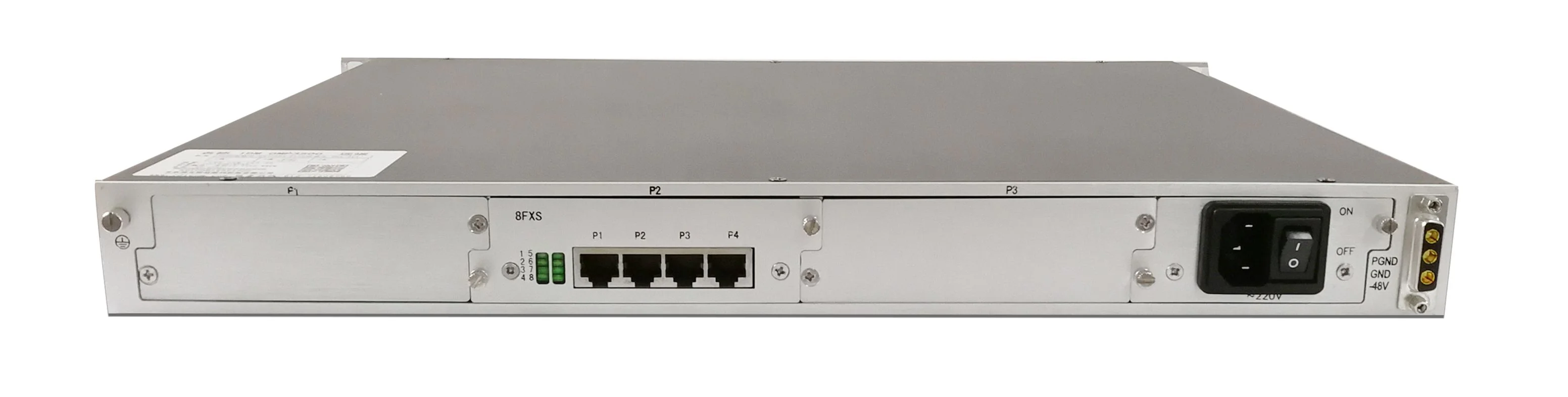

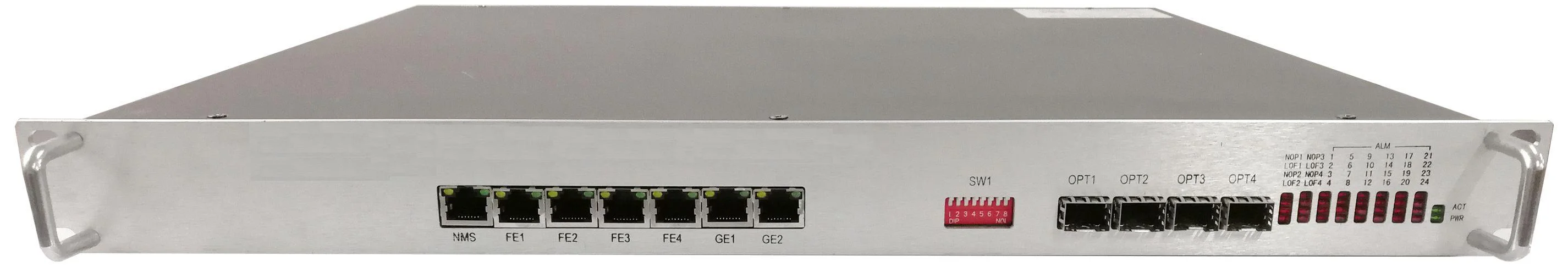

IDM OMP8000 Multi-Service Gigabit Telephone Optical Terminal

The IDM OMP8000 Multi-Service Gigabit Telephone Optical Terminal, developed by Beijing Raytrans Digital Technology Co., Ltd., adopts a modular functional design and provides comprehensive monitoring, access, protection, and network management capabilities for various services.

The IDM OMP8000 Multi-Service Gigabit Telephone Optical Terminal is an ultra-broadband, multi-service optical transmission system built on PDH, Ethernet, and PCM technologies, fully compliant with ITU-T standards. This equipment provides two 2.5G optical interfaces (A and B), up to 8 physically isolated Gigabit Ethernet ports, 4 physically isolated Fast Ethernet ports, and 16 E1 interfaces. It also supports multiple 64K services including FXS/FXO, V.35/V.24, hotline, and magneto telephone, as well as video signal access for convenient video surveillance system deployment. This equipment can be used to build point-to-point, point-to-multipoint chain, and ring transmission networks. The entire unit adopts a plug-in card structure, allowing configuration of different quantities and types of service cards and plug-in modules according to actual requirements, which not only reduces initial investment but also facilitates future expansion, upgrades, and maintenance.

The IDM OMP8000 Multi-Service Gigabit Telephone Optical Terminal primarily serves as the client-side access layer for data communication networks. The equipment meets the demands of network edge users for diverse access technologies and transmission services, and can be integrated with our company's IDM MSAP-G3CP Integrated Service Fiber Transmission Equipment for complex networking applications in telecommunications, transportation, energy, and other sectors. The network management platform can adopt Beijing Raytrans Digital Technology Co., Ltd.'s Netguard network management system, providing hierarchical, powerful management capabilities based on a server/client model.

Ø 19-inch standard 1U chassis with 3 service slots;

Ø Provides 2 SFP 2.5G optical transmission interfaces, supporting point-to-point, chain, ring, or 1+1 protection network configurations;

Ø Provides 8 groups of physically isolated Gigabit Ethernet and 4 groups of physically isolated Fast Ethernet;

Ø Provides up to 16 groups of transparent E1 transmission;

Ø Provides up to 30 channels of narrowband PCM service access capability;

Ø Configurable for mutual backup between PCM services on the fiber and the first E1;

Ø Supports FXS/FXO and magneto telephone cards, with 10/8 service interfaces per card;

Ø 2/4-wire EM interface card, with 4 interfaces per card;

Ø RS232/RS422/RS485 with 8 interfaces per card;

Ø USER universal interface card, supporting mixed installation of 4 PCM service modules, with up to 2 channels per module;

Ø Supports HDMI HD video interface;

Ø Supports SNMP network management;

Ø Supports video surveillance and video conference cards;

Ø Supports dual power supply: DC-48V and AC220V.

Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode (Multi-mode optional)
Rate	2.5Gbps	Wavelength	1310/1490/1550
Transmit Power	-1~-10dB	Receiver Sensitivity	Better than-24dBm

E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	ITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/31	Mode	Transparent

Ethernet

Transmission Rate	10M or 100M or 1000M
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO, FXS Interfaces

Audio Range	300Hz~3400Hz	Compression	A-law per ITU G.711
Impedance	Three-element complex impedance 200Ω+560Ω//0.1μF	Loop Current	25mA/channel

Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant withITU G.703 Recommendation

EM2/4-Wire Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	A-law per ITU G.711	Return Loss	Not less than 18dB

Magnetic Ring Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	A-law per ITU G.711	Return Loss	Not less than 18dB

V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Compliant withCCITT V.28protocol

V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps（n=0～31）	Terminal Interface	Compliant withISO2593Specification

Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Power Consumption

≤90W

Environmental Conditions

Operating Temperature

-20oC ~+50oC

Relative Humidity

0~95% (non-condensing)

Product Dimensions

Length×Depth×Height

480mm*308mm*131mm (mm)
