Overview

The IDM OMP3500-180 Physically Isolated Gigabit Ethernet Optical Terminal, developed by Beijing Raytrans Digital Technology Co., Ltd., adopts a modular functional design and provides comprehensive service monitoring, access, protection, and network management capabilities.

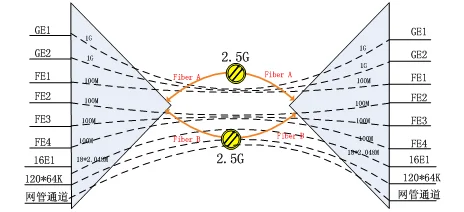

The IDM OMP3500-180 Physically Isolated Gigabit Ethernet Optical Terminal is an ultra-wideband, multi-service optical transmission system centered on PDH, Ethernet, and PCM technologies, fully compliant with ITU-T standards. This equipment provides two 2.5G optical interfaces (A and B), up to 2 physically isolated wire-speed Gigabit Ethernet ports, 4 physically isolated wire-speed Fast Ethernet ports, and 16 E1 interfaces. It also supports multiple 64K services including FXS/FXO, V.35/V.24, hotline, and magneto telephone, and can accommodate video signals for convenient video surveillance system deployment. This equipment can be used to build point-to-point, point-to-multipoint chain, and ring transmission networks. The entire unit adopts a plug-in card structure, allowing configuration of different quantities and types of service cards and plug-in modules according to actual requirements, which not only reduces initial investment but also facilitates future expansion, upgrades, and maintenance.

Features

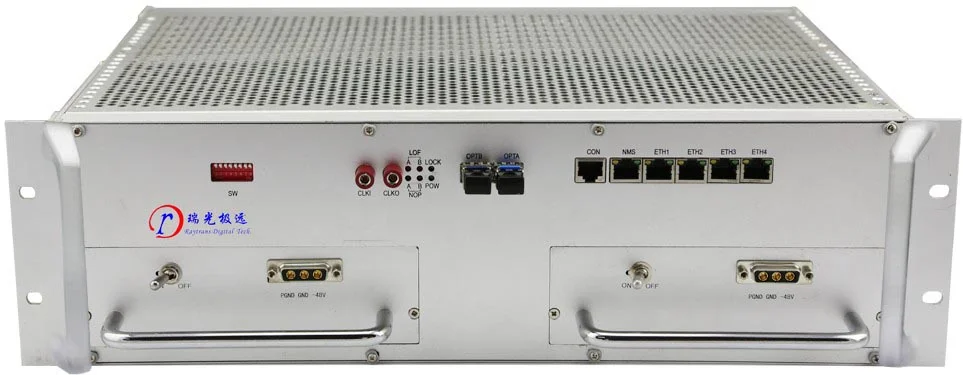

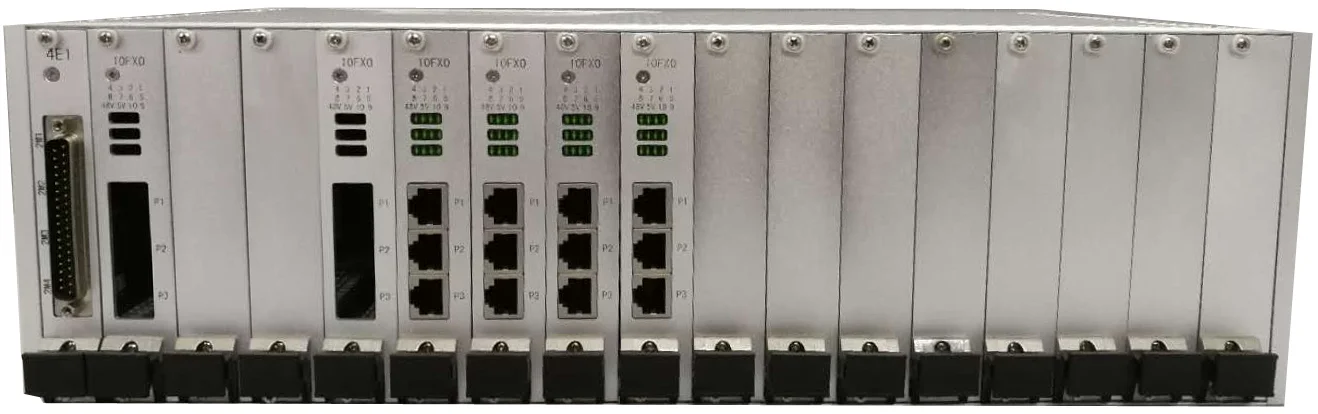

Ø 19-inch standard 3U chassis with 17 service slots;

Ø Provides 2 SFP 2.5G optical transmission interfaces, supporting point-to-point, chain, ring, or 1+1 protection network configurations;

Ø Provides 2 groups of physically isolated wire-speed Gigabit Ethernet and 4 groups of physically isolated wire-speed 100M Ethernet;

Ø Provides up to 16 groups of transparent E1 transmission (supporting up to 480 channels of 64K services);

Ø Provides up to 120 channels of narrowband PCM service access capacity;

Ø 2 groups of wire-speed Fast Ethernet can be expanded via the rear 8-port Ethernet switching card;

Ø Can be configured for mutual backup between optical fiber and PCM services on the first E1;

Ø Supports FXS/FXO and magneto telephone cards, with 10/8 service interfaces per card;

Ø 2/4-wire E&M interface card, with 4 interfaces per card;

Ø RS232/RS422/RS485 with 8 interfaces per card;

Ø USER universal interface card, supporting mixed installation of 4 PCM service modules, with up to 2 channels per module;

Ø Supports HDMI high-definition video interface;

Ø Supports SNMP network management;

Ø Supports video surveillance and video conference cards;

Ø Supports DC-48V and AC220V dual power supply.

Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode (Multi-mode optional)
Rate	2.5Gbps	Wavelength	1310/1490/1550
Transmit Power	-1~-10dB	Receiver Sensitivity	Better than-24dBm

E1 Interface

Line Rate	2.048Mbps	Line Code	HDB3
Standard Protocol	ITU-T G.703	Impedance	75Ω/120Ω
Frame Structure	PCM30/31	Mode	Transparent

Ethernet

Transmission Rate	10M or 100M or 1000M
Standard Protocol	Supports IEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO, FXS Interfaces

Audio Frequency Range	300Hz~3400Hz	Compression Rate	A-law per ITU G.711
Impedance	Triple complex impedance 200Ω+560Ω//0.1μF	Loop Current	25mA/channel

Co-directional 64K Interface

Line Code	G.703 Standard	Line Rate	64Kbps
Impedance	Balanced120Ω	Fully compliant withITU G.703 Recommendation

EM2/4-Wire Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Compression Rate	A-law per ITU G.711	Return Loss	Not less than 18dB

Magnetic Ring Interface

Audio Frequency Range	300Hz~3400Hz	Impedance	Balanced600Ω
Companding	A-law per ITU G.711	Return Loss	Not less than 18dB

V.24 Interface

Transmission Rate

Asynchronous≤9600bps; Synchronous64Kbps

Electrical Characteristics

Compliant withCCITT V.28protocol

V.35 Interface

Interface Type	RJ-45	Electrical Characteristics	Compliant withITU-T V.35Recommendation
Transmission Rate	n×64Kbps（n=0～31）	Terminal Interface	Compliant withISO2593Specification

Power Supply and Power Consumption

Power Supply

AC220V/DC-48V

Power Consumption

≤90W

Environmental Conditions

Operating Temperature

-20oC ~+50oC

Relative Humidity

0~95% (non-condensing)

Product Dimensions

Length×Depth×Height

480mm*308mm*131mm (mm)

The IDM OMP3500-180 physically isolated Gigabit Ethernet optical transceiver is primarily used for service access at the client-side access layer in data communication networks. The device meets the requirements of network edge users for diverse access technologies and varied transmission services, and can be deployed in combination with our company's IDM MSAP-G3CP integrated service optical fiber transmission equipment to realize complex networking, serving the telecommunications, transportation, energy and other sectors. The network management platform can adopt the Netguard network management system from Beijing Raytrans Digital Technology Co., Ltd., providing powerful hierarchical management capabilities based on a server/client architecture.
