IDM OMP200-30E Ultra-Broadband Integrated Service Optical Multiplexer
The IDM OMP200-30E Ultra-Broadband Integrated Service Optical Multiplexer utilizes standard optical fiber transmission channels (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup and directly offers multiple user interfaces including voice, wire-speed 100M Ethernet, and E1. Meanwhile, this optical terminal features easy installation and is adaptable to various application environment requirements.
Gallery
I. Overview
The IDM OMP200-30E Ultra-Broadband Integrated Service Optical Multiplexer is one of the PCM integrated service transmission equipment series designed by our company using large-scale integrated circuits. This optical terminal utilizes standard optical fiber transmission channels (G.703 standard) and adopts the PCM30/31 format. It provides dual-fiber mutual backup and directly offers multiple user interfaces including voice, wire-speed 100M Ethernet, and E1. Meanwhile, this optical terminal features easy installation and is adaptable to various application environment requirements.
II. Product Features
Ø Standard 19-inch 1U chassis architecture for easy installation;
Ø Provides 2 x 250M SFP optical interfaces, supporting dual optical port 1+1 protection;
Ø Provides 30 standard-defined telephone interfaces;
Ø Provides 2 independent wire-speed 100M Ethernet interfaces;
Ø Provides 4 E1 interfaces supporting transparent transmission mode;
Ø Provides a standard SNMP network management interface;
Ø Equipped with comprehensive function control switches and alarm indication features.
III. Technical Specifications
Optical Interface
Interface Type | SFP | Fiber Mode | Single-mode (Multi-mode optional) |
Fiber Rate | 250M | Wavelength | 1310nm/1550nm |
Transmit Power | -1~-3dBm | Receiver Sensitivity | Better than-24dBm |
E1 Interface
Line Rate | 2048Kbps | Line Code | HDB3 |
Standard Protocol | Supports ITU-T G.703 | Impedance | 75Ω |
Frame Structure | PCM30/31 | Mode | Transparent |
Ethernet
Interface Type | RJ45 | Transmission Rate | 10M/100M/1000M |
Standard Protocol | SupportsIEEE802.3 | Operating Mode | Full/Half Duplex/Auto-Negotiation |
FXO/FXS Interfaces
Audio Frequency Range | 300Hz~3400Hz | Impedance | Three-element complex impedance200Ω+560Ω//0.1μF |
Compression Ratio | A-law per ITU G.711 | Loop Current | 25mA/channel |
Power Supply and Power Consumption
Power Supply | DC-48V / AC 220V / Dual Power | Power Consumption | ≤100W |
Environmental Conditions
Operating Temperature | 0ºC～40ºC | Humidity | ≤90%（无凝结状态） |

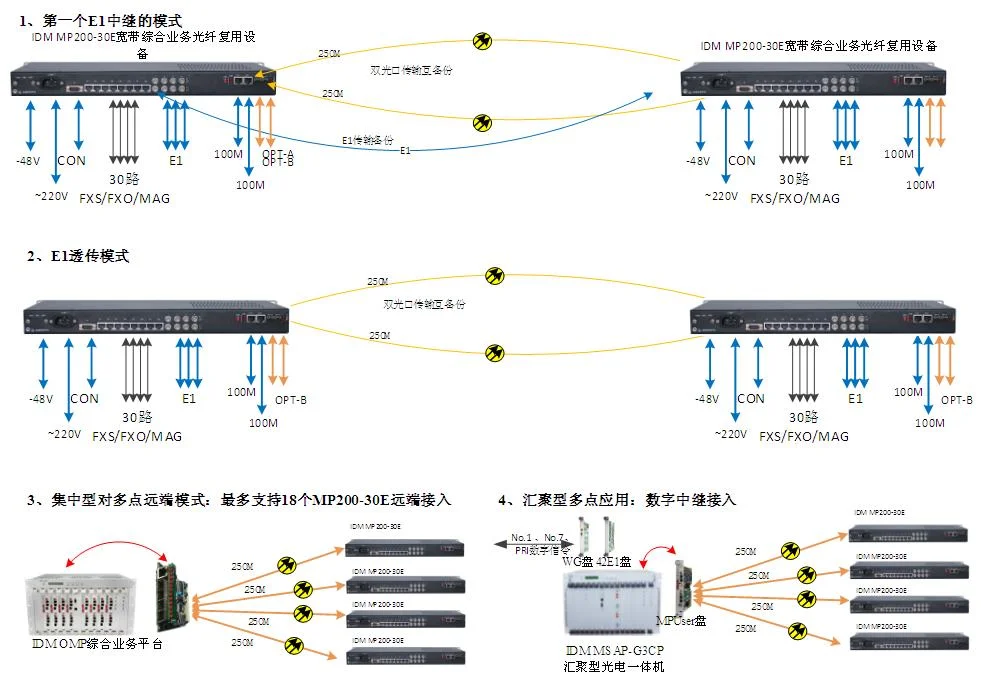

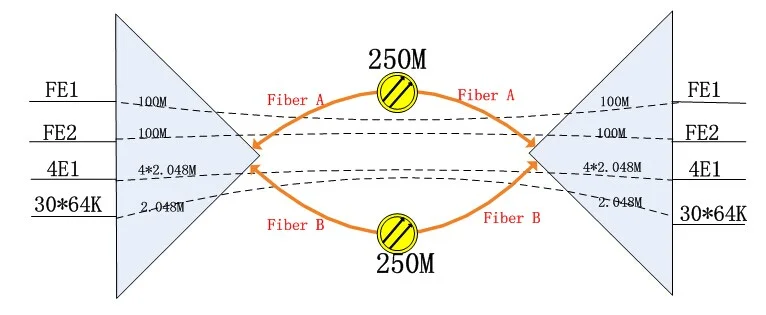

IV. Application Example
