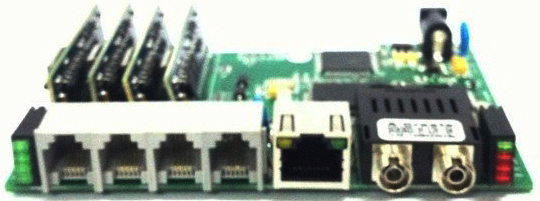

IDM-NT104 Desktop 4-Port Telephone Optical Terminal
The IDM-NT104 Desktop 4-Port Telephone Optical Terminal features a compact desktop chassis design. It provides 4 telephone interfaces and 1 100M high-speed Ethernet interface via a single optical channel. This device extends voice and data services to remote user areas, effectively replacing remote small exchanges, enabling cross-boundary number allocation, and alleviating pressure on central switching offices. It also resolves bandwidth and transmission distance limitations of twisted-pair cables in urban areas, expanding the service coverage of switching offices. Widely applicable in telecommunications, data services, power, banking, public security, military, education, expressway, and other sectors for public telephone network access and dedicated line information transmission.
Gallery
Overview of 4-Port Telephone Optical Terminal
The IDM-NT104 Telephone Optical Terminal extends voice and data services to various user areas, effectively replacing remote small exchanges, enabling cross-boundary number allocation, and alleviating pressure on central switching offices. It also overcomes bandwidth and transmission distance limitations of twisted-pair cables in urban environments, thereby expanding the service coverage of switching offices. This device is widely used in telecommunications, data services, power, banking, public security, military, education, expressway, and other sectors for public telephone network access and dedicated line information transmission.
@@IMG0@@
@@IMG1@@

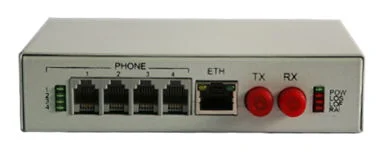

Product Features of 4-Port Telephone Optical Terminal
[*] Desktop chassis design with high integration and compact size;
[*] One dual-fiber (single-fiber) optical channel;
[*] Four standard telephone interfaces with caller ID support;
[*] One 100M Ethernet channel;
[*] Comprehensive alarm indication functions;
Technical Specifications of 4-Port Telephone Optical Terminal
Optical Interface
Interface Type | FC (customizable to SC, etc.) | Fiber Mode | Single-mode (optional multimode) |
Fiber Rate | 155bps±50ppm | Wavelength | 1310nm |
Optical Output Power | -2～-11dBm | Receiver Sensitivity | Better than -36dBm |
Ethernet
Interface Type | RJ-45 | Transmission Rate | 10/100Base-T 10M/100M |
Standard Protocol | Supports IEEE802.3 | Operating Mode | Full/Half-duplex / Auto-negotiation |
WAN Transmission Rate | 100% line-speed 100M | ||
FXO/FXS Interface
Audio Range | 300Hz~3400Hz | Impedance | Three-element composite impedance 200Ω+560Ω//0.1μF |
Compression Rate | ITU G.711 A-law | Loop Current | 25mA per port |
Power Supply and Power Consumption
Power Supply | DC5 or AC 220V | Overall Power Consumption | 25W |
Environmental Conditions
Operating Temperature | 0℃～50℃ (operating) | Humidity | 95% non-condensing |
Product Dimensions
Length × Depth × Height | 125 × 100 × 46 (mm) |
