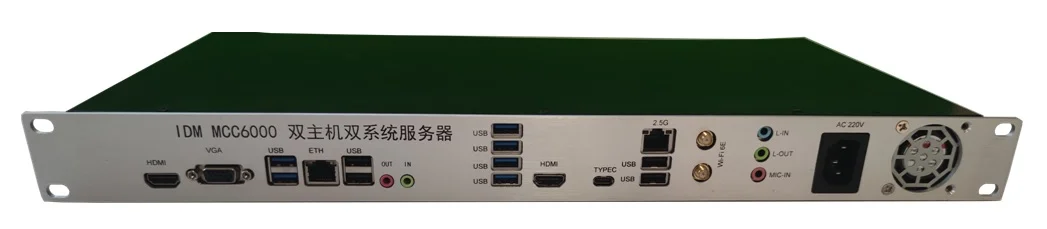

IDM MCC6000A Dual-Host Dual-System Server

I. Requirements Analysis

In some small-scale integrated communication systems, the system needs to support both Linux and Windows environments to meet application and service deployment requirements, with only moderate computing performance required. If a high-performance server is purchased, a virtual machine environment must be installed to achieve a dual-system environment, which reduces server utilization efficiency. Moreover, such servers are often bulky and unsuitable for portable field use. Therefore, a compact dual-system server capable of accommodating dual computer motherboards is required.

II. Application Areas

u Integrated dispatch platforms, triple-play communication networks, IoT audio/video systems, and emergency command systems;

u Typically used with security gateways in military, industrial, and mining enterprises with multiple independent isolated networks, reducing the need for security gateways.

u Servers that need to run on different operating systems. For example, in an integrated dispatch system, the SIP softswitch system typically runs on Linux, while the dispatch server typically runs on Windows;

u Used when the softswitch server and dispatch server operate on physically isolated networks. Dispatch system commands are exchanged with the softswitch server via serial ports, and internal/external network voice services are implemented through voice interfaces. This eliminates IP network interconnection, enhancing system security.

u Internal/external network information isolation servers (high-speed serial transmission, one-way information transfer, and disk-burning mode transmission).

III. Product Advantages

(1). No virtual environment nesting, ensuring high utilization efficiency of computer motherboards;

(2). Easy to maintain, transport, and install; compact size and light weight, making it suitable for portable systems;

(3). The Linux system is commonly used to install SIP softswitch servers, IoT servers, audio/video servers, and user application servers, which reduces virus infection risks, enhances security, and avoids copyright disputes;

(4). The Windows system is typically used to install user software such as operation terminals, offering high flexibility for interface applications;

(5). Conveniently meets the diverse server requirements of small-scale complex systems.

IV. Product Functions and Technical Specifications

(1). 19-inch 1U chassis, built-in dual computer motherboards, supporting dual operating systems;

(2). 12V power supply, suitable for field and vehicle-mounted use, and can be powered by batteries;

(3). Computer motherboard configurations can be flexibly customized according to user requirements;

(4). Linux system motherboard;

a) Intel 610 chipset;

b) 12th Gen I3 CPU, 4 cores, 2.0GHz - 2.8GHz (I3, I5, I7 CPUs available on request);

c) 16G DDR4 dual-channel memory (capacity configurable on request);

d) 1TB SSD (capacity configurable on request);

e) Gigabit RJ45 Ethernet port;

f) HDMI output.

(5). Windows system motherboard;

a) Intel 13th Gen I7 13700F, 16 cores, 24 threads, 32G DDR4, 4TB SATA, HDMI and DP video outputs, 7.1-channel 5-jack audio interface;

b) 1 x 2.5G Ethernet electrical port;

c) 2 x USB3.2, 2 x USB2.0;

d) 1 x RJ45 Gigabit Ethernet port;

e) 3.5mm audio input/output.
