IDM MAG-2E1数字中继网关设备

---

title: "IDM MAG-2E1 Digital Trunk Gateway"
model: "IDM MAG"
category: "IP Access Gateway"
tags: [
"Digital Trunk Gateway Device",
"Trunk Gateway",
"Digital Trunk Gateway",
"Digital Trunk Gateway Quotation",
"Digital Trunk Gateway Manufacturer"
]
description: "The IDM MAG-2E1 Digital Trunk Gateway implements protocol conversion between IMS/SIP and ISDN PRI (30B+D) call signaling through Ethernet ports and E1/T1 interfaces, enabling the connection between next-generation IP voice service networks and enterprise-side traditional Private Branch Exchange (PBX) systems, or connecting next-generation enterprise IP voice switches (IP-PBX) with the traditional PSTN network. The MAG-2E1 supports 1 to 4 E1/T1 links and 512 SIP trunk account registrations, meeting the VoIP requirements of medium and large enterprises. With 6000MIPS processing capability, the MAG-2E1 gateway ensures voice processing (G.711",
"cover": "/images/imports/img-6762370a.webp",
"images": [
"/images/imports/img-6762370a.webp"
],
"specs": {
"Network": "Telnet, SSH, HTTP, HTTPS, DHCP client, PPPoE client, DNS, STUN",
"Fax": "G.711 pass-through fax, T.38 fax, compatible with G3 fax machines, maximum rate 33.6kbps (pass-through)",
"Voice Quality Enhancement": "Echo cancellation (G.168-2004), jitter buffer, silence suppression (VAD/CNG), PLC",
"Media Proxy": "Media stream RTP packet forwarding, firewall traversal, NAT traversal",
"Authentication and Registration": "Supports gateway registration and authentication, 512 SIP trunk account registrations",
"Others": "Number translation, call routing (500 entries), number digit maps, RADIUS billing interface",
"DTMF": "In-band voice transmission, RFC2833, SIP-INFO",
"Port Customization": "SIP port, HTTP/HTTPS access ports, RTP ports",
"Encryption": "SIP signaling encryption, media stream encryption, encrypted configuration file import/export, password encryption",
"Malicious Intrusion Prevention": "Access whitelist, ping disable, SIP trusted addresses",
"Disaster Recovery Mechanism": "Active/standby SIP server switchover",
"Auto Provisioning": "TFTP, FTP, HTTP or HTTPS file download; ACS address acquisition via DHCP option 66 or redirect",
"Data Capture and Recording": "Port voice recording, packet capture",
"Status and Statistics": "Call status and statistics, system status, ISDN status",
"ISDN Maintenance": "ISDN link bit error rate testing, local loopback, and B/D channel status query",
"Firmware Upgrade": "Via device web interface, via remote auto-provisioning system",
"T1/E1 Interfaces": "4 (maximum 120 concurrent channels)",
"SD Card Interface": "1",
"CON Configuration Interface": "RJ45",
"Flash Memory": "64 MB",
"Net Weight": "Maximum 3kg",
"Single/Dual DC Power Supply": "-36 to -72 VDC, maximum 2.5 A",
"Maximum Power Consumption": "18 W",
"Operating Environment": "Temperature: 0 to 40°C; Relative humidity: 10% to 90% (non-condensing)",
"Storage Environment": "Temperature: -40 to 70°C; Relative humidity: 5% to 90% (non-condensing)"
},
"keywords": "Digital Trunk Gateway Device,Trunk Gateway,Digital Trunk Gateway,Digital Trunk Gateway Quotation,Digital Trunk Gateway Manufacturer",
"slug": "idm-mag-2e1",
"publishDate": "2026-05-12"
}

1. Overview

The IDM MAG-2E1 Digital Trunk Gateway (hereinafter referred to as "MAG-2E1") implements protocol conversion between IMS/SIP and ISDN PRI (30B+D) call signaling through Ethernet ports and E1/T1 interfaces, enabling the connection between next-generation IP voice service networks and enterprise-side traditional Private Branch Exchange (PBX) systems, or connecting next-generation enterprise IP voice switches (IP-PBX) with the traditional PSTN network.

The MAG-2E1 supports 1 to 4 E1/T1 links and 512 SIP trunk account registrations, meeting the VoIP requirements of medium and large enterprises.

With 6000MIPS processing capability, the MAG-2E1 gateway ensures that even under full-load operation of 120 concurrent calls, it can still perform voice processing (G.711/G.729A/G.723.1), echo cancellation, and fax relay (T.38).

Security protection measures supported by the MAG-2E1 include: signaling and media stream encryption, automatic password strength detection, brute-force password attack prevention, encrypted storage of user data, Telnet/SSH function enable/disable, access whitelist, and system log backup.

The MAG-2E1 is equipped with dual Ethernet port redundancy protection to ensure calls are not affected by partial network failures. Additionally, optional 1+1 DC/AC power supply modules are available to meet user requirements for high reliability. In terms of deployment, the MAG-2E1 provides a disaster recovery mechanism for active/standby SIP server registration and switchover. With comprehensive security policies, the MAG-2E1 provides multi-layered, all-around security protection, supporting multiple malicious intrusion prevention mechanisms to effectively address security risks such as brute-force attacks on the management platform and SIP attacks, ensuring worry-free communication and management while meeting the security requirements of enterprises and carriers.

2. Features

• Supports SIP and IMS protocols;
• 500 routing and number translation rules;
• Dual Ethernet port / dual power supply redundancy protection;
• 512 SIP trunk account registrations;
• Supports TLS/SRTP encryption;
• Supports voice VLAN;
• Supports remote management, monitoring, and O&M;
• Supports network management system;
• Compatible with Cisco CallManager/CUCM, Broadsoft, Microsoft Skype for Business (formerly Lync), Huawei IMS, VoS, FreeSWITCH, and Asterisk/Elastix business platforms;
• Provides 3.5kV lightning protection.

3. Device Structure

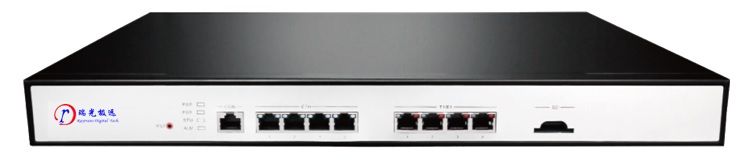

IDM MAG-2E1 Digital Trunk Gateway Device

4. Feature List

Category	Function/Specification Name	Specification/Description
Protocol	Call Control	SIP/UDP and SIP/TCP (RFC3261 IMS platform (3GPP Network	TelnetSSHHTTPHTTPSDHCP client,PPPoE client,DNSSTUN
	Media	Voice Codec	G.711G.729AG.723.1GSMiLBC
Fax		G.711 pass-through fax,T.38 fax, compatible with G3 fax machines, up to 33.6kbps (pass-through)
Voice Quality Enhancement		Echo cancellation (G.168-2004VAD/CNGPLC
Media Proxy		Media stream RTP packet forwarding, firewall traversal,NAT traversal
Authentication & Registration		Supports gateway registration and authentication,512 SIP Other	Number translation, call routing (500 RADIUS QoS	QoS	DiffServTOS802.1P/Q VLAN
Signaling		PSTN E1 ISDN PRI30 B+D T1 ISDN PRI23 B+DANSI NI-2 5ESS DMS DTMF	RFC2833SIP-INFO
	Security	Protocol	HTTPSSSHTLSSRTP
SIP HTTP/HTTPS RTP SIP / PingSIP SIP TFTPFTPHTTP HTTPS ACS DHCP option 66 5. Hardware Specifications Category Specification Item Specification Details Hardware Interfaces Ethernet Ports RJ45, 4×10/100/1000 Base-T, auto-negotiation T1/E1 Interfaces 4 (up to 120 concurrent channels) SD Card Interface 1 CON Configuration Interface RJ45 Hardware Configuration System Memory 512 MB Flash Memory 64 MB Physical Specifications Height × Width × Depth (1U) 44 × 440 × 300 mm Net Weight 3 kg max Power Supply Single/Dual AC Power Supply 100–240 V, 50/60 Hz, 1 A max Single/Dual DC Power Supply -36 to -72 V, 2.5 A max Maximum Power Consumption 18 W Installation & Environment Mounting Method Rack-mount Operating Environment Temperature: 0–40°C; Relative Humidity: 10%–90% (non-condensing) Storage Environment Temperature: -40–70°C; Relative Humidity: 5%–90% (non-condensing) Related Products IDM-RG2000 SIP电台网关 IDM-RG2000 IDM RG5200融合调度综合网关 IDM RG5200 ← Back to Products
