Overview:

The IDM-ENT448 centralized telephone optical terminal utilizes the fiber interfaces, digital trunk ports, or analog subscriber interfaces equipped on the central office switch to extend voice and data services to various subscriber areas through the IDM device. It serves as a substitute for remote small exchanges, enabling cross-boundary subscriber provisioning and deferring the construction of switching offices. Alternatively, it resolves the constraints of twisted-pair cabling in terms of frequency band and transmission distance within urban areas, thereby expanding the service coverage of the switching office.

Product Features:

• 19-inch 4U standard card-chassis optical terminal frame;
• Dual -48V power supply; 10 service card slots;
• Each service card provides 4 Ethernet channels, 4 E1 interfaces, and 8 telephone interfaces;
• Comprehensive function control switches and alarm indication features;

Technical Specifications:

Optical Interface

Connector Type	FC (SC etc. customizable)	Fiber Mode	Single-mode (Multi-mode optional)
Optical Line Rate	155Mbps±50ppm	Wavelength	1310nm
Transmit Power	-2～-11dBm	Receiver Sensitivity	Better than -36dBm

E1 Interface

Bit Rate	2048Kbps	Line Code	HDB3
Standard Protocol	ITU-T G.703 compliant	Impedance	75Ω/120Ω
Frame Structure	PCM30/31	Signaling	Channel Associated Signaling

Ethernet

Connector Type	RJ-45	Transmission Rate	10/100Base-T 10M/100M
Standard Protocol	IEEE802.3 compliant	Duplex Mode	Full/Half Duplex/Auto-negotiation

FXO/FXS Interface

Audio Range	300Hz～3400Hz	Impedance	Three-element compound impedance 200Ω+560Ω//0.1μF
Compression Rate	ITU G.711 A-law	Loop Current	25mA/channel

Power Supply and Consumption

Power Supply

DC-48V or AC 220V

Total Power Consumption

40W ±10%

Environmental Conditions

Operating Temperature

0ºC～40ºC

Humidity

≤90% (non-condensing)

Product Dimensions

Length×Depth×Height

440×230×176 (mm)

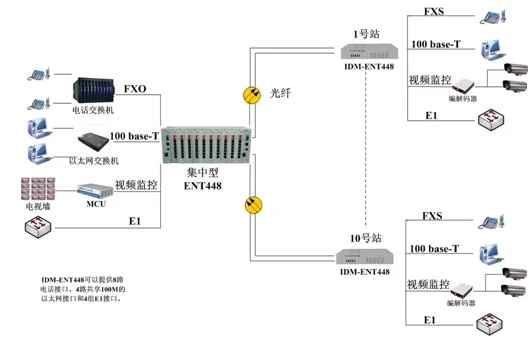

Application Example:
