  specs:
• "Form Factor: 19-inch 3U rack-mounted, plug-in design"
• "User Slots: 9 available slots"
• "Supported Boards: 8FE Ethernet Switch, 8E1 Service, PDH, HD Video Codec, various 64K service boards"
• "Supported Interfaces: WG300, PDH, E1, FXO/FXS, V.24/V.28/V.35, EM2/4, Hotline, Magneto Telephone, High-fidelity Audio, X.50, 10M/100M Ethernet"
• "Radio Interface: Compatible with IDM-RADIO2EM24 audio interface box for multi-channel radio access"
• "Wireless Radio Interface: GSM/CDMA interface"
• "Dispatch Capacity: 240 channels per chassis"
• "5-in-1 2-wire Audio Card: 3U-8MVOICE; 8 channels per card; each channel configurable as FXO/FXS/Hotline/Magneto/2100Hz Magneto mode"
• "EoS Ethernet: 4 physically isolated EoS Ethernet groups; each group bandwidth: N×VC12 (N=1~50); each group includes 1 reserved expansion Ethernet port"
• "Integrated Technologies: SDH transmission, PBX voice switching, multimedia Command & Dispatch, PCM service access, video access"
• "SFP Interfaces: 2 STM-1 optical interfaces; supports ring, chain, and star topologies"
• "TDM Cross-Connect: 252×252 VC-12 level non-blocking cross-connection; supports unidirectional, bidirectional, and broadcast services"
• "Single Board Cross-Connect: 512×512 64K-level non-blocking cross-connection; supports unidirectional, bidirectional, and broadcast services"
• "Synchronous Equipment Timing Source (SETS): Optional tracking of optical line timing source or external synchronization input/output (2.048 Mbit/s or 2.048 MHz); automatic timing source switchover based on fault or SSM; clock source options: line clock, external clock, free oscillation"
• "Standard Transmission Distance: 40 km; custom distances available beyond this range"
• "Management Channel: Based on DCC, E1, N×64K; enables reliable management and monitoring of IDM Integrated Multiplexer in standalone or across SDH ring networks; uses TCP/IP communication protocol"
• "Network Management Interface: F (10M/100M) port; Netguard management system provides five key functions: configuration, alarms, performance, maintenance, and security as per ITU-T recommendations; includes device network management cascading interface"
• "SNMP Support: Simple Network Management Protocol"
• "Power Supply: DC -48V and AC 220V; optional dual backup power: DC+DC, AC+AC, or AC+DC

---

Overview

The IDM Integrated Multiplexer is a compact, portable multimedia dispatch terminal that integrates SDH communication, mobile communication, radio communication, user telephones (FXS), and loop trunks (FXO). Through advanced digital voice processing and network encryption transmission technologies, it seamlessly connects two-way radios, VHF/UHF radios, HF radios, traditional PSTN phones (Public Switched Telephone Network), IP softphones, and traditional IP phones into a unified dispatch system network. It can be used standalone, paired with a dispatch console, or deployed as a remote cluster access gateway in large dispatch systems. It enables long-distance wireless two-way communication and bidirectional voice interoperability between wireless devices and wired terminals, effectively solving challenges in wireless network interconnection, dispatching, management, and large-scale networked dispatching. Suitable for environments such as border outposts, vehicles, and ships, it supports integration into existing dispatch systems for long-distance, large-scale wireless networking communication.

The IDM Integrated Multiplexer adopts full digital information processing technology, exceeding national performance standards. It supports both traditional PSTN telephone interfaces and SIP standard protocol and H.323 protocol IP phones. With strong configuration flexibility and broad application adaptability, it features a 19-inch 3U rack-mounted design.

Product Features

• Chassis structure: 19-inch standard 3U rack-mounted, plug-in design
• Provides 9 user slots, supporting insertion of 8FE Ethernet switch boards, 8E1 service boards, PDH boards, HD video codec boards, and various 64K service boards
• Supports WG300, PDH, E1, FXO/FXS, V.24/V.28/V.35, EM2/4, hotline, magneto telephone, high-fidelity audio, X.50, and 10M/100M Ethernet interfaces for voice and data services
• Uses IDM-RADIO2EM24 audio interface box with EM24 board to enable multi-channel radio access
• Provides wireless radio interface and GSM/CDMA interface
• Single chassis supports up to 240 dispatch channels
• Offers 5-in-1 2-wire audio card: 3U-8MVOICE; each card provides 8 two-wire audio channels; each channel can be configured as FXO/FXS/hotline/magneto/2100Hz magneto mode
• Provides 4 physically isolated EoS Ethernet groups; each group bandwidth: N×VC12 (N=1~50); each group includes 1 reserved expansion Ethernet port; used in conjunction with 8FE boards to expand Ethernet interface count
• Integrates SDH transmission, PBX voice switching, multimedia Command & Dispatch, PCM service access, and video access technologies
• Supports 2 SFP interfaces for STM-1 optical access; enables ring, chain, and star network topologies
• Provides 252×252 VC-12 level TDM cross-connection with no blocking; supports unidirectional, bidirectional, and broadcast services
• Single board provides 512×512 64K-level non-blocking cross-connection; supports unidirectional, bidirectional, and broadcast services
• Supports Synchronous Equipment Timing Source (SETS); optional tracking of optical line timing source or external synchronization input/output (2.048 Mbit/s or 2.048 MHz); automatic timing source switchover based on fault or SSM; clock source options: line clock, external clock, free oscillation
• Standard transmission distance without repeaters: 40 km; custom distances available beyond this range
• Provides management channel based on DCC, E1, and N×64K; enables reliable management and monitoring of IDM Integrated Multiplexer in standalone or across SDH ring networks; uses TCP/IP communication protocol
• Provides F (10M/100M) network management interface; managed via Netguard system to deliver five key functions as per ITU-T recommendations: configuration, alarms, performance, maintenance, and security; includes device network management cascading interface
• Supports SNMP simple network management protocol
• Power supply: DC -48V and AC 220V; optional dual backup power: DC+DC, AC+AC, or AC+DC

Typical Configuration

The IDM Integrated Multiplexer can support up to 12 wireless radio devices, including HF (shortwave), VHF (UHF) single-sideband radios, 350M and 800M cluster two-way radios.
The trunk interfaces can be:

1. GSM/CDMA interface
2. WAN port supporting electrical interface (RJ45) or optical interface (FC) (for IP phone access channel)
3. Standard telephone trunk interface
4. Standard magneto interface or 2100Hz magneto interface
   The default number of interfaces for connecting standard telephones or wired intercom terminals is 20 (10 per module).

Functional Description

1. Full intercom capability among all wired intercom terminals
2. All wired intercom terminals and telephones can monitor and speak to any one or multiple wireless clusters
3. Extension phones can dial external calls via standard telephone interface, GSM/CDMA, or IP trunk
4. Any two or more wireless radios or clusters can be bridged
5. Supports group call function: when an external call arrives, all phones in the same group call ring simultaneously; any phone that answers stops the ringing of others. If two or more external calls arrive simultaneously, the highest priority call is answered first, and other phones continue ringing
6. External calls are always answered in priority order; for calls of equal priority, they are answered in the order of ring arrival
7. Typically, wired intercom terminals have higher priority than internal phones; high-priority users can interrupt low-priority users' cluster transmission rights

Application Example 1

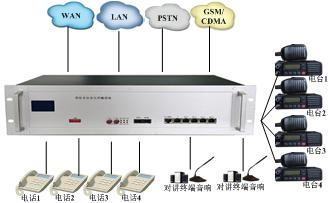

As shown in the figure, a single IDM Integrated Multiplexer is used with peripheral terminals and trunk lines to build a dispatch system.
Peripheral terminals include: wireless clusters, shortwave radios, two-way radios, telephones, etc.
Trunk lines include: PSTN network, GSM/CDMA mobile operator network, VOIP network, etc.

Application Example 2

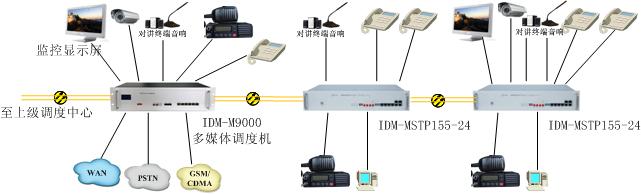

As shown in the figure, the IDM Integrated Multiplexer is used with peripheral terminals and trunk lines to build a dispatch system. The dispatch service is extended to remote locations via SDH optical interface and optical-electrical integrated terminal, greatly expanding the application range. It enables video calls between non-adjacent nodes.
Peripheral terminals include: wireless clusters, shortwave radios, two-way radios, telephones, etc.
Trunk lines include: PSTN network, GSM/CDMA mobile operator network, VOIP network, etc.

Application Example 3

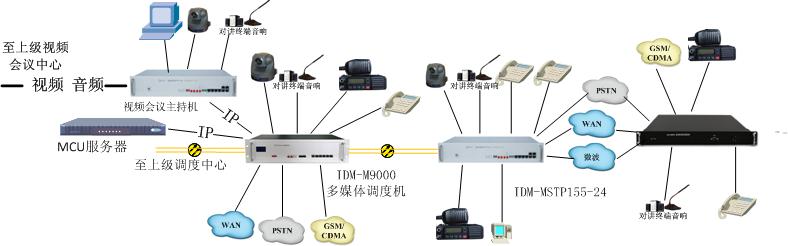

As shown in the figure, the IDM Integrated Multiplexer is used with peripheral terminals and trunk lines to build a dispatch system. The dispatch service is extended to remote locations via SDH optical interface and optical-electrical integrated terminal, greatly expanding the application range. It enables video calls between non-adjacent nodes.
A MCU server and video conference terminal are configured at the dispatch center to establish a local video conference system, and can connect video and audio ports to an upper-level video conference center.
Peripheral terminals include: wireless clusters, shortwave radios, two-way radios, telephones, etc.
Trunk lines include: PSTN network, GSM/CDMA mobile operator network, VOIP network, etc.

Application Example 4

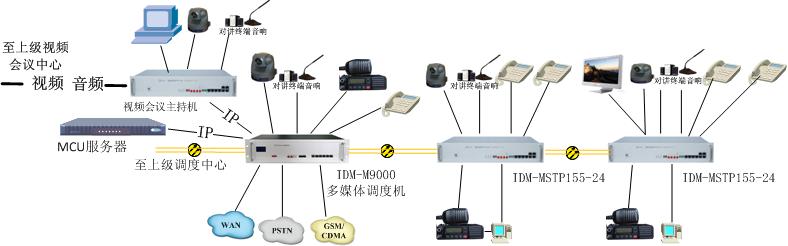

As shown in the figure, the IDM Integrated Multiplexer is used with peripheral terminals and trunk lines to build a dispatch system. The dispatch service is extended to remote locations via SDH optical interface and optical-electrical integrated terminal, greatly expanding the application range. It enables video calls between non-adjacent nodes.
In remote areas beyond the coverage of the IDM Integrated Multiplexer, an IDM-M2000 dispatch terminal is configured to further extend the dispatch management range.
A MCU server and video conference terminal are configured at the dispatch center to establish a local video conference system, and can connect video and audio ports to an upper-level video conference center.
Peripheral terminals include: wireless clusters, shortwave radios, two-way radios, telephones, etc.
Trunk lines include: PSTN network, GSM/CDMA mobile operator network, VOIP network, etc.

3U Board Selection List

Board List	3U-10FXS Board	3U-FXO Board	3U-8E1 Service Board
Physical Image
Function Description	Provides10 FXS interfaces	Provides10 FXO interfaces	Provides8 E1 interfaces
Board List	3U-PDH Board	3U-8V.24 Board	3U-HDVcodec (HD Video Codec Board)
Physical Image
