I. Overview

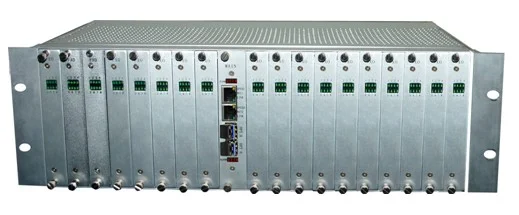

The IDM 120N-GP Ultra-Broadband Integrated Service Optical Fiber Multiplexing Equipment is one of the PCM integrated service transmission equipment series designed by our company using large-scale integrated circuit technology. This equipment utilizes standard optical fiber transmission channels (G.703 standard) and adopts the PCM30/31 format, providing dual-fiber backup and directly offering 64K service interfaces, wire-speed 1000M Ethernet, E1, and various other user interfaces. Additionally, the equipment features easy installation and is capable of meeting the requirements of various application environments.

II. Product Features

Ø Standard 19-inch 3U chassis architecture for easy installation;

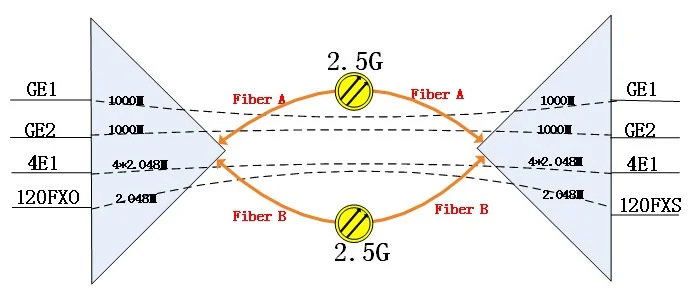

Ø Provides 2 2.5G SFP optical interfaces with 1+1 optical port protection;

Ø Offers 120 standard-defined FXO/FXS interfaces;

Ø Provides 2 independent wire-speed 1000M Ethernet interfaces;

Ø Supports 4 groups of E1 interfaces in transparent transmission mode;

Ø Features comprehensive function control switches and alarm indication functions.

III. Technical Specifications

Optical Interface

Interface Type	SFP	Fiber Mode	Single-mode(Multi-mode optional)
Fiber Rate	2.5Gbps	Wavelength	1310nm/1550nm
Transmit Power	-1~-3dBm	Receiver Sensitivity	Better than-24dBm

E1 Interface

Line Rate	2048Kbps	Line Code	HDB3
Standard Protocol	SupportsITU-T G.703	Impedance	75Ω
Frame Structure	PCM30/31	Mode	Transparent

Ethernet

Interface Type	RJ45	Transmission Rate	10M/100M/1000M
Standard Protocol	SupportsIEEE802.3	Operating Mode	Full/Half Duplex/Auto-Negotiation

FXO/FXS Interfaces

Audio Range	300Hz~3400Hz	Impedance	Three-element Complex Impedance200Ω+560Ω//0.1μF
Companding Law	ITU G.711A-law	Loop Current	25mA/channel

Power Supply and Power Consumption

Power Supply Mode

DC-48V /AC 220V/Dual Power Supply

Total Power Consumption

≤100W

Environmental Conditions

Operating Temperature

0ºC～40ºC

Humidity

≤90%（non-condensing）

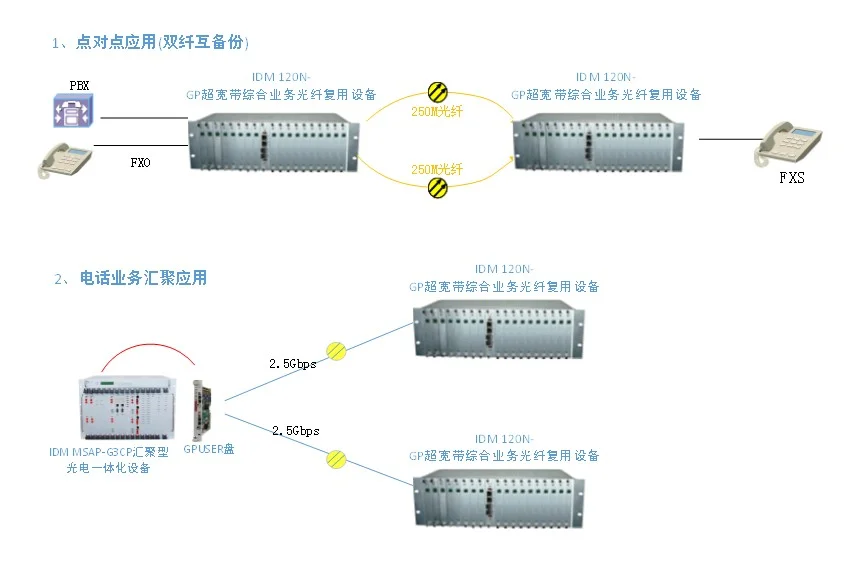

4. Typical Applications
