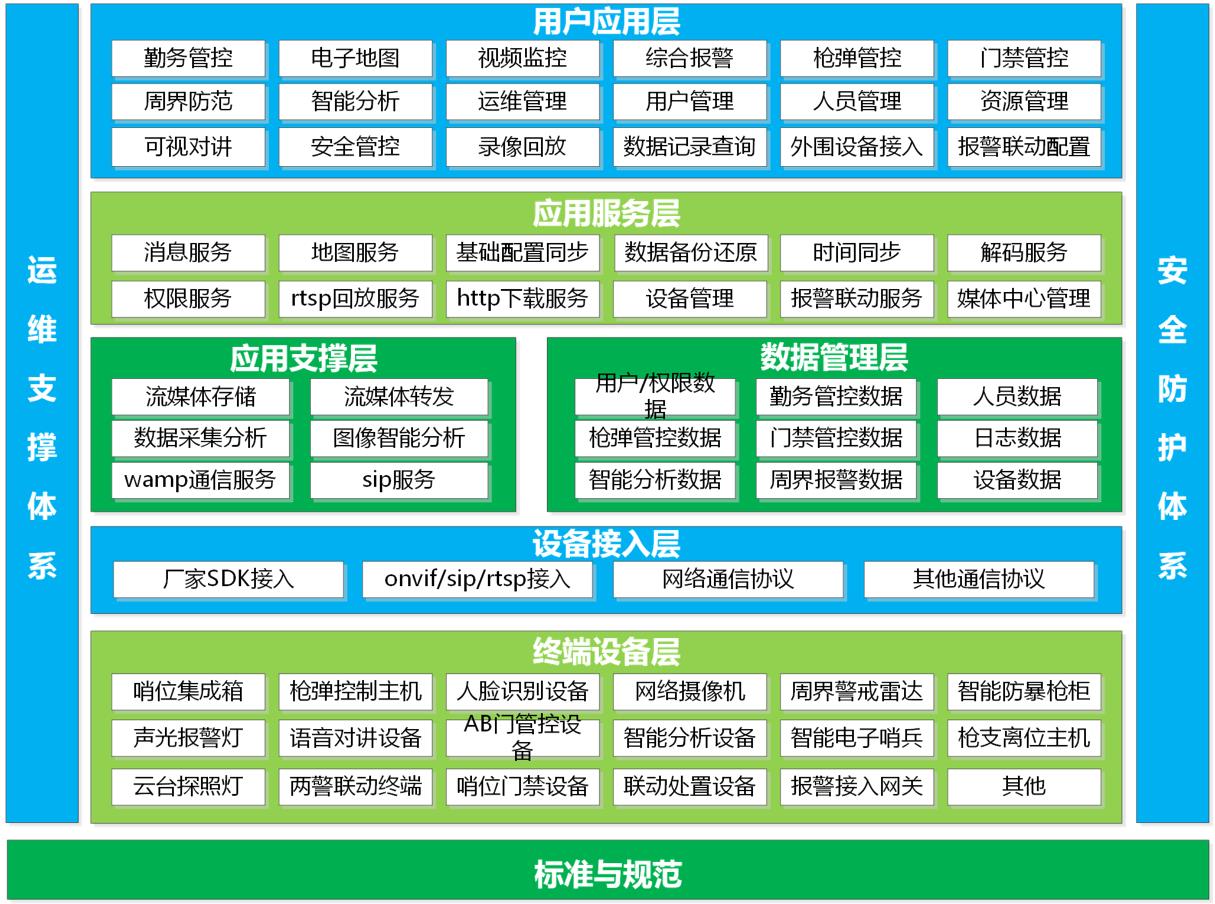

Smart Pillar System Architecture

u User Application Layer: Implements the system human-machine interaction interface, enabling user interaction and data display;

u Application Service Layer: Encapsulates system business logic, providing backend logic and data processing services for applications;

u Application Support Layer: Provides streaming media, data collection, and intelligent analysis infrastructure support to upper-layer business applications;

u Data Management Layer: Stores and manages system data, forming data access and control interfaces for upper-layer applications;

u Device Access Layer: Utilizes SDK interfaces or protocols provided by devices to enable system-device interaction;

u Terminal Device Layer: Various information-based terminal devices of the Armed Police Force;

u Operation and Maintenance System: Real-time monitoring, alarming, and logging of device status;

u Security System: Builds a platform security protection system in accordance with the WJ Force security protection requirements;

u Standards and Specifications: Complies with relevant WJ and industry standards and specifications;
