Optical Terminal Data Interface Problems and Solutions

Optical Terminal To meet the needs of security surveillance, various system devices (matrix, DVR, decoder) provide RS-485 data interfaces. The advantages of this data interface format are long transmission distance, strong load capacity, and the ability to form a four-wire full-duplex communication bus, allowing any two devices on the line to achieve bidirectional communication, whereas a four-wire RS-422 bus can only achieve bidirectional communication between master and slave, not between slaves. The disadvantage of the optical terminal is that it has an enable pin in a tri-state form, which can cause communication instability or even a "stuck" phenomenon.

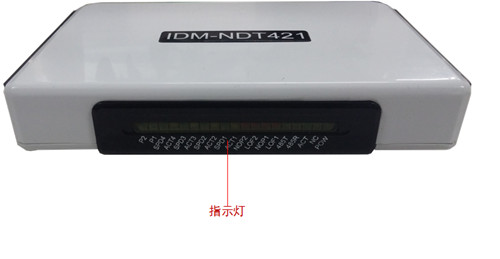

If communication failure (loss of control) occurs, check the following causes:

1. Check for control signals: Use a multimeter on the AC 10V range to measure the RS-485 output port of the controller (matrix, DVR, etc.) to see if there is a control signal output.

2. Determine whether the RS-485 interface of the optical terminal is normal. If the UA-B voltage is zero, it is considered abnormal. The PTZ rotating erratically and being uncontrollable is caused by two reasons: a) The RS-485 port A+ and B- are reversed; b) The system impedance is severely mismatched.
