Advantages of MSTP-based 300-Channel Dual Main Control Large-Capacity SDH Telephone Optical Terminal

The IDM MUX300 SDH Optical Terminal is a new-generation optoelectronic integrated transmission device based on MSTP and PCM technologies, integrating MSTP transmission and PCM multi-service access functions. The IDM MUX300 SDH Optical Terminal meets the needs of users for fiber transmission and access of both broadband and narrowband services, utilizing SDH ring network protection for more reliable communication protection. The IDM MUX300 SDH Optical Terminal can directly connect remote telephones, computers, cameras, and other terminals, adapting to various network topologies. The main advantages of this SDH Optical Terminal include: providing 252×252 VC-12 level non-blocking cross-connect, supporting unidirectional, bidirectional, and broadcast services. The IDM MUX300 SDH Optical Terminal can provide 4 groups of physically isolated EoS Ethernet, each with a bandwidth of N×VC12 (N=1~50) configurable; each group also provides 1 reserved extended Ethernet port; when used with the 8FE board, the number of extended Ethernet interfaces can be increased. If you need the IDM MUX300 SDH Optical Terminal equipment, you can contact the sales manager of Beijing Ruiguang Jiyuan Digital Technology Co., Ltd., Xu Fei: 18710178699

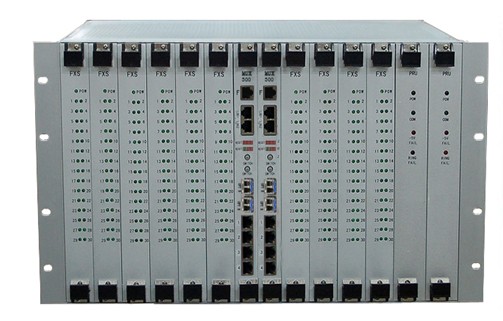

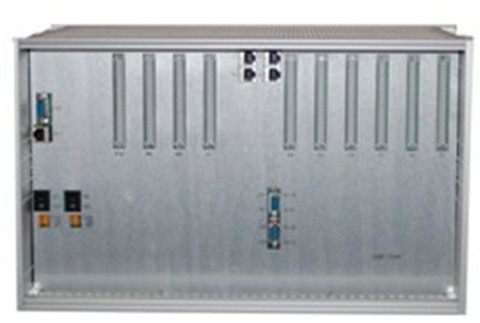

IDM MUX300 front and rear panel diagram
