Vehicle MESH Networking Mobile Voice Communication System

This solution is primarily used to provide comprehensive high-speed MESH wireless communication coverage and system platforms and functions such as command & dispatch for field communication vehicles and individual soldiers, enabling efficient audio/video converged command & dispatch functions.

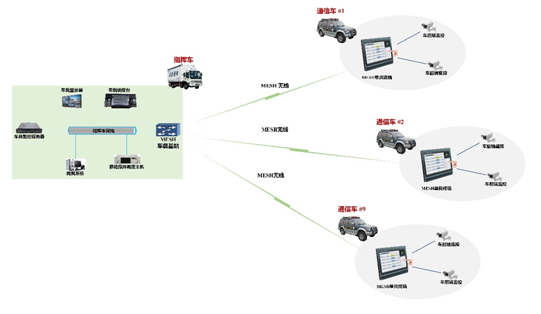

The system topology is shown below:

System features are as follows:

(1). The command vehicle serves as the core of the entire mobile communication system, equipped with a MESH vehicle-mounted base station device, with the rear end connected to the vehicle-mounted command & dispatch system, video surveillance system, etc.;

(2). The other 9 communication vehicles are equipped with MESH individual soldier terminals to achieve wireless interconnection with the MESH vehicle-mounted base station of the command vehicle, with their vehicle-mounted video surveillance terminals and other devices connected;

(3). Voice intercom, video surveillance backhaul, and other functions are realized between the command vehicle and communication vehicles; intercommunication between communication vehicles can also be achieved through permission management.
