Converged Communication Vehicle Command Center Construction

Vehicle Command Center Construction (Mobile Dispatch Node)

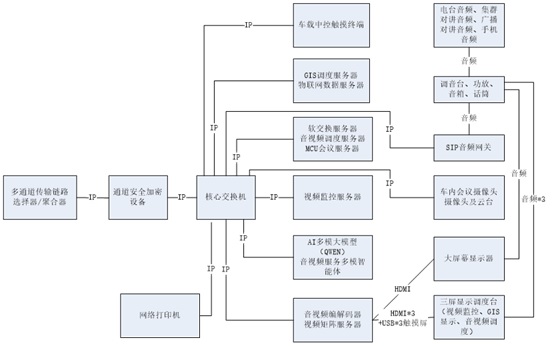

As a mobile dispatch hub, the vehicle command center is mainly used for on-site command in scenarios such as launch sites and emergency response. It requires capabilities including rapid deployment, multi-link communication, and full-featured dispatch, and is built based on the IDM mobile converged communication command platform technology.

4.2.1 Core Equipment Configuration

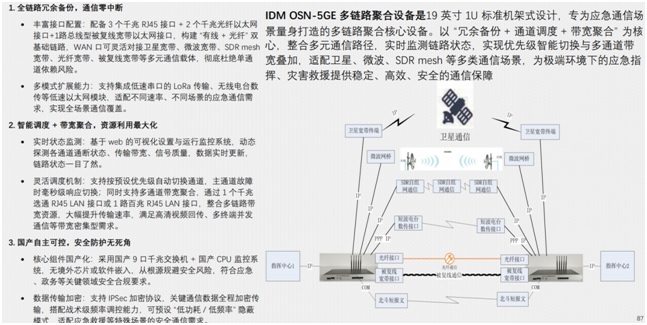

IDM OSN-5GE multi-link aggregation device: Deploy a 19-inch 1U standard rack-mount IDM OSN-5GE device, equipped with 3 Gigabit RJ45 interfaces and 2 Gigabit fiber Ethernet interfaces, flexibly interfacing with diverse communication carriers such as satellite broadband, microwave, SDR mesh, and fiber optics; supports integrated LoRa transmission, radio data transmission modules, and can be upgraded with 4G/5G modules to expand communication capabilities; features multi-link intelligent aggregation and priority switching (millisecond-level response on main channel failure), supports IPSec encryption and low-power covert mode, with an IP65 waterproof chassis adapted to complex vehicle environments, operating temperature range of -10°C to 65°C.

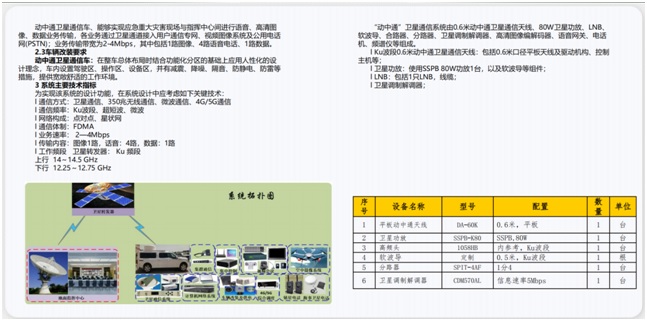

Vehicle satellite broadband terminal: Configure a vehicle satellite broadband terminal to achieve long-distance high-speed communication in scenarios without public network/fiber coverage, ensuring real-time interconnection with the base command center.

HF radio: Deploy HF communication equipment to achieve emergency relay communication in areas without network coverage, ensuring command instruction delivery in extreme scenarios.

IDM MESH ad hoc network device: Equipped with IDM MESH ad hoc network device to achieve local wireless interconnection between the vehicle command center and on-site portable terminals, surveillance cameras, and other devices, supporting automatic terminal discovery and rapid networking.

Vehicle dispatch system: Deploy audio/video dispatch software identical to that of the base command center to achieve functions such as on-site terminal dispatch, conference organization, and command issuance, supporting collaborative dispatch with the base command center.

HD audio/video conferencing terminal: Configure the IDM MCC680 centerless ad hoc network dual-mode audio/video conference terminal and the MCC660 vehicle-mounted audio/video communication terminal. The MCC680 terminal features an ultra-thin body adapted to vehicle space, supporting centerless ad hoc network for rapid on-site conference setup; the MCC600-M terminal adopts vehicle-specific design with anti-vibration and wide-temperature adaptation, supporting audio interface for HF radio interconnection, IP interface for surveillance camera connection, and external handset connectivity, interconnecting with the base command center via 4G/5G VPN encrypted channels.

IDM MCC700 vehicle audio processing mixer and speaker system: Achieve multi-channel audio signal processing and clear playback in vehicle scenarios, ensuring clear and audible on-site command voice.

Vehicle HD large screen: Configure a vehicle HD large screen with anti-vibration and anti-glare interference capabilities, achieving synchronized display of on-site surveillance images, dispatch information, and IoT data.

IDM VEH2000 vehicle central control device: Achieve centralized control and management of vehicle-mounted equipment, supporting touchscreen operation and remote management, adapted to vehicle voltage, and supporting multi-device protocol interfacing.

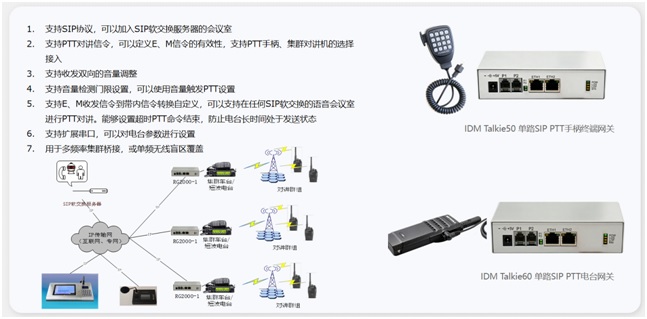

IDM Talkie50 vehicle handset gateway and IDM Talkie90 desktop SIP microphone: Achieve on-site voice intercom and dispatch command issuance, supporting interconnection with traditional walkie-talkies and the base command center.

Vehicle HD PTZ camera: Equipped with a vehicle HD PTZ camera supporting in-vehicle and out-of-vehicle image capture for on-site surveillance and conferencing; integrated with YOLO video analysis algorithm to assist target tracking at rocket launch sites.

Vehicle IoT terminal (position, temperature/humidity, gas sensors): Real-time collection of vehicle and on-site environmental data, with high positioning accuracy, temperature/humidity detection accuracy of ±0.5°C/±5%RH, supporting monitoring of toxic gases such as gas, with data uploaded to the base command center IoT server.

MCC7000 series 6-channel intercom recording device: Deploy this device to achieve simultaneous recording of 6 channels of calls/intercom, supporting WAV/MP3 dual-format storage, with a standard 1TB hard drive meeting long-duration recording requirements; featuring AI voice transcription with accurate recognition of dialects and industry terminology, with recording files backed up to the base command center server via network; supporting remote WEB management and real-time monitoring, and can be directly connected to the dispatch console for dispatch operations, achieving intercommunication and forwarding with audio devices such as radios.
