Communication Command Vehicle Solution

📅Apr 30, 2026
Brief：Satellite communication system: Transmits RF signals to satellites and receives satellite signals, providing channels for voice, image, and data transmission. Audio/video access system: Collects, stores, and exchanges audio/video signals at the mission site, and uploads them to the ground command center via satellite channels. Converged communication network system: Can form a local area network on the communication vehicle, access the INTERNET and user private networks through satellite transponders and ground stations, and also connect to ground fiber optic networks, wireless microwave networks, MESH broadband ad hoc networks, etc. Trunked communication system: Centered on the communication vehicle, it enables wireless voice command and dispatch around it. Individual soldier video transmission system: Real-time upload of images captured by microwave individual soldiers and microwave emergency surveillance stations to the communication vehicle, and then via satellite channels or 4G/5G public network channels.
Communication command vehicle solutionCommand vehicle solutionVehicle-mounted communication solutionCommunication command vehicle planCommand vehicle communication solution

title: Communication Command Vehicle Solution
industry: Communication Application
tags:

  • Communication Command Vehicle Solution
  • Command Vehicle Solution
  • Vehicle-mounted Communication Solution
  • Communication Command Vehicle Plan
  • Command Vehicle Communication Solution
    images:
  • /images/imports/img-f08de218.jpg
  • /images/imports/img-c506e09c.jpg
  • /images/imports/img-a81a7291.jpg
    keywords: Communication Command Vehicle Solution,Command Vehicle Solution,Vehicle-mounted Communication Solution,Communication Command Vehicle Plan,Command Vehicle Communication Solution
    brief: Satellite communication system: Transmits RF signals to satellites and receives satellite signals, providing channels for voice, image, and data transmission. Audio/video access system: Collects, stores, and switches audio/video signals at the mission site, uploading them to the ground command center via satellite channels. Converged communication network system: Can form a local area network on the communication vehicle, access the INTERNET and user private networks through satellite transponders and ground stations, and also connect to ground fiber networks, wireless microwave networks, MESH broadband ad hoc networks, etc. Trunking communication system: Centered on the communication vehicle, realizing wireless voice command dispatch around it. Individual soldier video transmission system: Enables real-time upload of images captured by microwave individual soldiers and microwave emergency surveillance stations to the communication vehicle. Through satellite channels or 4G/5G public network channels,
    slug: communication-command-solution
    publishDate: 2026-04-30
    featured: false

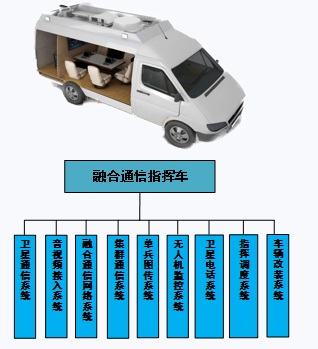

  1. Satellite communication system: Transmits RF signals to satellites and receives satellite signals, providing channels for voice, image, and data transmission.

  2. Audio/video access system: Collects, stores, and switches audio/video signals at the mission site, uploading them to the ground command center via satellite channels.

  3. Converged communication network system: Can form a local area network on the communication vehicle, access the INTERNET and user private networks through satellite transponders and ground stations, and also connect to ground fiber networks, wireless microwave networks, MESH broadband ad hoc networks, etc.

  4. Trunking communication system: Centered on the communication vehicle, realizing wireless voice command dispatch around it.

  5. Individual soldier video transmission system: Enables real-time upload of images captured by microwave individual soldiers and microwave emergency surveillance stations to the communication vehicle. Through satellite channels or 4G/5G public network channels, images can be uploaded to the ground command center in real time. The coverage communication distance is 1-3 kilometers.

  6. Satellite phone system: Equipped with Iridium phones and Inmarsat satellite phones. When the mobile satellite communication vehicle, stationary satellite communication command vehicle, and 4G/5G public network channels are interrupted or unavailable, voice command dispatch and calls can be conducted via satellite phones.

  7. UAV monitoring system: In areas inaccessible to personnel, UAVs can collect audio/video information within a rescue radius of 8-10 kilometers.

  8. Dispatch command system: Adopts an audio/video system based on SIP softswitch to perform dispatch operations on audio/video data (forced release, barge-in, transfer, monitor, conference, roll call, polling, etc.), recording, video surveillance, video conferencing, and other dispatch operations.

  9. Vehicle modification system: Performs reasonable layout and modification of the vehicle.

Roof PTZ camera parameters:

Roof PTZ camera parameters:

l Configured with Sony 1/3″ Exmor CMOS HD camera module, 2 million pixels, 20x optical zoom with image stabilization

l Nationally certified IP66 waterproof rating, effectively preventing lens fogging and compartment water ingress

l Rugged die-cast aluminum housing, unique highly integrated design, compact structure, refined appearance, compliant with national vehicle-mounted vibration standards

l Wide operating temperature range, resistant to high temperatures and extreme cold

l Particularly suitable for vehicle-mounted video requirements in military, public security, firefighting, emergency, road administration, satellite communication, and other industries

Ultra-quiet generator parameters:

Ultra-quiet generator parameters:

  1. Speed 1500 rpm, long service life

  2. Polyester powder-coated aluminum housing, excellent noise reduction effect

  3. Brushless alternator

  4. Automatic voltage regulator

  5. Main line installed with circuit breaker

  6. Flat base plate for easy installation

  7. Aluminum radiator for high-temperature environments with ultra-quiet clutch fan

  8. Dry air filter, spin-on fuel and oil filters

  9. 12V DC starter motor, 30A 12V DC charging alternator

  10. High water temperature and low oil pressure safety shutdown

  11. Complete critical exhaust silencer with stainless steel exhaust bellows

  12. One-touch start/stop switch with status indicator light

  13. Single-side service door for easy inspection

  14. 12V DC fuel pump

  15. Notched housing design for easier connection of AC and DC lines to external fuel and battery ports

Fuel and battery port connection
