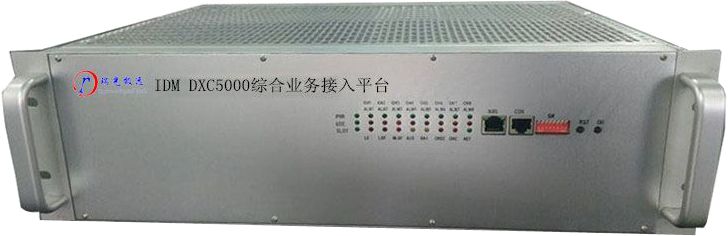

8xE1 14-Slot High-Capacity Timeslot Cross-Connect PCM Equipment

IDM DXC5000****Timeslot Cross-Connect PCM Equipment is one of the PCM timeslot cross-connect devices designed by our company using dedicated large-scale integrated circuits. It completes the connection between user terminal devices or between user terminal devices and the public switched telephone network via 2M transmission media. This PCM equipment can utilize 8 standard E1 transmission channels (G.703 standard), adopting the PCM30/31 format, and directly provides various user interfaces such as voice, data, and image. It also features non-blocking timeslot cross-connect capability between the 8 E1 groups and between all user interfaces. Additionally, this PCM equipment supports multiple clock modes to meet the clock requirements of various application environments.

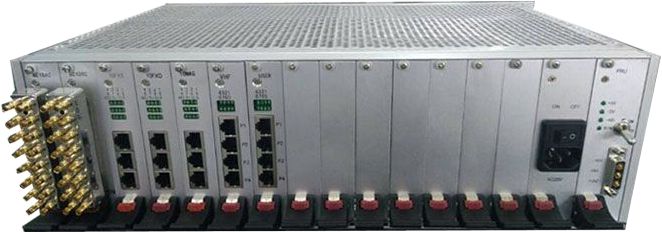

IDM DXC500 PCMEquipment can expand the voice interface capacity to 240 channels through the 8 E1 ports on the main control card, and key units can adopt dual-card hot backup. It provides a full range of 64K and N*64K interfaces, with service types and quantities flexibly configurable within the chassis. Each slot can provide 8 or 10 channels of 64K services; supports FXS/FXO, magneto, 2/4-wire E&M, RS232/RS422/RS485, and GSM/CDMA services. If you are interested in this PCM equipment, please contact Raytrans

8xE1 14-Slot High-Capacity Timeslot Cross-ConnectPCM Equipment
